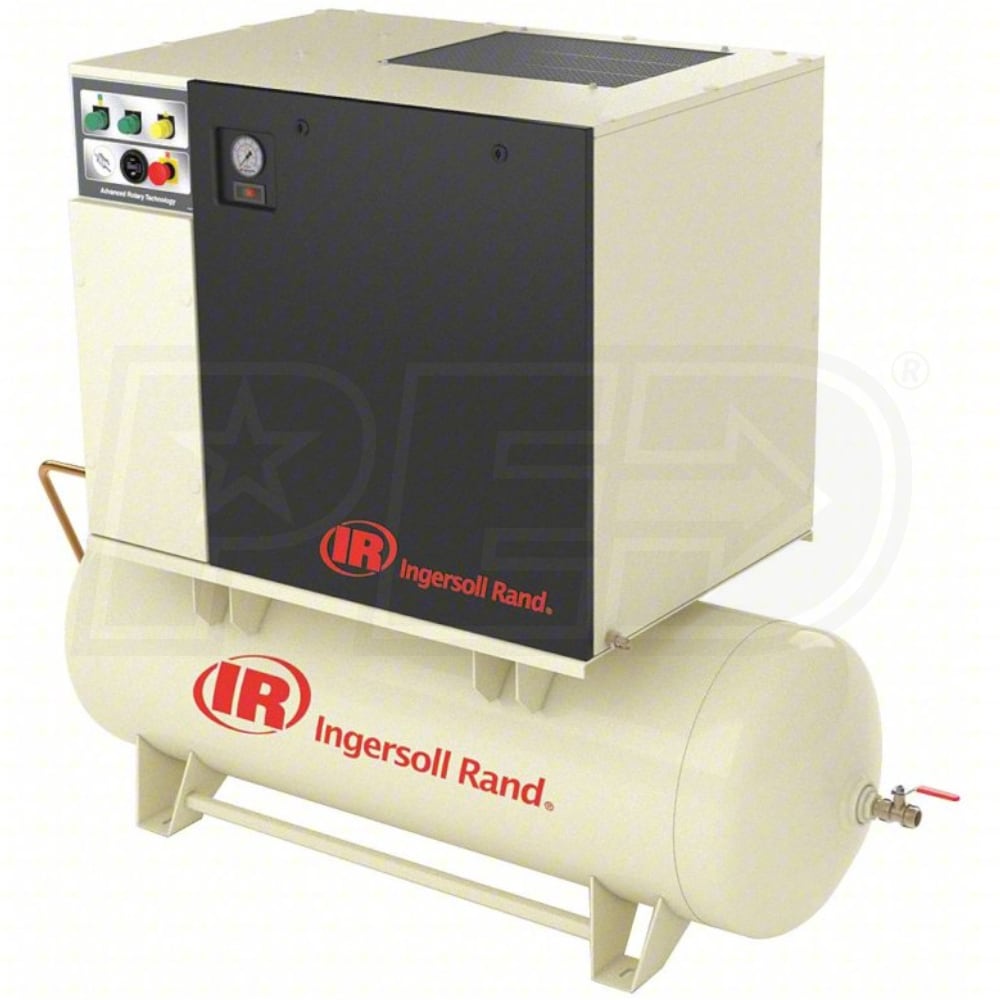

Ingersoll Rand 10-HP 80-Gallon Rotary Screw Air Compressor (208V 3-Phase 150PSI)
Ingersoll Rand 10-HP 80-Gallon Rotary Screw Air Compressor (208V 3-Phase 150PSI)
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
34
CFM Rated @ 150 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
34 CFM Rated @ 150 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Energy Efficient
- More air for less horsepower reducing yearly energy cost
- Smart Energy Controls
- Eliminate running unloaded by cycling the compressor on/off
- Whisper Quiet Operation
- Sound levels as low as 68dBA let you work close by
- Compact Footprint Design
- Frees up valuable floor space and reduces install costs
- Fewer Connections
- Eliminates leaks and pressure drops- maximizing reliability
- Simple Diagnostics
- Displays operating status and run hours- reducing downtime
- Poly-V Belt Drive
- Drive system eliminates belt stretch and increases air output
- High-Efficiency Filter
- Clean air quality to run tools and equipment long term
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
34
CFM Rated @
150 PSI
Max PSI
150 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
925 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384033190
Grade
Style
CFM
34
CFM Rated @ 150 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
34 CFM Rated @ 150 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Energy Efficient
- More air for less horsepower reducing yearly energy cost
- Smart Energy Controls
- Eliminate running unloaded by cycling the compressor on/off
- Whisper Quiet Operation
- Sound levels as low as 68dBA let you work close by
- Compact Footprint Design
- Frees up valuable floor space and reduces install costs
- Fewer Connections
- Eliminates leaks and pressure drops- maximizing reliability
- Simple Diagnostics
- Displays operating status and run hours- reducing downtime
- Poly-V Belt Drive
- Drive system eliminates belt stretch and increases air output
- High-Efficiency Filter
- Clean air quality to run tools and equipment long term
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
34
CFM Rated @
150 PSI
Max PSI
150 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
925 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384033190
Product Specs
+−
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
34
CFM Rated @
150 PSI
Max PSI
150 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
925 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384033190
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Gabrielle, the Air Compressor Expert
+−
How much oil and what kind is needed to fill this compressor?
Robert B.
from West Virginia
July 31, 2019
Answer
Ingersoll Rand recommends their Ultra Plus lubricant: 23352191. The 10-HP UP6 takes 3 liters. You can find this information on page 32 of the compressor manual.
