Industrial Air IV5038055 - 5-HP 80-Gallon Two-Stage Air Compressor With Starter (230V 3-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Industrial Air IV5038055.

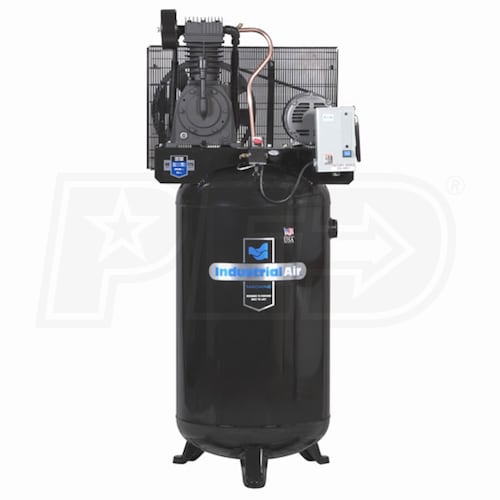

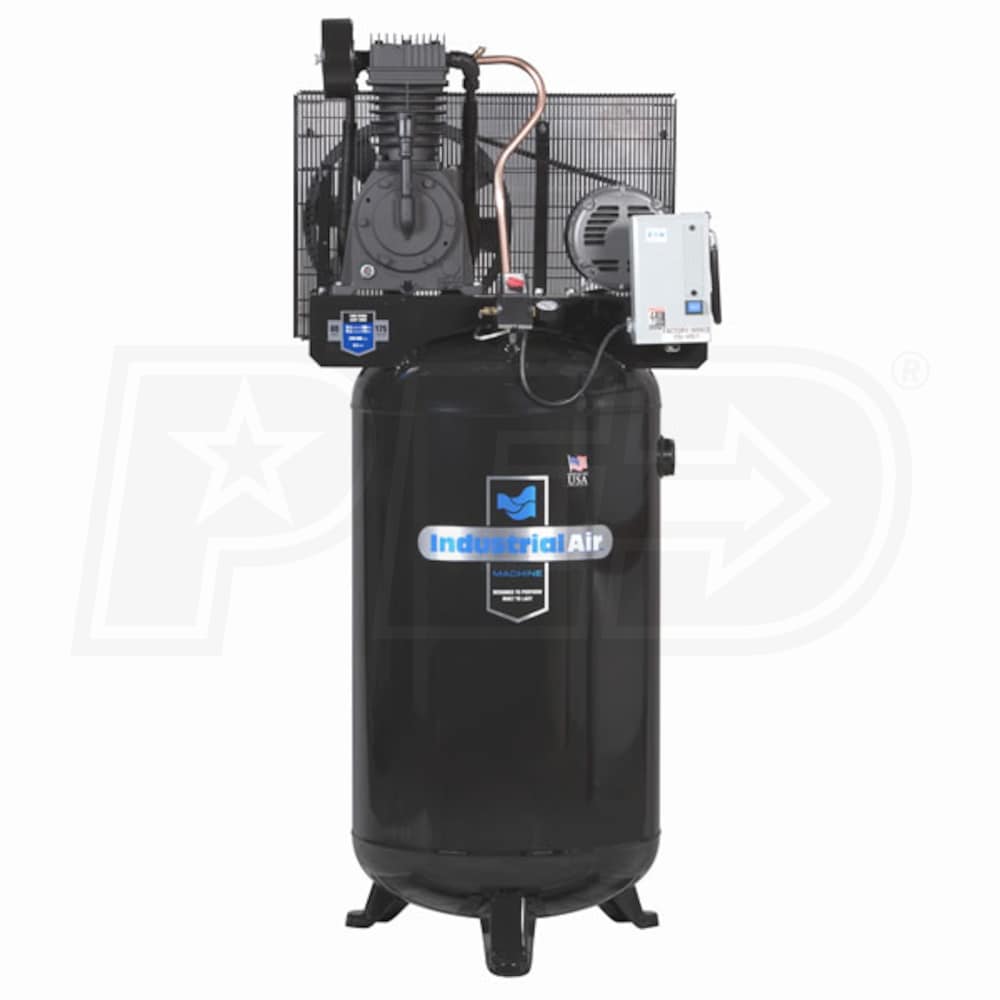

Industrial Air 5-HP 80-Gallon Two-Stage Air Compressor With Starter (230V 3-Phase)

Close
Industrial Air Power Equipment and Accessories
Model: IV5038055
(Based on expert analysis, manufacturer ratings and customer reviews)

5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
3 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 4-7 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$1,799.00
$1,619.10

StoreShippingPriceShop

Free Freight$1,619.10
No Sales Tax*
(Except IL)
Buy

Free Freight$1,619.10
No Sales Tax*
(Except IL)
Visit Site

$1,621.92
(as of 07:37 CST - Details)
Sales Tax Extra
Visit Site

$1,646.49
Sales Tax Extra
Visit Site

$1,799.99
No Sales Tax*
(Except CA,GA)
Visit Site
  • Features
  • Specs
  • 1
    Q&A
  • 3
    Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
17
CFM Rated @ 100 PSI
Tank Size
80
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

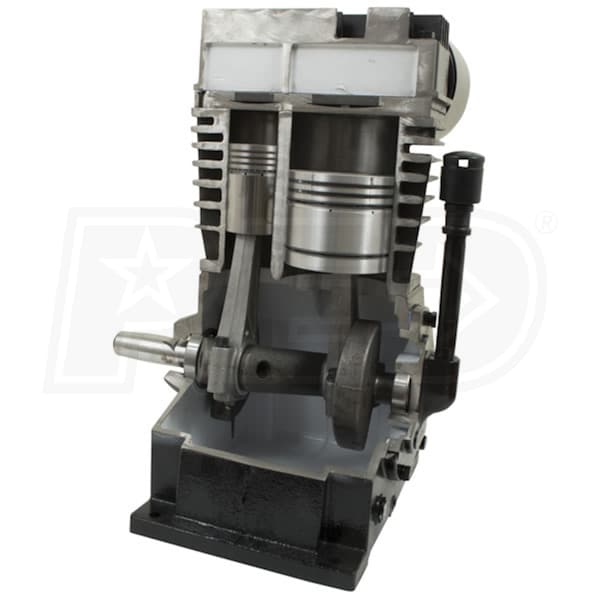

Patented 2-Stage Pump Design
Runs cooler, lasts longer

Patented Piston Design
Improved compression efficiency

Patented Asymmetrical Cooling Fins
Draws heat away from the precision bored cylinders

Patented Cast Iron Flywheel
Large, extended fins improve pump cooling & lower RPMs

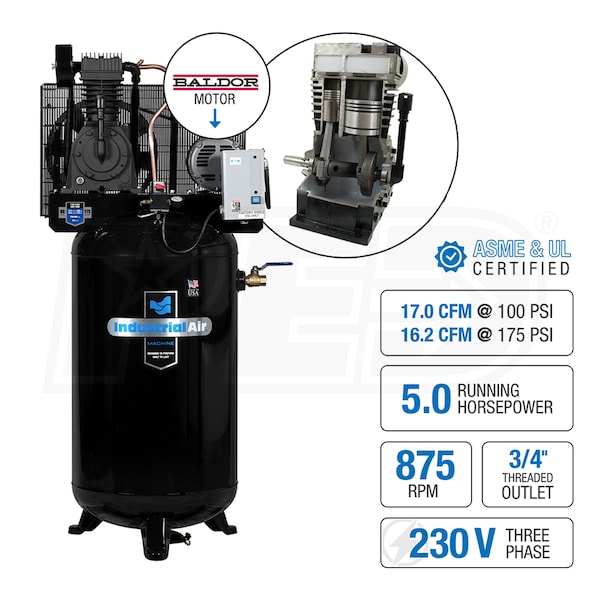

Baldor Industrial Class Electric Motor
High quality 4 pole, 1725 RPM, UL certified & NEMA rated
Wires easily into your 230 or 460 volt, three phase system

Pre-Wired Magnetic Starter
Saves time and money

80 Gallon ASME Tank
Enough power to operate more than 1 tool at a time
17 CFM at 100 PSI; 16.2 CFM at 175 PSI; 3/4" air outlet

Unique Metal Belt Guard Design
Improves pump cooling by as much as 60% over other designs

2 Year Limited Factory Warranty
Purchase & use of maintenance kit doubles the pump warranty
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
559 Pounds
Product Length
38 Inches
Product Width
29 Inches
Product Height
76 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
846212008119
Model
IV5038055
Need Help? Call Our Experts.
View Accessories For This Product.
Read Reviews
How-To Library
  1 Question
Q: I understand three phase, but can this be wired 240v single phase?
by Vic Lippa from Florida on July 03, 2016

A: No, a 230V single phase model must be ordered. Here's the link to that model:
http://www.aircompressorsdirect.com/Industrial-Air-IV5018055-Air-Compressor/p11404.html?preferred_placement=1
by Jim, Product Expert

Industrial Air IV5038055 Reviews & Ratings
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Pros
I'd Buy It Again (2)
High Quality (2)
Price (1)
Easy To Use (1)
Quiet (1)
Cons
First one damaged in shi... (1)
100% of respondents would recommend this product to a friend
3 Reviews  Sort by

Jim, the Air Compressor Expert
Power Equipment Expert

Product Expert
Total Reviews
234 Reviews
Total Helpful Votes
3726 Helpful Votes
Power Equipment Direct Recommended

IV5038055

Industrial Air has several patented technical developments that have earned this unit's place on our Recommended list.

The pump will run longer & cooler with improved compression efficiency thanks to its patented pump and piston design. Cooler compressors last longer, and durability is increased by the patented asymmetrical cooling fins, along with the patented cast iron flywheel.

Even the belt guard contributes to the cooling process- it's up to 60% more efficient than other designs.... more
Jim Recommends This Model
Was this review helpful?
117
Steve W.
Parkland Health Center Farmingto, MO
Purchased from Power Equipment Direct
Purchased 9/27/16
Most Helpful Positive Review
REVIEWED
NOV.
11
2016
5 out of 55 out of 55 out of 55 out of 55 out of 5
Very Pleased With This Compressor
Using this compressor to back up our current HVAC compressor and for running shop tools, thus far fits our use perfectly.
Pros: Durable, Quiet, High Quality, I'd Buy It Again
Cons: First one damaged in shipping Recommend more secure packaging for
Steve Recommends This Industrial Air Product
Was this review helpful?
01
Wallace F.
Revere, MA
Purchased from Power Equipment Direct
Purchased 1/27/17
REVIEWED
FEB.
21
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
Nice Compressor...easy Install
Easy install with oil already in machine...Started up no problems...all is well...liked that they included rubber pads for mounting.
Pros: Easy To Use, Price, High Quality, I'd Buy It Again
Wallace Recommends This Industrial Air Product
Manufacturer Response
Brand Rep
Wallace,
If you get a chance to send pictures of your install we would love to see it. Glad you found our product easy to use and we exceed your expectations! Your opinion is important to us.
more
Was this review helpful?
02
