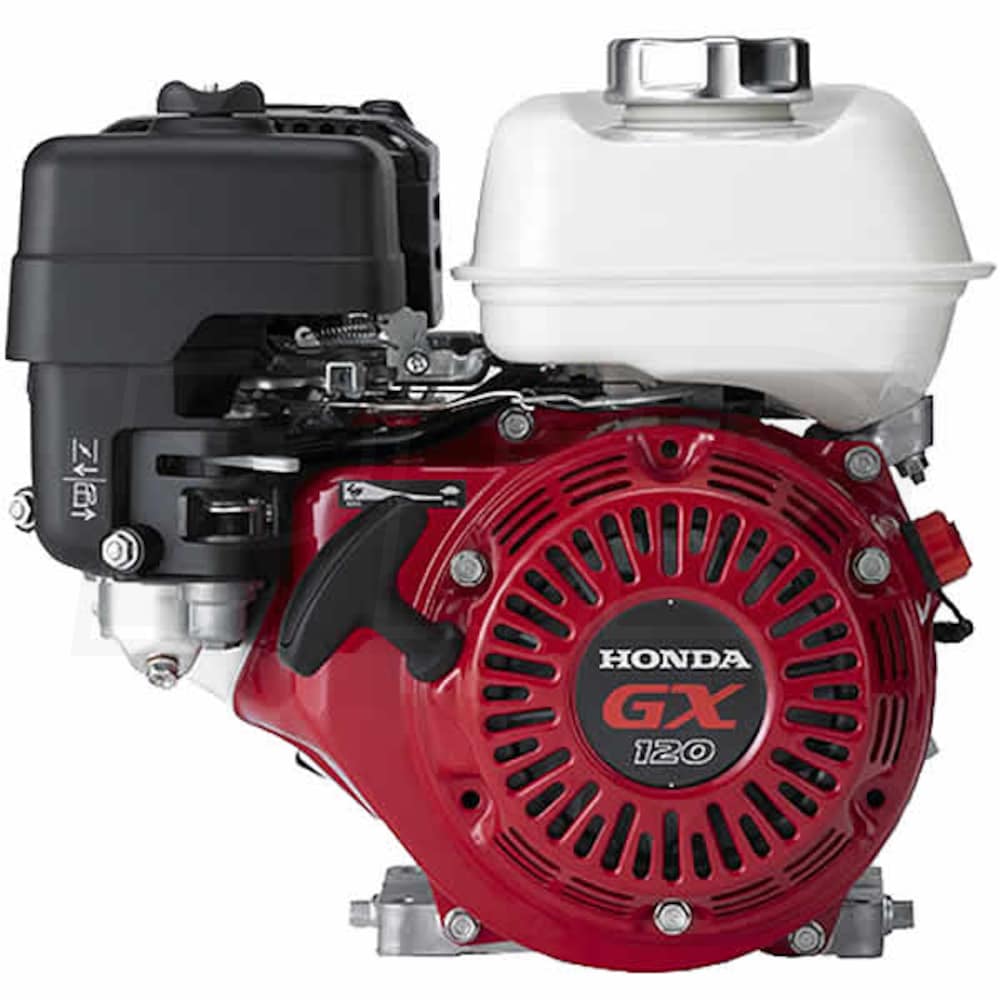

Honda GX120™ 118cc OHV Horizontal Engine, Oil Alert System, 3/4" x 2-7/16" Crankshaft

Honda GX120™ 118cc OHV Horizontal Engine, Oil Alert System, 3/4" x 2-7/16" Crankshaft
Model: GX120UT2QX2
$349.99
Only 1 In-Stock
Ships Wednesday, Sep 19th
Free Shipping
Only 1 In-Stock
Ships Wednesday, Sep 19th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX120UT2QX2 - Oil Alert® System, 3/4" x 2-7/16" Crankshaft
  • Great for pumps, pressure washers, tillers & lawn/garden equipment
  • Honda GX120™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 5.4 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes .525-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
  • 3-Year Consumer & 3-Year Commercial Warranty
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
29 Lbs
CC
118 CCs
HP
3.5 HP
Net Torque
5.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.4 Inches
Stroke
1.7 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.87 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.525 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Weight
29 Pounds
Product Length
11.7 Inches
Product Width
13.6 Inches
Product Height
13.0 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • Model# GX120UT2QX2 - Oil Alert® System, 3/4" x 2-7/16" Crankshaft
  • Great for pumps, pressure washers, tillers & lawn/garden equipment
  • Honda GX120™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 5.4 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes .525-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
  • 3-Year Consumer & 3-Year Commercial Warranty
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
29 Lbs
CC
118 CCs
HP
3.5 HP
Net Torque
5.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.4 Inches
Stroke
1.7 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.87 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.525 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Weight
29 Pounds
Product Length
11.7 Inches
Product Width
13.6 Inches
Product Height
13.0 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
29 Lbs
CC
118 CCs
HP
3.5 HP
Net Torque
5.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.4 Inches
Stroke
1.7 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.87 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.525 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Weight
29 Pounds
Product Length
11.7 Inches
Product Width
13.6 Inches
Product Height
13.0 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Reviews
(1)
+
Honda Engines GX120UT2QX2 Reviews & Ratings
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Jake
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
