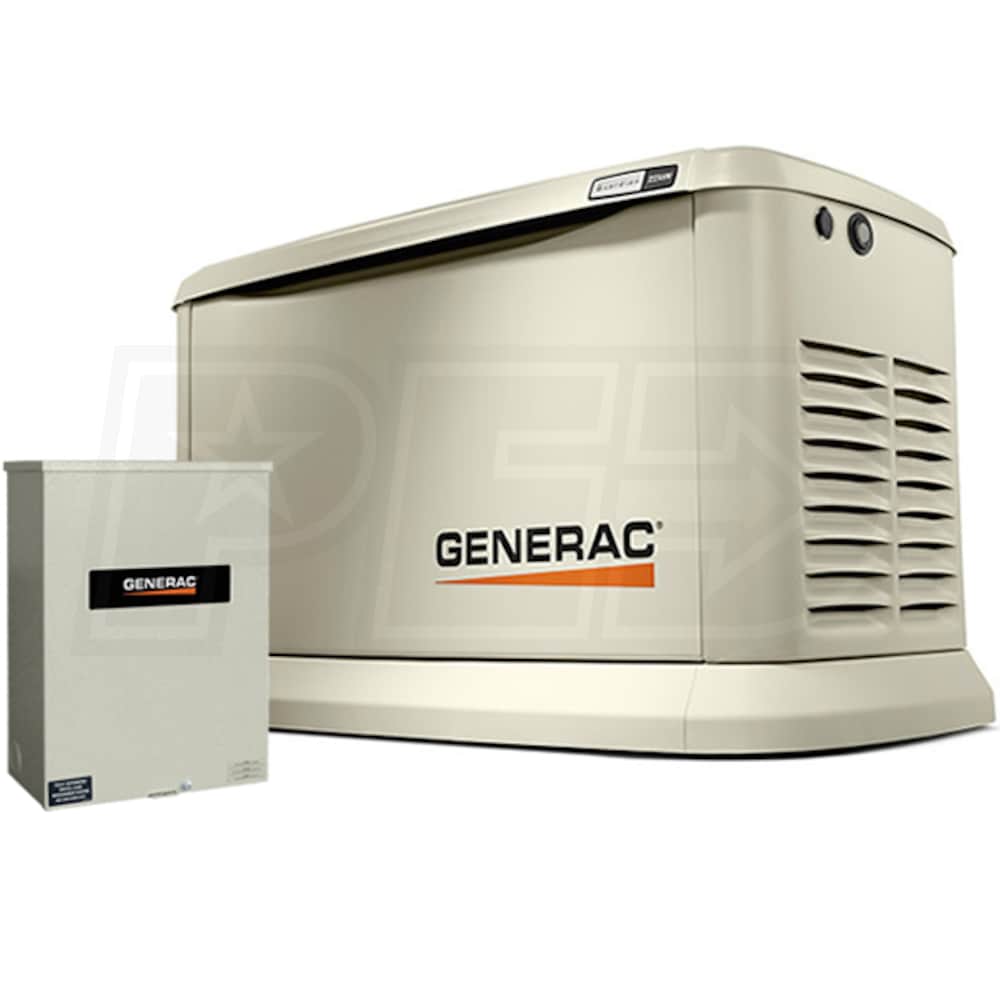

Generac Guardian™ 22kW Standby Generator System (100A Service Disconnect + AC Shedding)
Model:
EGD-7042-100ASEKIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
- 22kW (LPG) / 19.5kW (NG) Guardian Air-Cooled Standby Generator
- Protects your home and family during a power outage
- Digital Power Management (DPM) protects against overload
- Includes 100-Amp Service Entrance Rated Automatic Smart Switch
- Installs between main meter & service panel for faster & less costly installation
- DPM technology allows for the Smart Control of (4) A/C units only
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- 5-Year Limited Warranty
- Plus 24/7•365 Customer Support so you have your questions answered when its convenient for you
- Generac's G-Force Engine
- Specifically desgined for the demanding enviroment standby generators endure
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connectes to your existing LP or natural gas fuel supply
- True Power™ Electrical Technology & Automatic Digital Voltage Regulation (+/- 1%)
- Less than 5% Total Harmonic Distorsion (THD) for utility grade power
- Allows for faster response time & maximum motor starting ability
- Evolution™ Digital Controller
- Multilingual, 2-Line LCD display for simple, straighforward operation
- Programmable-exerciser lets you set how often & what time generator will self-test
- Tough, Durable All-Aluminum Sound Attenuated Enclosure
- RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
- Compatible With Mobile Link™ Remote Monitoring (Sold Separately)
- Easily montior generator status anywhere with a smartphone, tablet, or PC
- Installation Flexibility*
- Can be installed within 18" of a building; *Always check local bulding codes
- Generac Standby Generators & Engines - Built In The USA*
- Built in the USA using domestic & foreign parts
- Additonal Features:
- Base fascia kit, 12" Flexible fuel line and Direct-To-Dirt composite mounting pad
- Built-in Battery Charger (Battery Sold Separately)

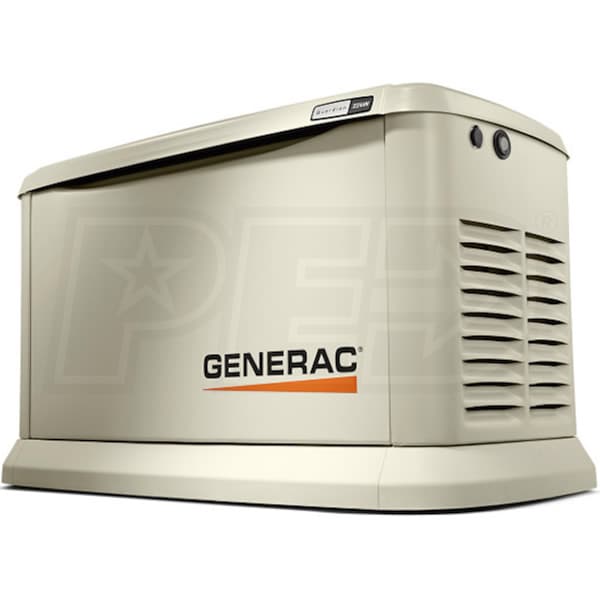

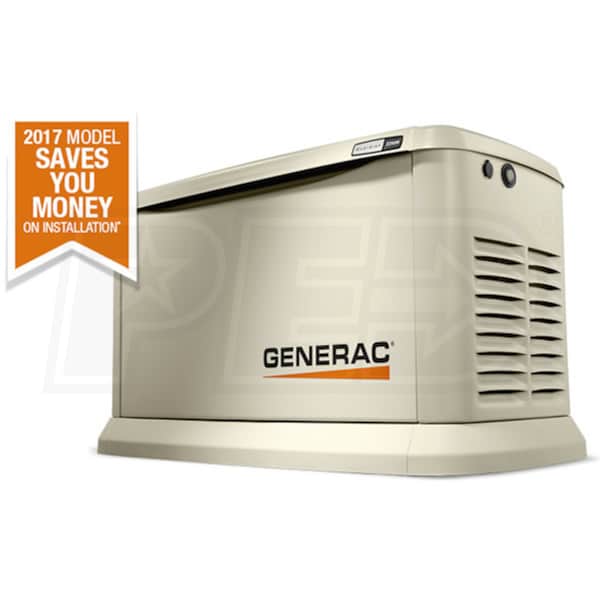

- (1) Generac Guardian™ 22kW Aluminum Home Standby Generator (7042)

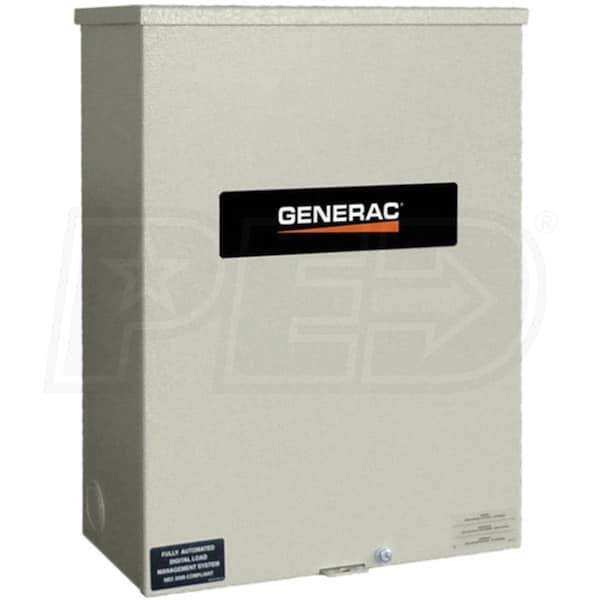

- (1) Generac 100-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RTSW100A3)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Generac Guardian™ 22kW Aluminum Home Standby Generator (7042)
- (1) Generac 100-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RTSW100A3)
EGD-7042-100ASEKIT
Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Surge Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
216 ft³/hr
NG Fuel Consumption @ 100% Load
310 ft³/hr
LP Fuel Consumption @ 50% Load
2.56 gallons/hr
LP Fuel Consumption @ 100% Load
3.87 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Not Included (540 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
7042
Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
216 ft³/hr
NG Fuel Consumption @ 100% Load
310 ft³/hr
LP Fuel Consumption @ 50% Load
2.56 gallons/hr
LP Fuel Consumption @ 100% Load
3.87 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Aluminum
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
RTSW100A3
Overview
Weight
22.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
20 Inches
Product Width
14.6 Inches
Product Height
7 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
