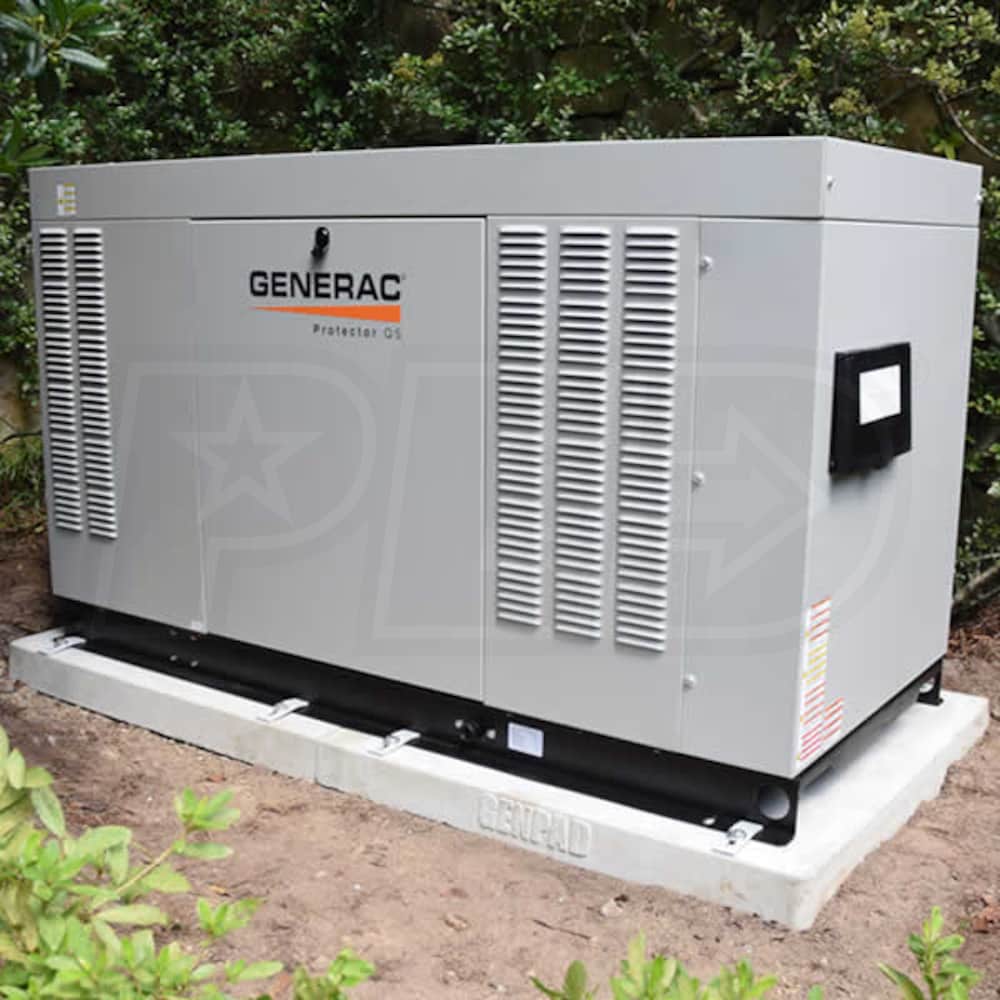

GenPad™ Composite Cement Pad for Generac Liquid-Cooled Protector Series Generators (32-60kW)
Model:
10000005771
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- GenPad™ LC Composite Cement Pad
- Meets engineering specs of Generac Liquid-Cooled Protector Series NG/LPG generators (32-60kW)
- A Sturdy, Permanent Base For Liquid-Cooled Generators
- Saves time and $$$ compared to a traditional poured base
- 4" Fiber / Foam Concrete w/ Steel & Beam Reinforcement
- Provides 8000 PSI compression strength
- Stronger and 50% lighter than traditional concrete
- Stands up to freeze / thaw conditions, season after season
- 8-Point, Clip-Mounting System
- Helps decrease installation time while providing maximum installation flexibility
- 6" x 6" Knockouts
- Allows the conduit to feed directly into generator base
- Easy Positioning & Alignment
- Visual marking provide edge to edge positioning, so you don't have to guess
- Only One Pallet - Mounting Hardware Included
- Both Pad pieces ship on a single pallet
- 5/8" lifting insert allows an eyebolt & lifting sling (Not included) for easier pad placement
- Please See Spec Sheet & Install Drawing For More Information
- *Note* - NOT For Use With Generac Protector Diesel (RD Series) Generators
Specifications
10000005771
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
485 Pounds
Product Length
83 Inches
Product Width
41 Inches
Product Height
4 Inches
