Fujitsu AOUG12LMAS1-SD
Fujitsu AOUG12LMAS1-SD
Hover to zoom
1 Of 5

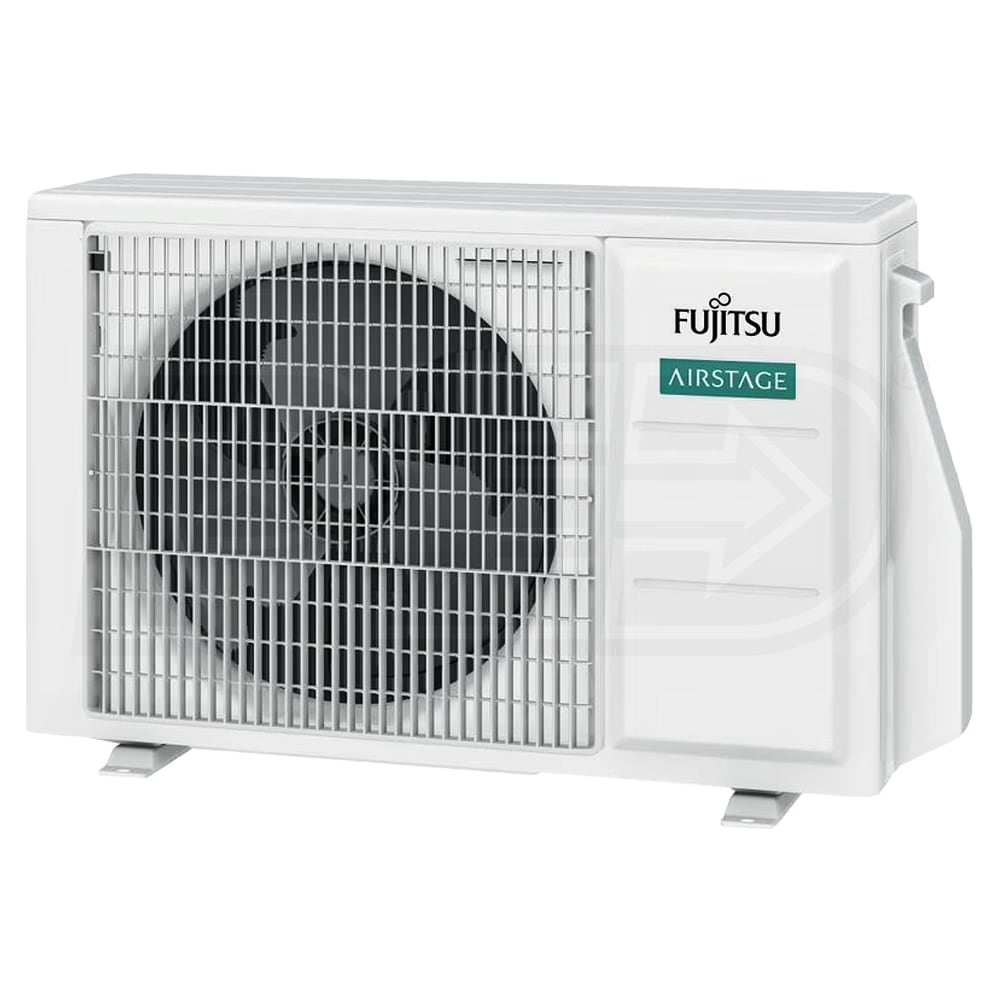

Fujitsu - 12k - LMAS1 Outdoor Condenser - Single Zone Only (Scratch and Dent)

Model:

AOUG12LMAS1-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Fujitsu - 12k - LMAS1 Outdoor Condenser - Single Zone Only (Scratch and Dent)
Fujitsu - 12k - LMAS1 Outdoor Condenser - Single Zone Only (Scratch and Dent)
Model: AOUG12LMAS1-SD
Was $998.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Share

Features

    ***Scratch & Dent*** Mounting brackets bent and fin damage. Requires compatible indoor unit, ASUG12LMAS. Product image might not reflect the product received.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AOUG12LMAS1-SD
specs product image PID-123186
Overview
Product Category
Mini Split System Components
General Information
Type
Outdoor Condenser
Product Line
AirstageLMAS
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/16 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
71 Pounds
Shipping Height
21 5/16 Inches
Shipping Width
31 7/16 Inches
Shipping Depth
11 7/16 Inches
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
