Fujitsu - 12k BTU Cooling + Heating - LMAS Wall Mounted Air Conditioning System - 23.0 SEER (Scratch and Dent)

Model:

12LMAS1-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fujitsu - 12k BTU Cooling + Heating - LMAS Wall Mounted Air Conditioning System - 23.0 SEER (Scratch and Dent)
Fujitsu - 12k BTU Cooling + Heating - LMAS Wall Mounted Air Conditioning System - 23.0 SEER (Scratch and Dent)
Model: 12LMAS1-SD
Was $1,682.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Share

Features

    ***Scratch and Dent*** The outdoor units has bent mounting brackets and fin damage. Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the LMAS wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the LMAS mini split system is a reliable and efficient choice. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu LMAS is a powerful, versatile addition to any home or business. Product image might not reflect the product received.
  • Inverter Technology
  • The AOUG12LMAS1 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change. This enables the system to maintain a more stable temperature.
  • Advanced Filtration
  • The ASUG12LMAS unit has two filters for keeping your home, or business, safe and clean. An ion deodorizing filter uses fine ceramic particles to capture and remove odors and an apple catechin filter isolates and deactivates mold, bacteria, and dust.
  • Timer Function
  • With this indoor unit, you can set a sleep timer to gradually decrease the heating or cooling output after you have gone to bed. It also supports a 24 hour timer, allowing designation of an activation and deactivation time once per day.
  • Dehumidify and Cool
  • Dry Mode demonstrates the ASUG12LMAS wall mounted unit's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • The airflow direction of this indoor unit may be set to swing automatically between its six vertical positions. This disperses the hot or cold air evenly across your zone, resulting in consistent and thorough heating and cooling.
  • Quiet Operating Mode
  • The ASUG12LMAS wall mounted unit may be set in a quiet operating mode. This operating mode limits airflow slightly to reduce fan noise from the unit, allowing you to enjoy supremely quiet comfort.
  • Economy Mode
  • The 12LMAS1 system features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Power Diffuser
  • This wall-mounted unit has an additional vertical airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room.

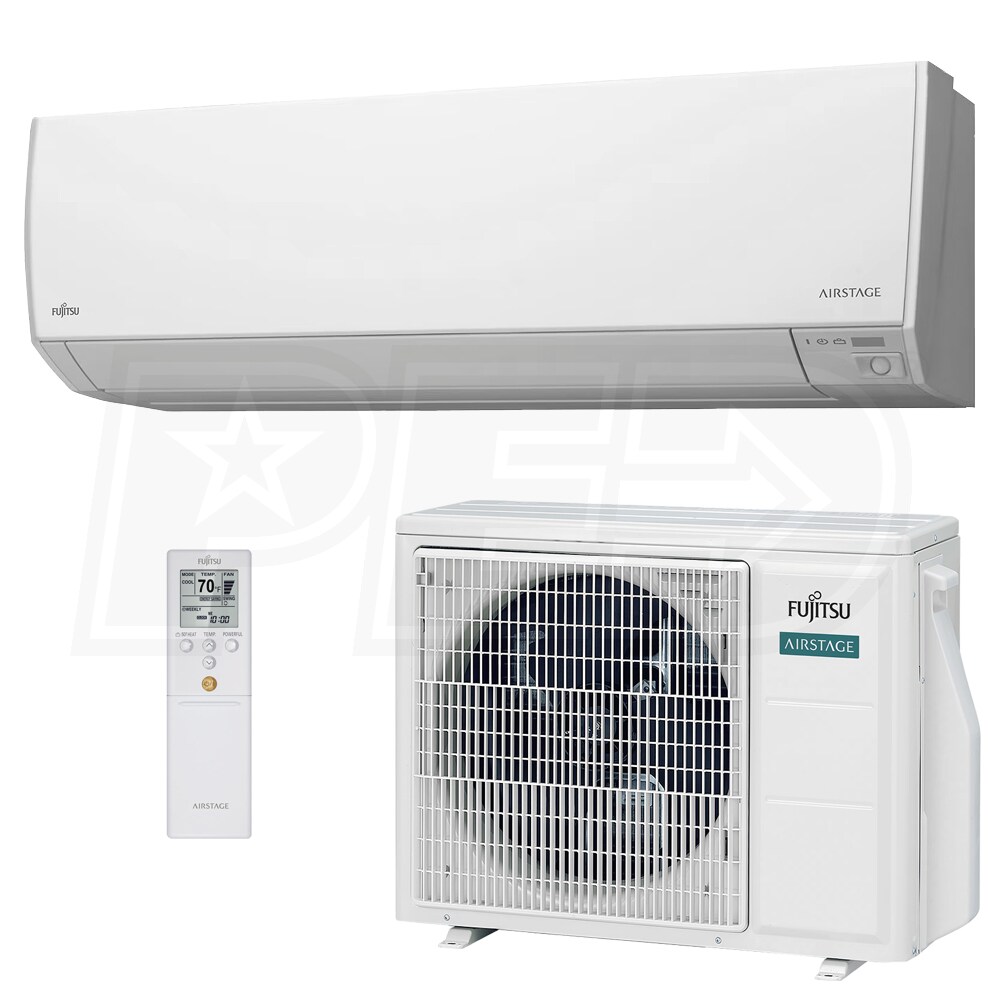

  • Product Includes

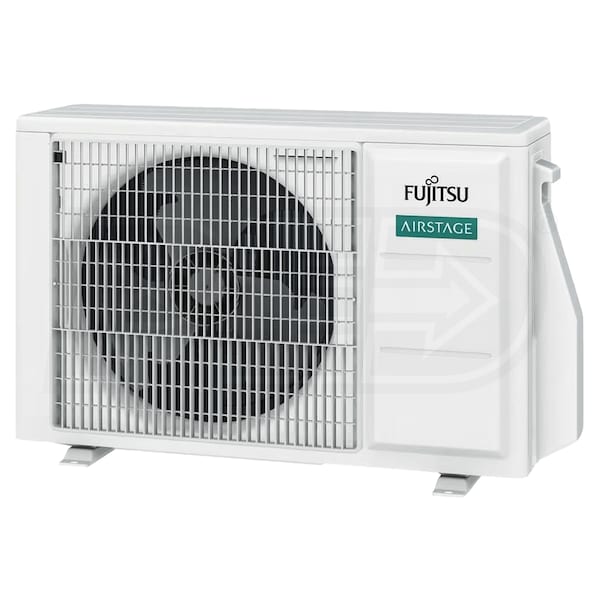

    • (1) Fujitsu - 12k - LMAS1 Outdoor Condenser - Single Zone Only (Scratch and Dent) (AOUG12LMAS1-SD)
    • (1) Fujitsu - 12k - Compact Wall Mounted Unit - Single Zone Only (ASUG12LMAS)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 12k - LMAS1 Outdoor Condenser - Single Zone Only (Scratch and Dent) (AOUG12LMAS1-SD)
  • (1) Fujitsu - 12k - Compact Wall Mounted Unit - Single Zone Only (ASUG12LMAS)
12LMAS1-SD
specs product image PID-123201
General Information
Type
Wall Mounted
Product Line
AirstageLMAS
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Outdoor Unit Size
12000 BTU
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
16000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
23
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
12.5
Minimum Operating Temperature
5 F
Maximum Operating Temperature
14 F
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
93 Pounds
Shipping Weight
106 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
204752938
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Limited Years
AOUG12LMAS1-SD
General Information
Type
Outdoor Condenser
Product Line
AirstageLMAS
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/16 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
71 Pounds
Shipping Width
31 7/16 Inches
Shipping Height
21 5/16 Inches
Shipping Depth
11 7/16 Inches
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
ASUG12LMAS
General Information
Type
Wall Mounted
Product Line
LMAS
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
453 CFM
Minimum Air Flow
147 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 5/8 Inches
Product Width
32 13/16 Inches
Product Depth
8 3/4 Inches
Product Weight
22 Pounds
Shipping Height
10 7/8 Inches
Shipping Width
36 Inches
Shipping Depth
13 1/16 Inches
Shipping Weight
29 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
