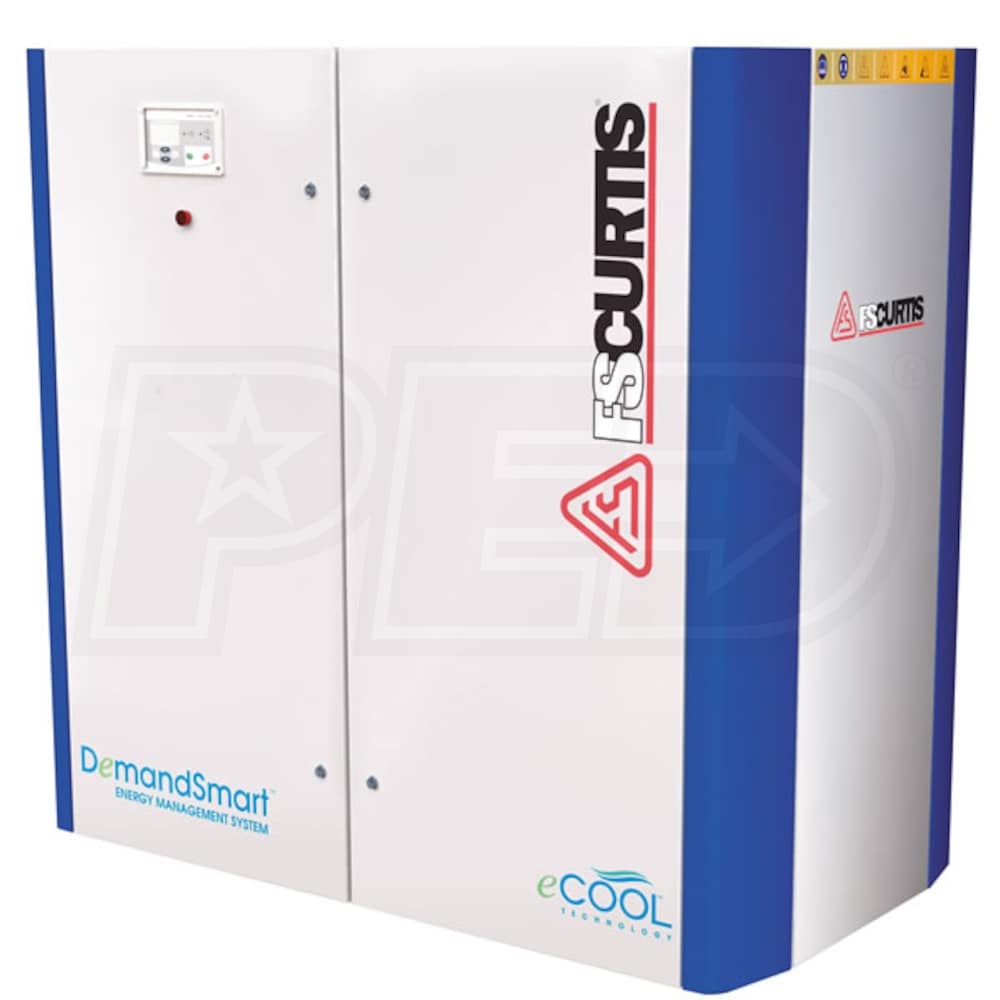

FS-Curtis 100-HP Tankless Rotary Screw Air Compressor (460V-3Phase)
FS-Curtis 100-HP Tankless Rotary Screw Air Compressor (460V-3Phase)
Model: GSV-100
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

474

Tank Size

0

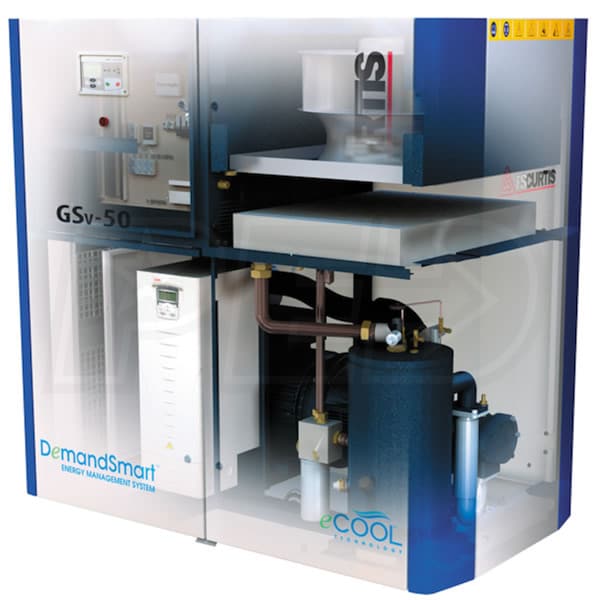

  • DemandSmart VSD Drive
  • Saves energy by meeting changing air demands
  • 98-474 CFM@ 100 PSI; 98-430 CFM@ 15 PSI, 98-380 CFM@ 150 PSI
  • eCOOL Intelligent Cooling Technology
  • Integrated oil thermostat increases efficiency & leak free design
  • Direct Drive Airend
  • No gears means effective operation & less maintenance
  • High Efficiency TEFC Motors
  • Only 75 dBA outside the enclosure
  • Premium Filtration System
  • Heavy duty air intake filter for optimum performance
  • Advanced oil separation system reduces maintenance
  • Air Cooled Oil Cooler & Aftercooler
  • High performance synthetic lubricant oil increases unit longevity
  • AIMS Plus Controller
  • Intuitive controls & monitoring
  • High Quality Stainless Steel Tubing & Hydraulic Fittings
  • Efficient integrated discharge valve & centrifugal cooling fan
  • Laminated Sound Insulation Lining
  • Noise isolator pads under separator tank reduce vibration
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

GSV-100
specs product image PID-15200
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
100
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
474
CFM Rated @
90 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
0 Gallons
Tank Included
No
Accessories
Air Dryer
No
Overview
Weight
4000 Pounds
Product Length
93.9 Inches
Product Width
47.6 Inches
Product Height
72.6 Inches
Power Type
Electric
