FS-Curtis FCT05C55V6X-A2L1XX - CT5 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on FS-Curtis FCT05C55V6X-A2L1XX.

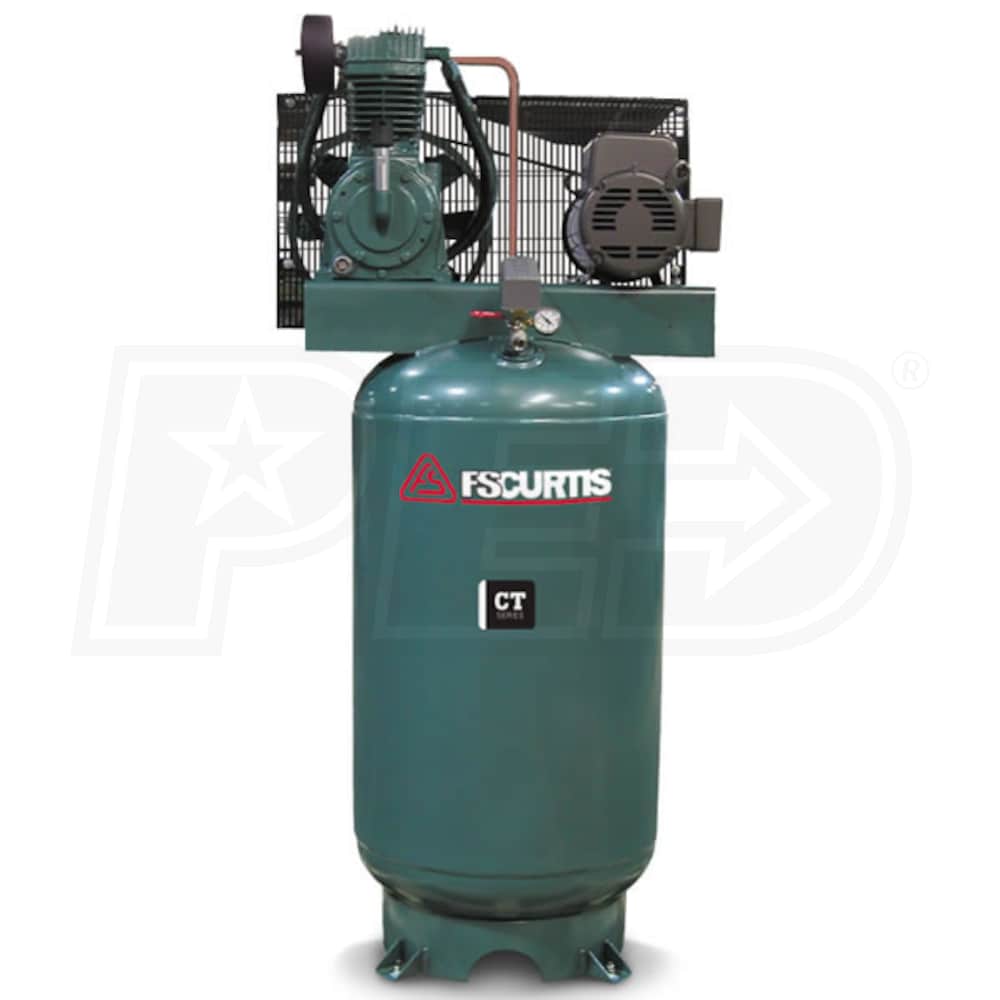

FS-Curtis CT5 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)

Close
FS-Curtis Power Equipment and Accessories
Model: FCT05C55V6X-A2L1XX
(Based on expert analysis, manufacturer ratings and customer reviews)
2.0 out of 52.0 out of 52.0 out of 52.0 out of 52.0 out of 5
1 Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock Only 2 In-Stock
Ships Thursday, Dec 14th

Estimate Arrival

This Item cannot be shipped to
HI and AK.
$1,442.48
$1,348.23

StoreShippingPriceShop

In-Stock
Free Freight
$1,348.23
No Sales Tax*
(Except IL)
Buy

In-Stock
Free Freight
$1,348.23
No Sales Tax*
(Except IL)
Visit Site

$1,398.23
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • 1
    Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Consumer Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
15.9
CFM Rated @ 175 PSI
Tank Size
60
Gallons

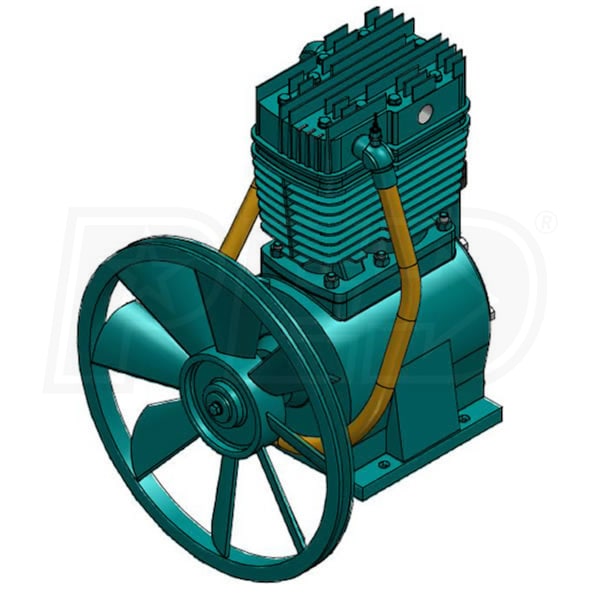

Heavy-Duty Two-Stage Cast Iron Pump
Built to ISO 9001 standards & provides dependable operation

Slow V-Belt Drive
Quiet, slow speed design for extended life

High Flow, Heavy-Duty Stainless Steel Valve System
Provides more CFM per horsepower

Deep-Finned Cast Iron Cylinder & Head
For maximum cooling during operation

Ductile Iron Crankshaft & Heavy-Duty Main Roller Bearings
Precision fit drive components designed for maximum performance

OSHA Approved Metal Belt-Guard
Totally enclosed design provides added safety while in use

UL Approved, Thermally Protected 230V Electric Motor
Rugged NEMA design for low power consumption

Additional Features
ASME tank and safety valve, UL approved pressure switch
Auto start/stop, no-load starting, metal intake filter-silencer
Manual tank drain and dial read-out pressure gauge
Factory oil filled
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
15.9
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Orientation
Vertical
Overview
Certification
UL
Weight
515 Pounds
Product Length
33 Inches
Product Width
27 Inches
Product Height
73 Inches
Consumer Warranty
2 Years
Model
FCT05C55V6X-A2L1XX
Need Help? Call Our Experts.
View Accessories For This Product.
Read Reviews
How-To Library
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Jim about the FS-Curtis FCT05C55V6X-A2L1XX. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit

Questions before buying? Ask Jim about this item. Sorry, do not submit repair related questions.

FS-Curtis FCT05C55V6X-A2L1XX Reviews & Ratings
1 Review  Sort by

Kris G.
Tukwila, WA
Purchased from Power Equipment Direct
Purchased 7/17/17
Most Helpful Critical Review
REVIEWED
JUL.
28
2017
2 out of 52 out of 52 out of 52 out of 52 out of 5
I'm Disappointed
I am very disappointed that this compressor was not delivered as pictured. The item in the photo obviously has a Baldor motor. What I received does not. The item in the photo has a ring at the bottom of the tank and 4 feet. What I received has no ring and only 3 feet.

I can only assume the pump is correct since nothing else is. I could have bought a compressor with this quality of tank and motor for much less just about anywhere. I believe that Curtis should ship what is shown and be... more
Kris Does Not Recommend This Product
Jim, the Air Compressor Expert
Product Expert
Kris,
I am so sorry the image we have online is not current! I've requested a new image from the folks at FS-Curtis and will have the image for this product line updated immediately.

The unit should still match everything in the Features and Specs we list, and will still deliver FS-Curtis quality and dependability, as well as their 2 year Factory Warranty- otherwise they wouldn't put their name on it.

We appreciate your business, and apologize for any inconvenience.
more
Manufacturer Response
Brand Rep
Kris,
Kris,
Please accept my apologies for the fact that we have not updated the photo. We will work on doing that ASAP. Regarding the motor and the tank, I was not aware that we had changed our motor supplier, so I will work with our product management team to understand why we did that and will be happy to update you once I've had that conversation.

As far as the tank, we made the change to the pedestal style tank in order to provide better access to the manual drain. We had received feedback that it was very difficult to access the drain with the skirt base.

Finally, rest assured that the pump is in fact the same long-lasting cast iron pump that has been part of the CT packages since we introduced them.

Regardless, you are absolutely correct that we should have updated pictures, so we would like to make amends by providing 4 maintenance kits free of charge. Simply provide your mailing address and contact information and we'll send these out.

Sincerely,
Matt Smith
National Sales Director
FS-Curtis Air Compressors
msmith@curtistoledo.com
704-724-3021
more
