FS-Curtis FCA15E15H1U-D3L1XX - CA15 15-HP 120-Gallon UltraPack Two-Stage Air Compressor (230V 3-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on FS-Curtis FCA15E15H1U-D3L1XX.

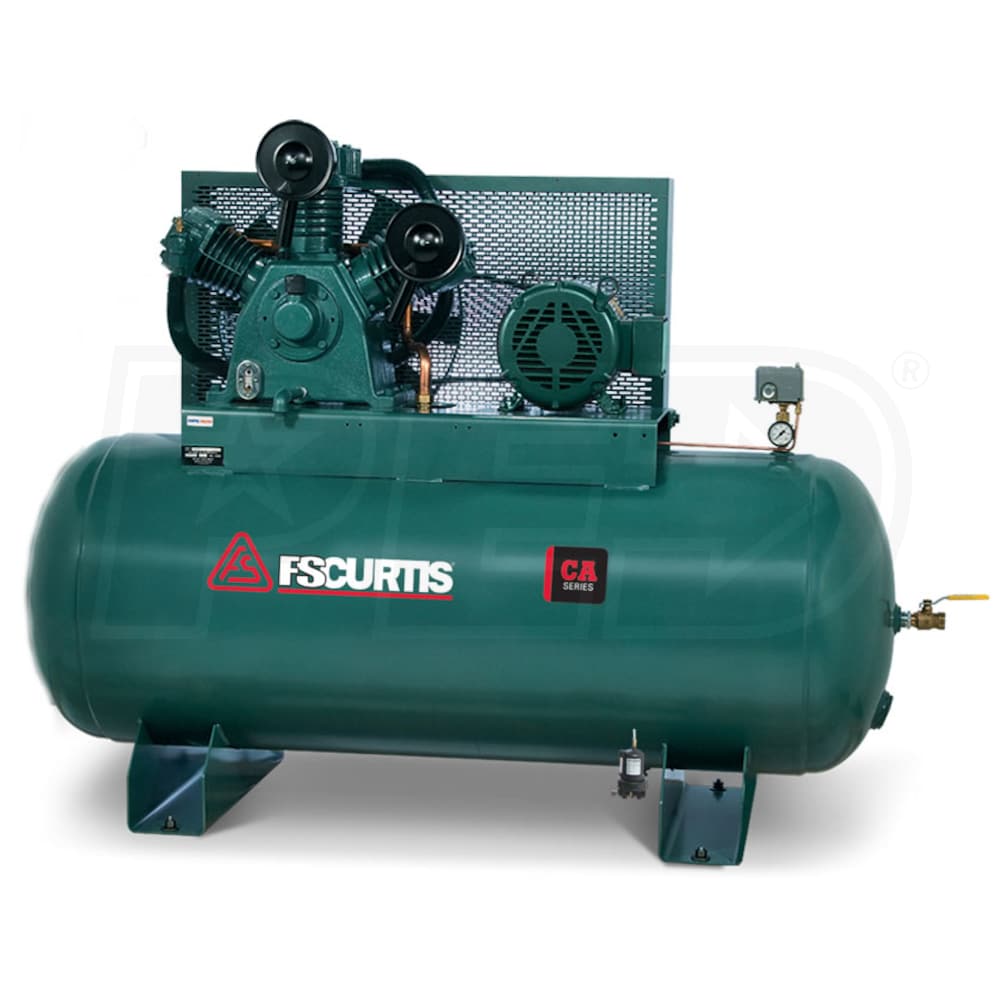

FS-Curtis CA15 15-HP 120-Gallon UltraPack Two-Stage Air Compressor (230V 3-Phase)

Close
FS-Curtis Power Equipment and Accessories
Model: FCA15E15H1U-D3L1XX
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$4,845.76
$4,361.18

StoreShippingPriceShop

Free Freight$4,361.18
No Sales Tax*
(Except IL)
Buy

Free Freight$4,361.18
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
42.6
CFM Rated @ 175 PSI
Tank Size
120
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

UltraPack Saves Time & Money
Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency

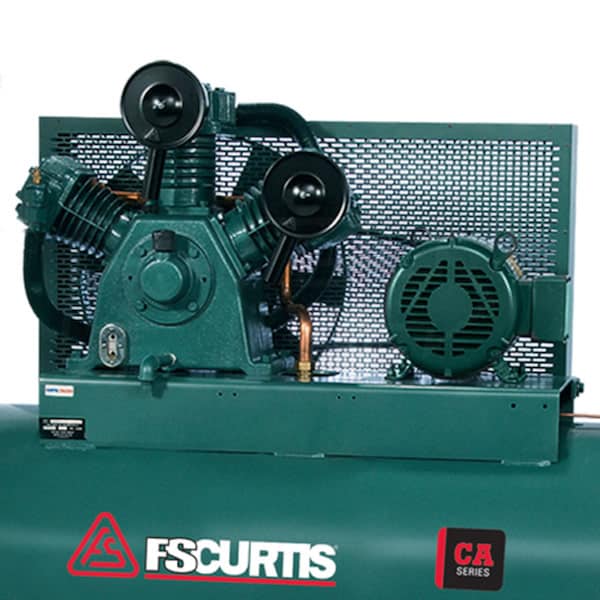

Durable Cast Iron Pump With Dual Control
Slow-turning pump increases pump life; large pressure gauge is easy to monitor
Dual control with start/stop or constant speed selection reduces load cycles on the motor & duty cycles on the pump

Magnetic Motor Starter
Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life

Air Cooled Aftercooler
Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use

Low Oil Level Shutdown Switch
Protects the pump; unit is factory-filled with high quality synthetic-blend oil

120 Gallon ASME-Approved Air Receiver
Automatic tank drain simplifies maintenance; prevents rust in the tank
Tank isolator pads reduce noise & vibration

Heavy Duty Stainless Steel Valve System
Delivers more CFM per horsepower: 42.6 CFM at 175 PSI

Heavy Duty Stamped-Steel Belt Guard
Totally enclosed, OSHA approved protection

1 Year Factory Warranty
Extends to 5 year bumper-to-bumper UltraShield with online factory registration & use of FS-Curtis maintenance products
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
42.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME, UL
Weight
1026 Pounds
Product Length
74 Inches
Product Width
37 Inches
Product Height
54 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Model
FCA15E15H1U-D3L1XX
