FS-Curtis FCA07E57V8S-A2L1XX - CA7.5 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on FS-Curtis FCA07E57V8S-A2L1XX.

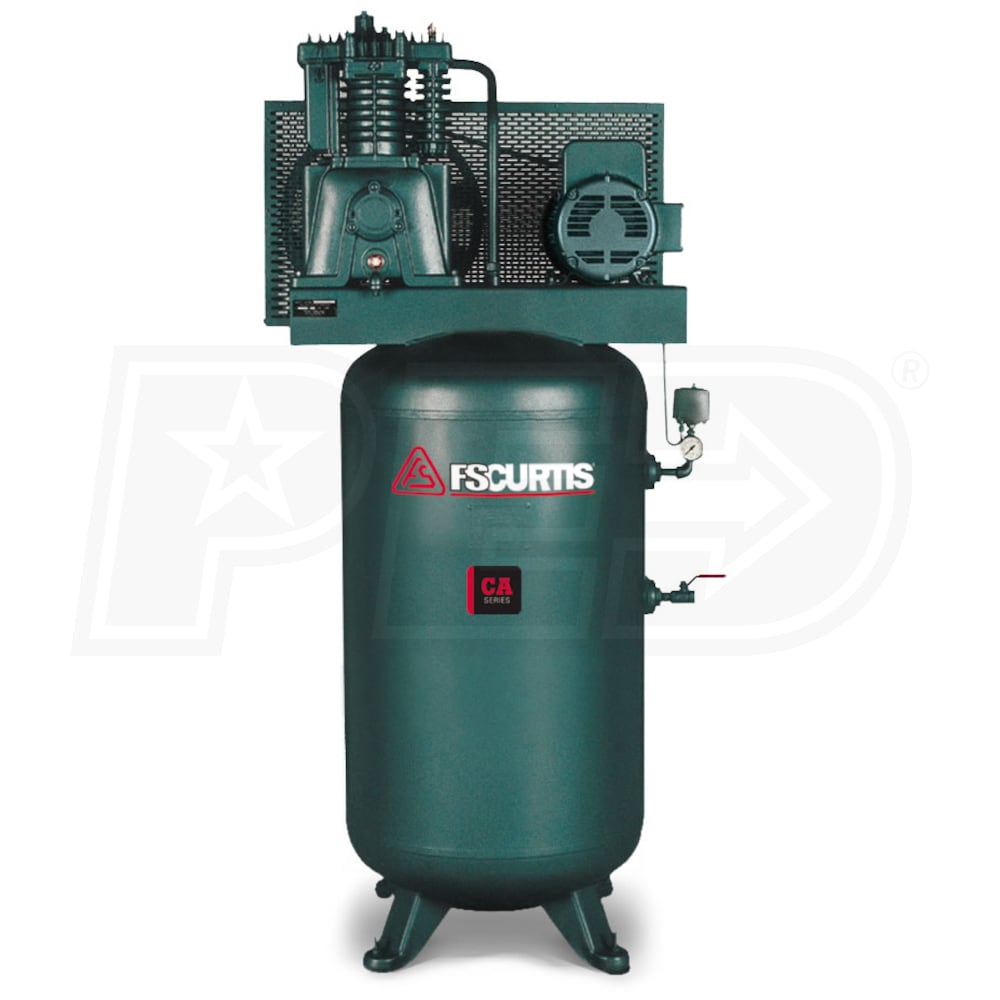

FS-Curtis CA7.5 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Close
FS-Curtis Power Equipment and Accessories
Model: FCA07E57V8S-A2L1XX
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$2,642.70

StoreShippingPriceShop

Free Freight$2,642.70
No Sales Tax*
(Except IL)
Buy

Free Freight$2,642.70
No Sales Tax*
(Except IL)
Visit Site

$2,717.70
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Contractor Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
23.2
CFM Rated @ 175 PSI
Tank Size
80
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Robust CA Series 2-Stage Air Compressor
Provides higher pressures, better efficiency & longer life for rugged, heavy-duty applications

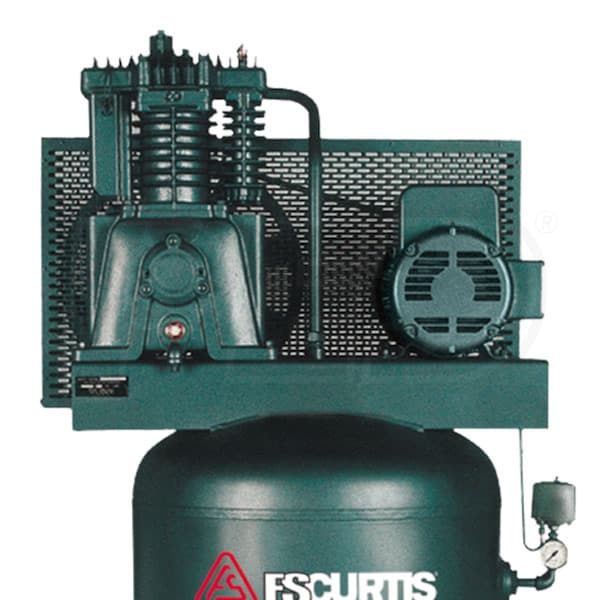

Durable Cast Iron Pump
Slow-turning pump increases pump life; long lasting cylinders & cylinder heads are 100% cast iron
Reliable UL-approved automatic start/stop pressure switch & ASME-approved safety valve

Magnetic Motor Starter
Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life

Heavy Duty Stainless Steel Valve System
Delivers more CFM per horsepower: 23.2 CFM at 175 PSI

Metal Intake Filter/Silencers
Cleaner air coming in reduces wear & tear, allows better quality air output

Heavy Duty Stamped-Steel Belt Guard
Totally encloses the dynamically balanced flywheel & belt; OSHA-approved for operator safety

Large Dial Read-Out Pressure Gauge
Easily check pressure at a glance

80 Gallon ASME-Approved Air Receiver
Manual condensate tank drain valve simplifies maintenance; discharge valve is ASME-approved

1 Year Factory Warranty
Extends to 2 years on the pump with online factory registration & use of FS-Curtis maintenance products
Engine
HP
7.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Recommended Breaker
Consult Certified Electrician
Pump
CFM
23.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME, UL
Weight
530 Pounds
Product Length
35 Inches
Product Width
24 Inches
Product Height
74 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Model
FCA07E57V8S-A2L1XX
