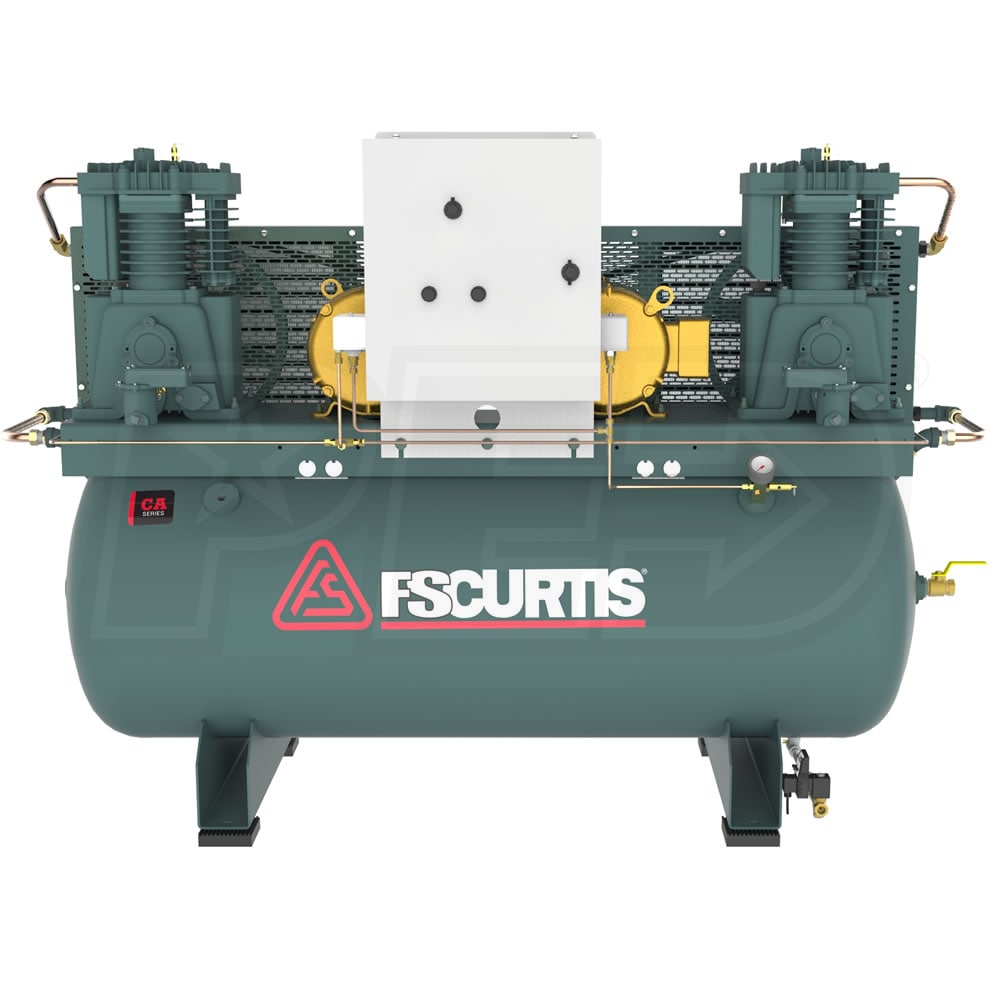

FS-Curtis CA7.5 7.5-HP / 15-HP 120-Gallon UltraPack Two-Stage Duplex Air Compressor (230V 1-Phase)

Model:

FCA07E57D1U-A2L1XX

Write A Review
$10,730.44
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

FS-Curtis CA7.5 7.5-HP / 15-HP 120-Gallon UltraPack Two-Stage Duplex Air Compressor (230V 1-Phase)
FS-Curtis CA7.5 7.5-HP / 15-HP 120-Gallon UltraPack Two-Stage Duplex Air Compressor (230V 1-Phase)
Model: FCA07E57D1U-A2L1XX
$10,730.44
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

46.4

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • UltraPack Saves Time & Money
  • Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency

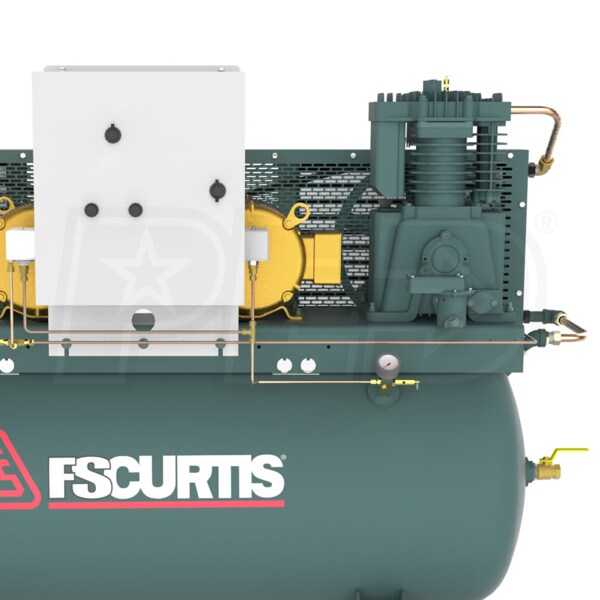

  • Duplex Unit Runs Two 7.5-HP Pumps & Motors
  • Run both pumps for maximum CFM; run only 1 pump during low demand, saving energy & prolonging pump life
  • Dual pressure switches & alternator balance running hours to simplify maintenance & equalize lifetimes
  • Magnetic Motor Starter
  • Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
  • Air Cooled Aftercooler
  • Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use
  • Low Oil Level Shutdown Switch
  • Protects the pump; unit is factory-filled with high quality synthetic-blend oil
  • 120 Gallon ASME-Approved Air Receiver

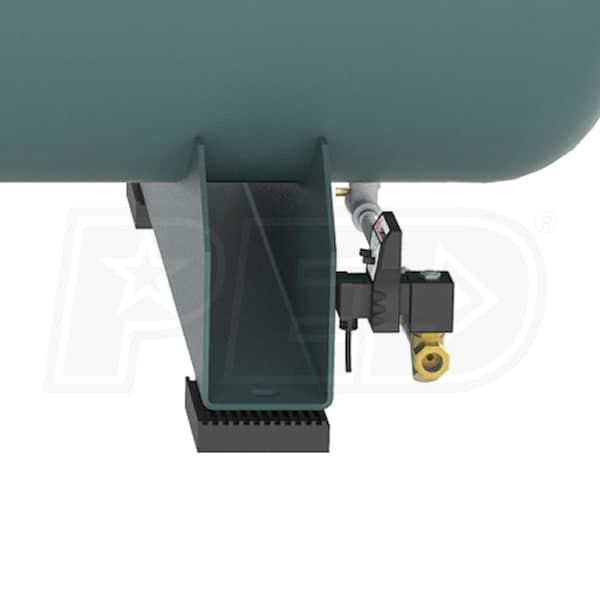

  • Automatic tank drain simplifies maintenance; prevents rust in the tank
  • Tank isolator pads reduce noise & vibration
  • Heavy Duty Stainless Steel Valve System
  • Delivers more CFM per horsepower: 23.2 CFM with 1 pump or 46.4 CFM at 175 PSI with both pumps running
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally enclosed, OSHA approved protection
  • 1 Year Factory Warranty
  • Extends to 5 year bumper-to-bumper UltraShield with online factory registration & use of FS-Curtis maintenance products
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FCA07E57D1U-A2L1XX
specs product image PID-76299
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
46.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
995 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
84 Inches
Product Width
31 Inches
Product Height
54 Inches
Power Type
Electric
