EMAX Industrial Plus Patented Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (230V 3-Phase)

Model:

ESP07V080V3PK-230

Write A Review
$5,428.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

EMAX Industrial Plus Patented Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (230V 3-Phase)
EMAX Industrial Plus Patented Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (230V 3-Phase)
Model: ESP07V080V3PK-230
$5,428.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

31

Tank Size

80

  • Patented Silent Air Technology
  • Reduces dBA readings by up to 35%
  • Piston intake noise is trapped and dissipated within the silencer structure
  • Pressure Lubricated Cast Iron Pump w/ Built-In Inter-Cooler & After-Cooler
  • Designed for up to 70,000 hours of commercial or industrial
  • Dual control design allows for automatic or continuous run for all applications
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability

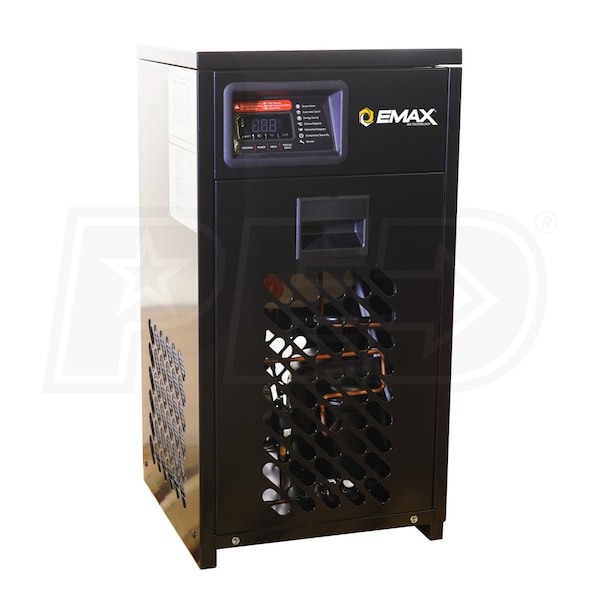

  • EMAX EDRCF1150030 30 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • 7.5-HP Industrial Grade 1750 RPM Motor
  • Low RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
  • Belt tension adjuster for fast, easy "one turn" design
  • Raised Pump Mounting Platform (ESP Models Only)
  • Pump is raised approximately 2-inches off the mounting base plate
  • Allows 100% constant flow of cool air from flyweel fan around pump crankcase
  • Ensures cooler pump oil temperatures, helps lubricate pump, keeps heat off pistons & connecting rods
  • 80 Gallon ASME Receiver With Auto Tank Drain
  • Includes isolation pads to lessen vibration and noise
  • 110V automatic tank drain with dual timers eliminates daily maintenance
  • Prewired condor starter and pressure switch built into one
  • 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ESP07V080V3PK-230
specs product image PID-79681
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
18
Recommended Breaker
30 Amp Breaker
Engine
HP
7.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
743 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002014319
