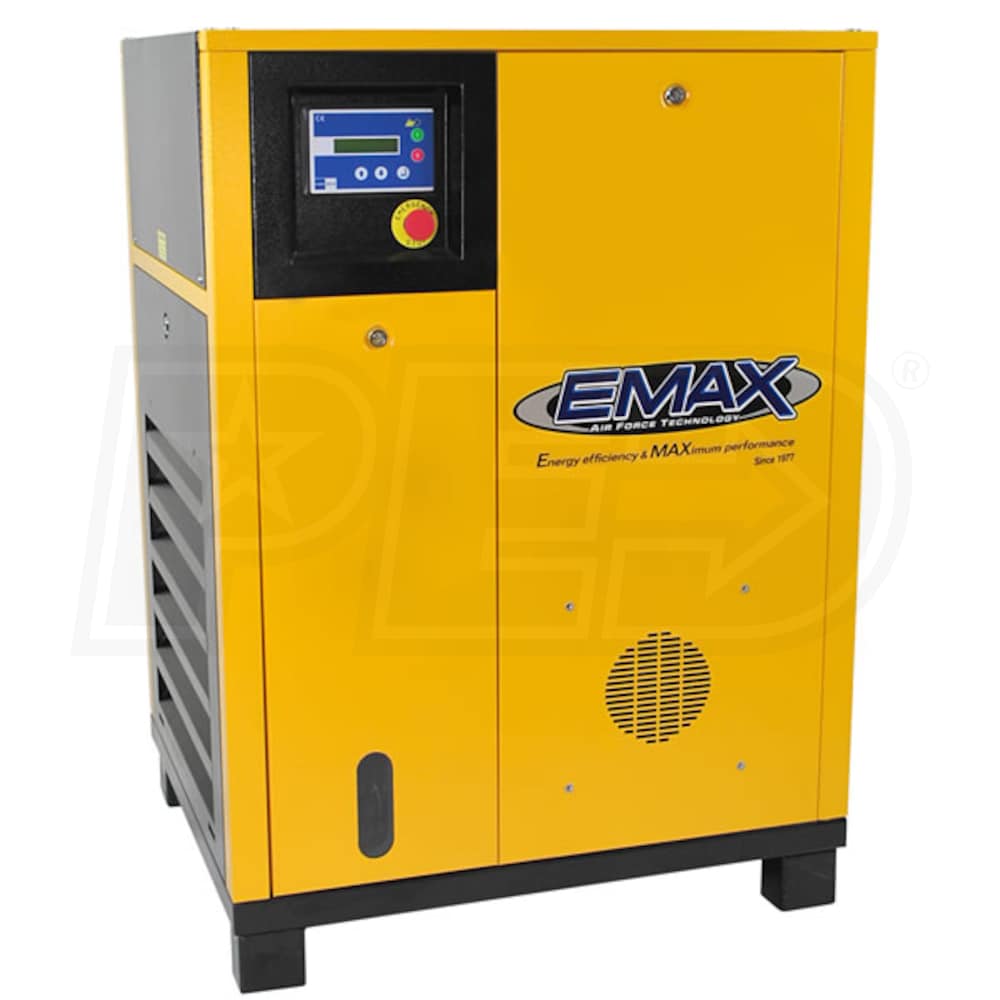

EMAX 5-HP Tankless Rotary Screw Air Compressor (230V 3-Phase)

Model:

ERS0050003

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
EMAX 5-HP  Tankless Rotary Screw Air Compressor (230V 3-Phase)
EMAX 5-HP Tankless Rotary Screw Air Compressor (230V 3-Phase)
Model: ERS0050003
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

21

Tank Size

0

  • Rotary Screw Air System
  • 208V 3-phase power drives 2810 RPM TEFC motor
  • Drive-Tek
  • Reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor
  • Provides reduced energy demand and amp draw on start up

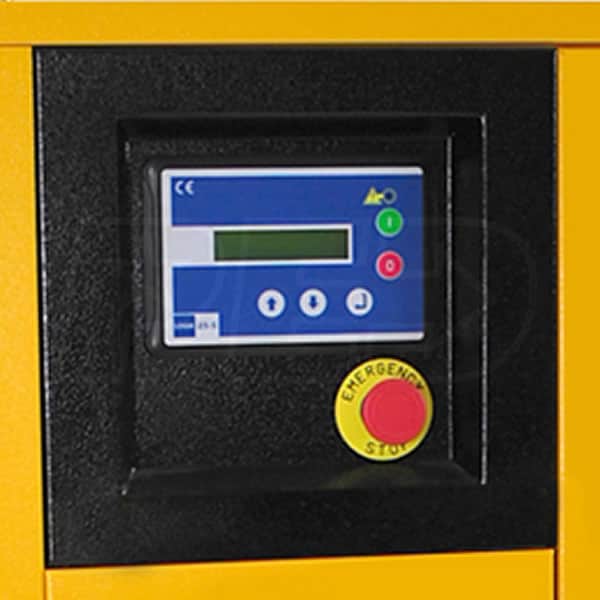

  • PLC Controller - Advanced Maintenance Intelligence Monitor
  • Maintenance, temperature, oil level, filtration and hours
  • Remote start/stop
  • Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove/install saving time and money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Heavy Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw
  • Designed For Use With Stationary Air Receiver (Not Included)
  • 2 year limited factory warranty on all electrical components
  • 5 year limited factory warranty on cabinet & motor
  • 10 yr. limited warranty on Air End Pump w/purchase of service kit
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • SERVICEKIT001A Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ERS0050003
specs product image PID-14520
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
21
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Stationary
Weight
562 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
33 Inches
Product Width
24 Inches
Product Height
42 Inches
Power Type
Electric
UPC
815002012599
