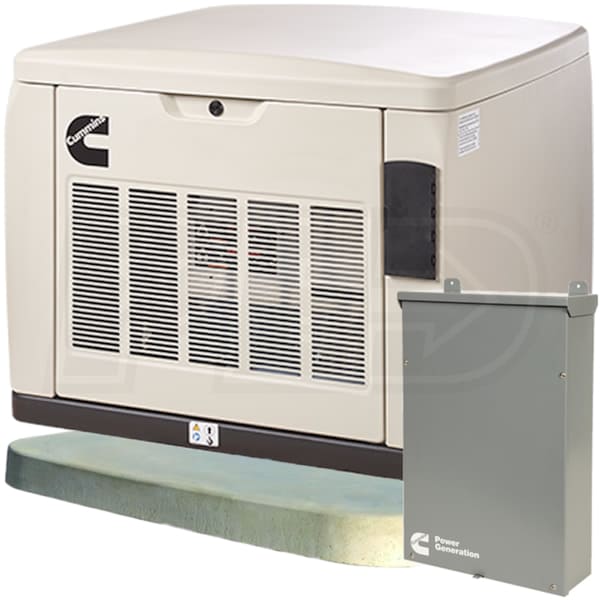

Cummins RS17A - 17kW Quiet Connect™ Series Home Standby Generator (200A Service Disconnect) + 3" Mounting Pad
Cummins RS17A - 17kW Quiet Connect™ Series Home Standby Generator (200A Service Disconnect) + 3" Mounting Pad
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
17,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
17,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Cummins Onan
Features
Features
- Cummins Quiet Connect™ Series 17kW Air-Cooled Standby Generator
- New for 2017 with improved design, exercise modes, load management & monitoring
- Includes 200-Amp Service Entrance Rated Automatic Transfer Switch
- Installs between main meter & service panel
- Allows for for faster & less costly installation
- Weather Protective Aluminum/Steel Sound Enclosure
- Can be installed* within 18" of a build (NFPA 37) - Always check local building codes
- Sound dampening engineering limits noise level to a low 65dB(A) @ 7M
- 999cc Cummins Air-Cooled V-Twin OHV Engine
- Field-selectable, runs on ultra efficient natural gas or LP (vapor)
- Low oil pressure shutdown provides added safety and longevity
- < 5% THD (Total Harmonic Distortion)
- Clean power that won't damage your electronic devices
- Patented "Crank Only" Exercise Mode
- Provides diagnostics without running engine for less wear and lower fuel costs
- Allows user to select time, date and frequency of exercise
- Load Management Capability (Requires Load Management Kit - Sold Separately)
- Maximizes generator power by intelligently managing up to 4 electrical loads
- Cummins Connect Cloud For Remote Monitoring
- Monitor, exercise and manually run the generator
- Use your computer, tablet or phone for maximum monitoring flexibility
- Cold Weather Equipped
- Operates in cold weather with performance down to 0 °F
- Cold weather accessories allow for even colder operation (Sold Separately)
- Includes Cummins 3" Concrete Mounting Pad
- A professional looking installation that looks great & lasts
- Standard 5-Year / 2,000 Hour Limited Warranty
- (1) Cummins RS17A - 17kW Quiet Connect™ Series Home Standby Generator (C17N6H)
- (1) Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Series Generators (Service Disconnect) (A045P697)
- (1) Cummins A052A795 - Standard 3" Composite Cement Pad for RS13, RS17 & RS20 Air-Cooled Generators (A052A795)
Product Includes
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
17000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
17000 Watts
LP Power Capacity
17000 Watts
NG Fuel Consumption @ 50% Load
213 ft³/hr
NG Fuel Consumption @ 100% Load
289 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.8 gallons/hr
Rated Amps
70.8 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
999 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
540 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
34.1 Inches
Product Width
36.0 Inches
Product Height
27.3 Inches
A061C596 Specifications+
A045P697 Specifications+
A052A795 Specifications+
Grade
Style
Run Watts
17,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
17,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Cummins Onan
Features
Features
- Cummins Quiet Connect™ Series 17kW Air-Cooled Standby Generator
- New for 2017 with improved design, exercise modes, load management & monitoring
- Includes 200-Amp Service Entrance Rated Automatic Transfer Switch
- Installs between main meter & service panel
- Allows for for faster & less costly installation
- Weather Protective Aluminum/Steel Sound Enclosure
- Can be installed* within 18" of a build (NFPA 37) - Always check local building codes
- Sound dampening engineering limits noise level to a low 65dB(A) @ 7M
- 999cc Cummins Air-Cooled V-Twin OHV Engine
- Field-selectable, runs on ultra efficient natural gas or LP (vapor)
- Low oil pressure shutdown provides added safety and longevity
- < 5% THD (Total Harmonic Distortion)
- Clean power that won't damage your electronic devices
- Patented "Crank Only" Exercise Mode
- Provides diagnostics without running engine for less wear and lower fuel costs
- Allows user to select time, date and frequency of exercise
- Load Management Capability (Requires Load Management Kit - Sold Separately)
- Maximizes generator power by intelligently managing up to 4 electrical loads
- Cummins Connect Cloud For Remote Monitoring
- Monitor, exercise and manually run the generator
- Use your computer, tablet or phone for maximum monitoring flexibility
- Cold Weather Equipped
- Operates in cold weather with performance down to 0 °F
- Cold weather accessories allow for even colder operation (Sold Separately)
- Includes Cummins 3" Concrete Mounting Pad
- A professional looking installation that looks great & lasts
- Standard 5-Year / 2,000 Hour Limited Warranty
- (1) Cummins RS17A - 17kW Quiet Connect™ Series Home Standby Generator (C17N6H)
- (1) Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Series Generators (Service Disconnect) (A045P697)
- (1) Cummins A052A795 - Standard 3" Composite Cement Pad for RS13, RS17 & RS20 Air-Cooled Generators (A052A795)
Product Includes
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
17000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
17000 Watts
LP Power Capacity
17000 Watts
NG Fuel Consumption @ 50% Load
213 ft³/hr
NG Fuel Consumption @ 100% Load
289 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.8 gallons/hr
Rated Amps
70.8 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
999 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
540 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
34.1 Inches
Product Width
36.0 Inches
Product Height
27.3 Inches
A061C596 Specifications+
A045P697 Specifications+
A052A795 Specifications+
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
17000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
17000 Watts
LP Power Capacity
17000 Watts
NG Fuel Consumption @ 50% Load
213 ft³/hr
NG Fuel Consumption @ 100% Load
289 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.8 gallons/hr
Rated Amps
70.8 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
999 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
540 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
34.1 Inches
Product Width
36.0 Inches
Product Height
27.3 Inches
A061C596 Specifications+
A045P697 Specifications+
A052A795 Specifications+
