Craftsman 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch + Check Valve
Model:
CMXWUSD62313
Number of Reviews
(0)
Write A Review
Ask a Question

$169.00
Free Shipping
×
Free Shipping
*This product qualifies for
Free Shipping
anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 3 In-Stock
Ships Monday, Apr 3rd
Shipping to
60601
Update Shipping Details
Shipping Details
ZIP Code
Update
Free to Lower 48 States
Standard Rates to
Alaska
,
Hawaii
Expedited Shipping Available - Shipping rates calculated at Checkout.

Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Local Pickup
# In-Stock
Out of Stock at
Pick Up Location Name
# mi
Pick Up Address
5 Available Nearby
# mi
Change Pickup Location
Learn More About Local Pickup
Ship To Me
Craftsman 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch + Check Valve
Model: CMXWUSD62313
Number of Reviews
(0)
Ask a Question
$169.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share
+
Share This Product
Recommended Accessories
+
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Add All Required Accessories
Optional Accessories
10
Features
×
Style
Primary
GPH
3500 Gallons
Switch Type
Vertical
Craftsman Submersible Sump Pump w/ Vertical Float Switch
Designed for use in residential sump applications

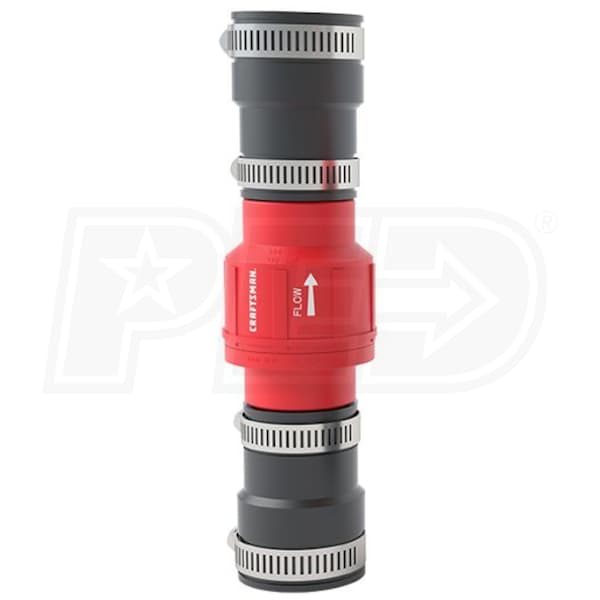

Includes 1-1/4" / 1-1/2" Slip-On Full Flow Check Valve
1/3 HP Split Capacitor, Oil-Cooled Motor
Energy-efficient design allows for easier start-ups
Solid copper winding for increased performance and motor life
Thermal Overload Protection
Helps extend motor life in demanding applications
Thermoplastic Construction
Corrosion-resistant design provides long life in sump applications
SJE-Rhombus Vertical Float Switch w/ Piggyback Plug
Provides reliable automatic operation; Tested over 2M cycles
Switch can be bypassed to run pump manually
SS Motor Shaft & Carbon/Ceramic/SS Shaft Seal
Robust components help prevent leaks
1-1/2" FPT Discharge
Allows for maximum discharge and better performance
Quad-Foot Base w/ Integral Screen
Provides a wider footprint for increased stability
Helps filter out large debris to prevent clogging
10' Power Cord w/ 3-Prong Plug
Ideal for residential sump applications
3-Year Limited Warranty
California residents see
Prop 65 WARNINGS
Show All Features
×
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to:
www.p65Warnings.ca.gov
Specifications
+
CMXWUSD62313
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
3500
GPH @ 5 feet
3200
GPH @ 10 feet
2600
GPH @ 15 feet
1950
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
6.5
Float Off
2
Manual Override
Yes
Max Head
24 Feet
Submersible
Yes
Remote Monitoring
No
Engine
Horsepower
.33 hp
Overview
Product Category
Sump Pump
Weight
10.1 Pounds
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
9.7 Inches
Product Height
11.8 Inches
UPC
725113623136
