Champion 100520 - 7000 Watt Digital Hybrid Open-Frame Electric Start Inverter Generator w/ Quiet Technology (CARB)

Model:

100520

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100520 - 7000 Watt Digital Hybrid Open-Frame Electric Start Inverter Generator w/ Quiet Technology (CARB)
Champion 100520 - 7000 Watt Digital Hybrid Open-Frame Electric Start Inverter Generator w/ Quiet Technology (CARB)
Model: 100520
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Optional Accessories 12
$76.50
$39.99
Factory-Direct
$57.99
Factory-Direct
$104.99
Factory-Direct
$54.99
Factory-Direct
$52.99
Only 5 In-Stock
$6.50
$50.49
In-Stock
$44.99
Only 2 In-Stock
$179.99
Factory-Direct

Features

Grade

Emergency

Style

Portable

Run Watts

7,000 Rated Watts

Surge Watts

8,750
Starting Watts

Fuel

Gasoline

Engine

Champion

Champion 100520 - 7000 Watt Digital Hybrid Open-Frame Electric Start Inverter Generator w/ Quiet Technology (CARB)


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

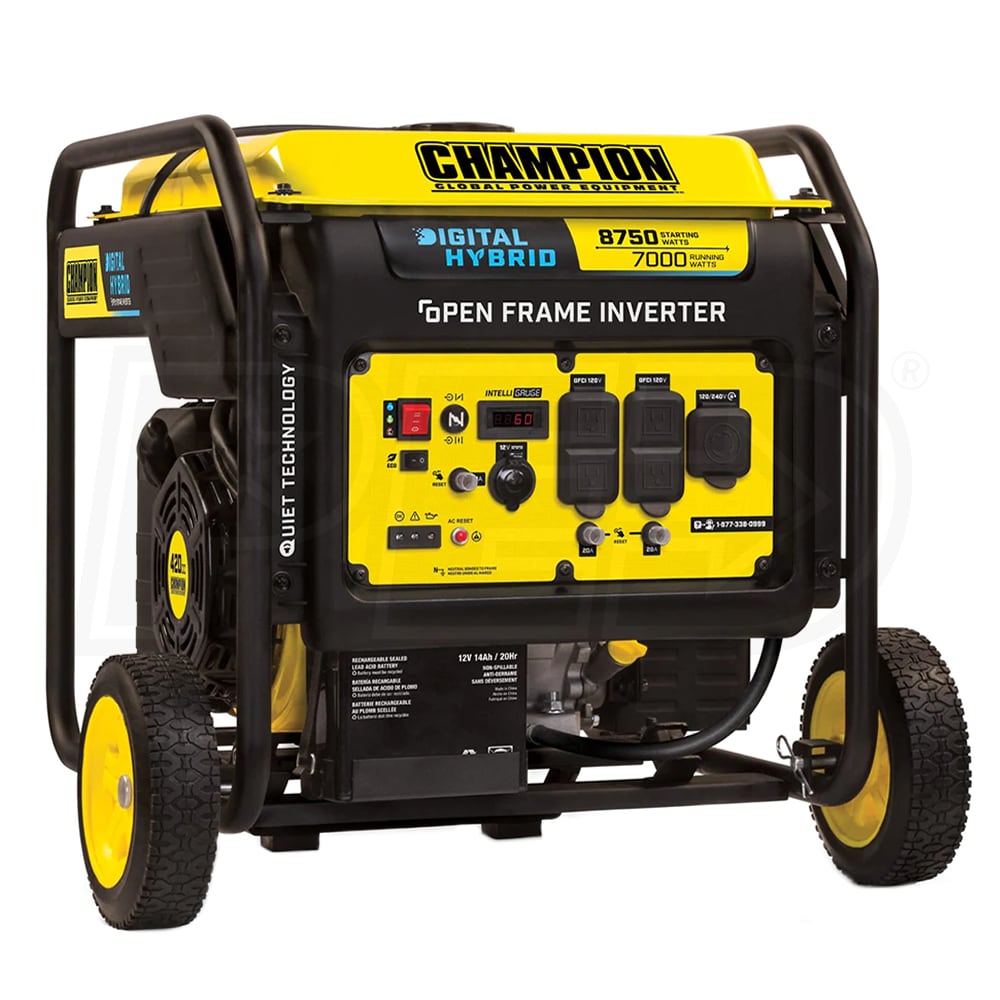

  • Champion 7000 Watt "Digital Hybrid" Portable Generator
  • Ideal for emergency backup and general power needs
  • Quiet Technology - 30% Quieter & 25% Lighter
  • Compared to a traditional 7000W generator
  • Clean Power Technology - Less Than 3% THD
  • Safer power for your electronics and equipment
  • Push-Button Electric Start (Battery Included)
  • Plus an easy-pull recoil starter, so you'll always be ready for an outage
  • 420cc Champion OHV 4-Stroke Engine w/ Low-Oil Protection
  • Fuel-efficient, reliable and made for easier starting (Recoil)
  • Provides added protection to extend the life of the generator
  • Economy Mode - Up to 10.5 Hours of Run Time @ 25% Load
  • Adjusts engine speed to the optimum level depending on load
  • Reduces fuel use and engine wear for extended operation
  • 30A 120/240V (L14-30R) Twist-Lock Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord

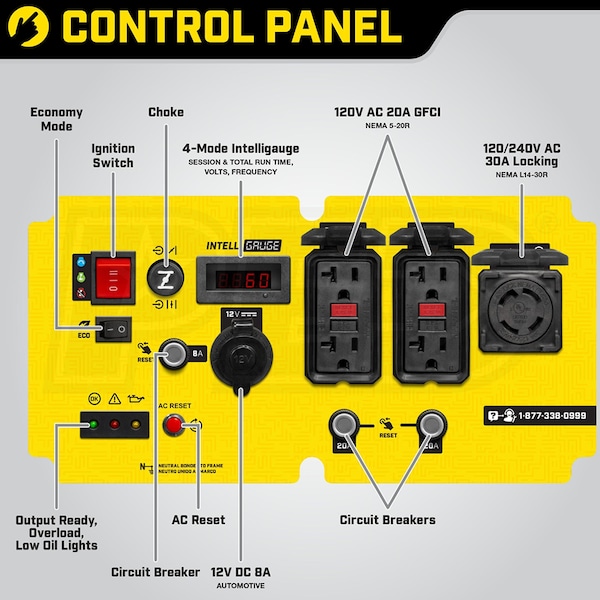

  • Intelligauge™ Digital Display
  • Easily monitor your voltage, frequency & operating hours
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • 8" Never-Flat Wheels & Folding Handle
  • Makes this generator extremely portable
  • 12V DC Outlet
  • Includes 12V/DC USB adapter for charging phones/tablets
  • Also Includes
  • Oil Funnel, 12V charging cables and Owner's Manual
  • Engine Oil NOT Included
  • 3-Year Limited Warranty - EPA & CARB/50 State Certified
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
10-Amp DC - Cigarette Adapter
100520
specs product image PID-105241
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
149 Pounds
CARB Compliant
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
26.6 Inches
Product Width
25.6 Inches
Product Height
23.7 Inches
UPC
817198021973
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
7000 Watts
Surge Watts
8750 Watts
Fuel Type
Gasoline
Rated Amps
29.1 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.2 Gallons
Run Time @ 50% Load
6.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Low THD
Yes
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
