Reliance Controls 30-Amp (120/240V 10-Circuit) Power Transfer System w/ Interchangeable Breakers
Model:
EGD-RELIANCEQ310KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 30-Amp (120/240V 10-Circuit) Power Transfer System
- Everything but the electrician and generator
- Safest Way to Distribute Power
- Eliminates dangerous back-feeds and electrical overloads
- Standard Circuits
- (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
- Versatile Design w/ Interchangeable Breakers
- You determine the right combination for your application
- Built-in Wattage Meter
- Track power input to ensure proper load balancing
- 20-Foot 30-Amp Power Cord (L14-30)
- Flexible design with male and female molded ends
- 30-Amp 4-Prong (L14-30) Power Inlet Box
- Rain-tight design w/ flip-lid keeps dirt and debris out
- Generous wiring space that facilitates rough-in

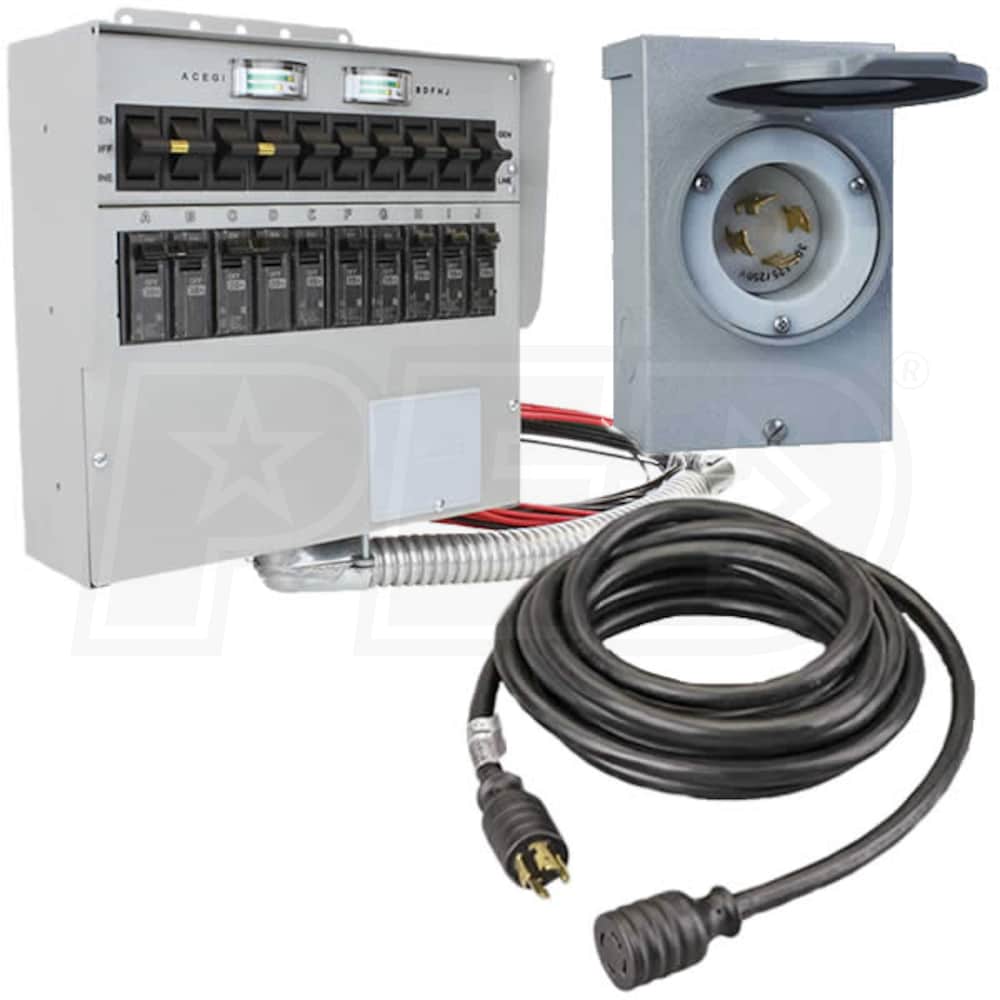

- Kit Includes:
- 30-Amp (120/240V 10-Circuit) Manual Transfer Switch
- 30-Amp (4-Prong 20-Foot) Generator Power Cord
- 30-Amp (4-Prong) Power Inlet Box
- UL Listed & Certified for use by Underwriter Laboratories
- (1) Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A310C)
- (1) Reliance Controls 30-Amp (4-Prong 120/240V) Generator Power Cord (20-Foot) (PC3020)
- (1) Reliance Controls 30-Amp (4-Prong) Power Inlet Box (PB30)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm, and Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
Product Includes
- (1) Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A310C)
- (1) Reliance Controls 30-Amp (4-Prong 120/240V) Generator Power Cord (20-Foot) (PC3020)
- (1) Reliance Controls 30-Amp (4-Prong) Power Inlet Box (PB30)
EGD-RELIANCEQ310KIT
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
35 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
20 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
A310C
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
PC3020M
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
6.5 Pounds
Made in USA
No
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-30R
1
Cord
Cord Length
20 feet
Wire Gauge
10 Gauge
PB-30
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2.5 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
6 Inches
Product Width
4 Inches
Product Height
2.63 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-30R
1
