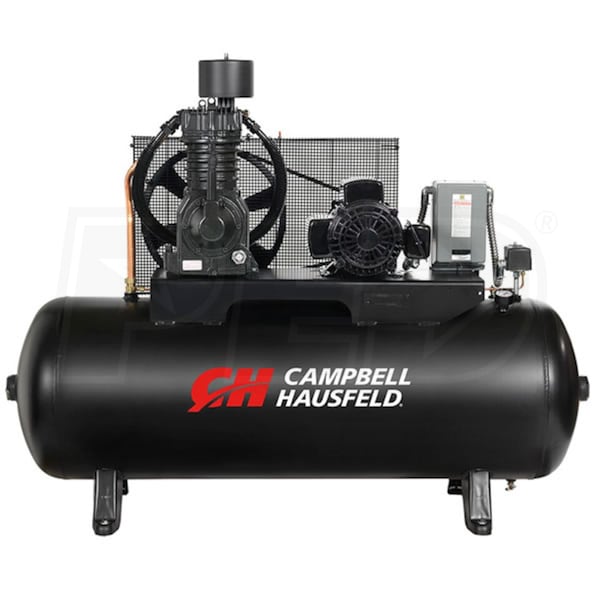

Campbell Hausfeld Commercial 7.5-HP 80-Gallon Two Stage Air Compressor (230V 3-Phase)

Model:

CE7006-230

Write a Review
$3,203.64
Was $3,768.99
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Backordered
Estimated Availability September 28, 2021
Shipping to60601
Free Shipping$3,768.99$3,203.64Buy Now
Free Freight$3,203.64Visit Site
Campbell Hausfeld Commercial 7.5-HP 80-Gallon Two Stage Air Compressor (230V 3-Phase)
Campbell Hausfeld Commercial 7.5-HP 80-Gallon Two Stage Air Compressor (230V 3-Phase)
Model: CE7006-230
$3,203.64
Was $3,768.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (230 Volts)

CFM

24.5

Tank Size

80

  • Commercial Grade 2 Stage Compressor
  • Ideal choice for auto repair facilities & tire repair outlets
  • Rugged Cast Iron Oil Lubricated Two Stage Pump
  • Made for heavy duty commercial & industrial applications
  • Delivers Over 15,000+ Hours Of Pump Life
  • Based on B-10 bearing rating
  • Durable stainless steel valves & ductile iron crankshaft
  • Reliable prescision balanced flywheel & low pump RPM
  • Viton High Temperature O-Rings
  • Superior high pressure sealing compared to paper-type gaskets
  • Advanced design for leak proof sealing
  • 7.5 Horsepower NEMA Motor
  • Totally enclosed metal belt guard; pre-installed & wired starter
  • 80 Gallon ASME Code Tank
  • Certified to 175 PSI maximum pressure for safe operation
  • Automatic Stop/Start Pressure Switch
  • Makes sure air pressure always meets demand
  • Exceptional 3 Year Warranty On Tank & Pump
  • 1 year warranty on all other components
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CE7006-230
specs product image PID-70894
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24.5
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
585 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
68 Inches
Product Height
50 Inches
Power Type
Electric
UPC
045564628048
