The C-Aire 5-hp 80-gallon two-stage air compressor (208-230v 3-phase) fully packaged has been discontinued and is not available for purchase at this time.

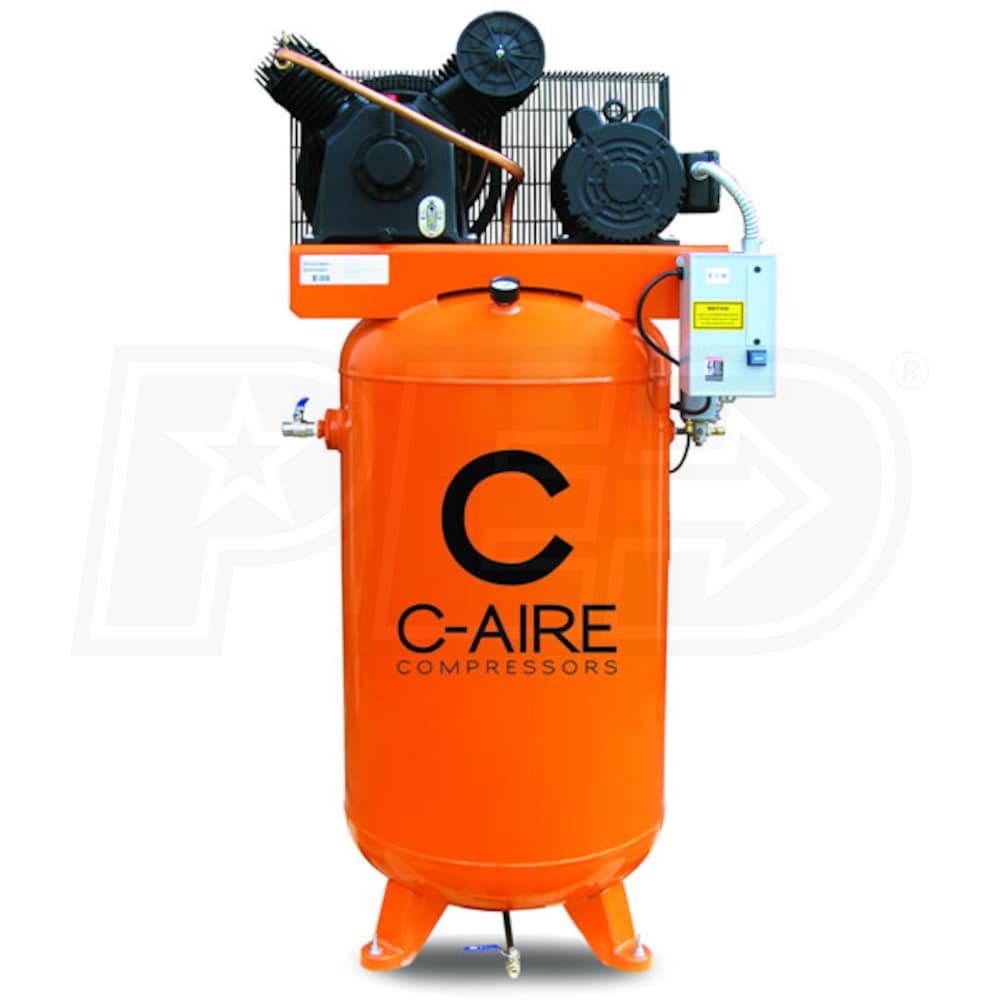

C-Aire 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase) Fully Packaged

Close
C-Aire Power Equipment and Accessories
Model: A050V080-3230FP
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Accessories
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
17
CFM Rated @ 175 PSI
Tank Size
80
Gallons

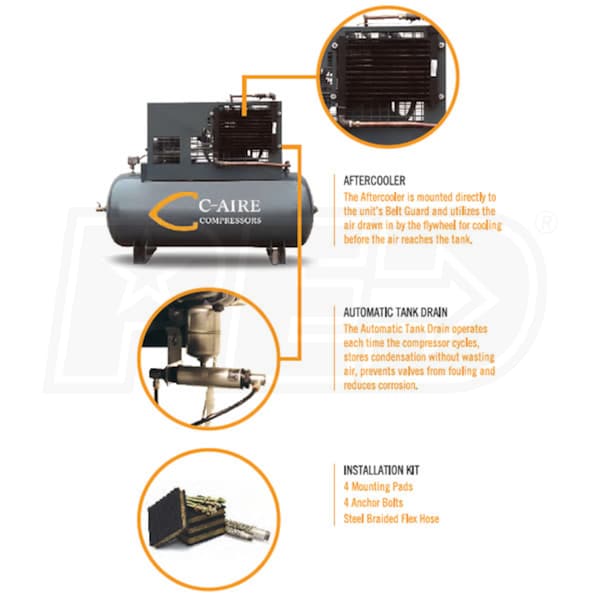

Fully Packaged
Includes aftercooler, automatic tank drain, & installation kit
Affordably reduces moisture almost 60%, prolonging tool life
Makes sure your compressor is set up correctly from the start

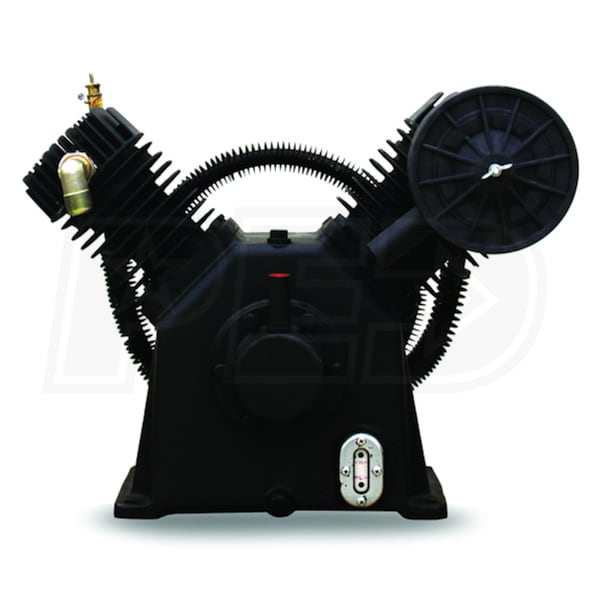

Solid Cast Iron 2 Cylinder, 2 Stage Pump
Delivers 17 CFM at 175 PSI; 200 PSI maximum
Low 885 RPM extends pump life, runs quieter

Belt Guard Mounted Aftercooler
The flywheel draws in air for cooling before it reaches the tank

5-HP Heavy Duty Motor
Pre-wired magnetic starter for simple installation
Ideal for small manufacturing, auto body, & tire shops

80 Gallon Vertical Tank
ASME certified for reliability & safety

Moisture Minder Automatic Tank Drain
Stores condensation without wasting air; reduces corrosion

Installation Kit
Includes vibration pads, anchor bolts, & steel-braided flex hose

1 Year Factory Warranty
Extends to 3 years with AX-W95 & registration (sold separately)
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
17
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
602 Pounds
Product Length
35 Inches
Product Width
24 Inches
Product Height
70 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Model
A050V080-3230FP
Need Help? Ask Our Experts.

Questions before buying? Ask Steve about this item. Sorry, do not submit repair related questions.
