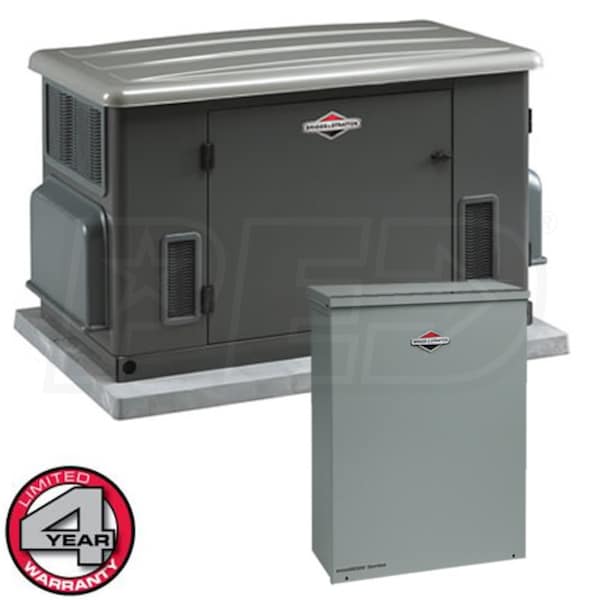

Briggs & Stratton 40305PACK - Smart Circuit Standby Generator System (20kW LP/18kW Natural Gas)

Model:

40305PACK-B

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 40305PACK - Smart Circuit Standby Generator System (20kW LP/18kW Natural Gas)
Briggs & Stratton 40305PACK - Smart Circuit Standby Generator System (20kW LP/18kW Natural Gas)
Model: 40305PACK-B
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Briggs and Stratton Vanguard

  • 4-Year Limited Warranty
  • Includes parts and labor
  • Patented Central Air Technology Using ACCM Transfer Panel
  • Model 71046 Auto Transfer Switch Included
  • Manages demands of up to two 5-ton central air conditioners
  • Intelligently powers your whole home (load dependent)
  • Rated 200amps, service entrance rated
  • Briggs & Stratton V-Twin Commercial Engine
  • Provides years of long lasting, reliable standby power
  • Sound Shield™ Technology
  • Ensures ultra-quiet, neighbor-friendly operation (Only 68 dB)
  • CoastGuard™ All-Climate Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Turnkey Extras:
  • Automatic battery charger
  • Composite mounting pad reduces installation time
  • Synthetic oil for fast starting and longer life
  • Hour meter to track maintenance schedules
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

40305PACK-B
specs product image PID-6037
Overview
Weight
670 Pounds
Made in USA
Yes
Consumer Warranty
4 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
33 Inches
Product Height
30.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
160 ft³/hr
LP Fuel Consumption @ 50% Load
1.95 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (350 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
CC
993 CC
Consumer Engine Warranty
4 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
