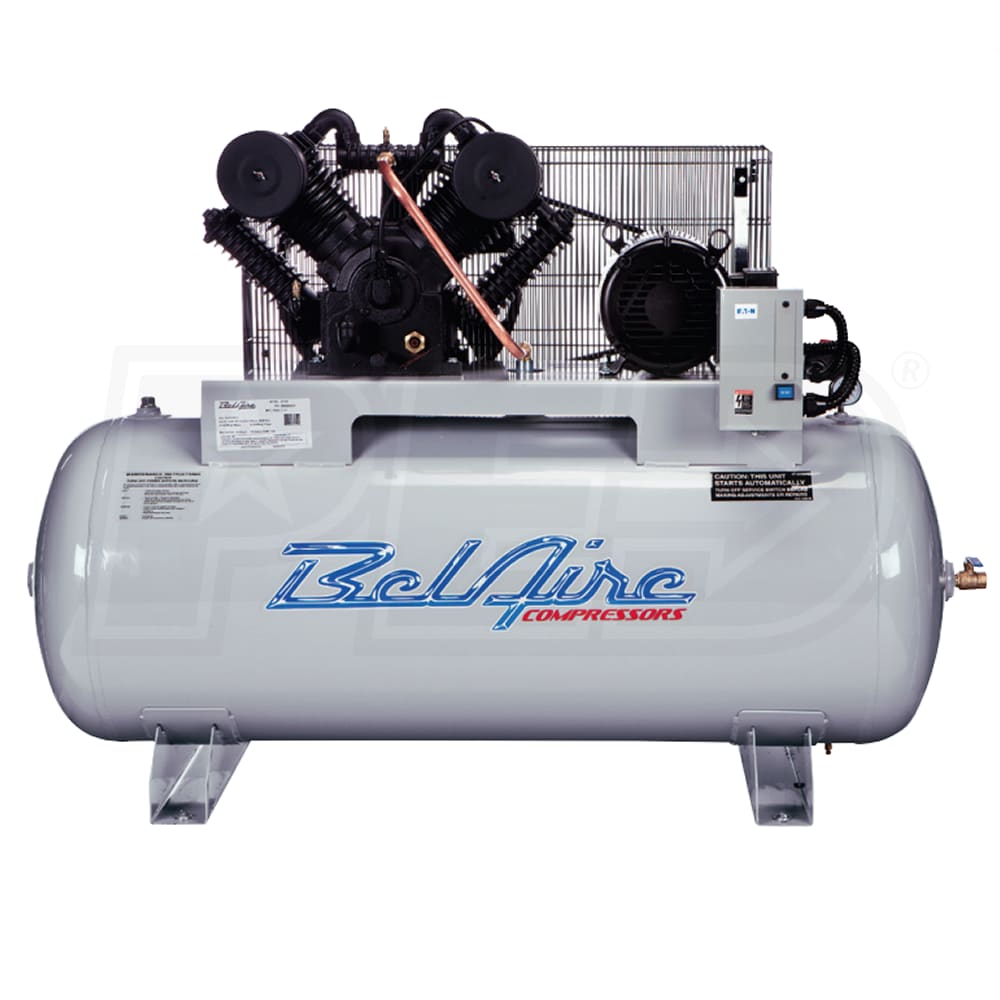

BelAire Iron Series 10-HP 120-Gallon Two-Stage Cast Iron Air Compressor (208-230V 3-Phase)

BelAire Iron Series 10-HP 120-Gallon Two-Stage Cast Iron Air Compressor (208-230V 3-Phase)
Model: 6312H
$2,899.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Free ShippingNo Sales Tax* (Except IL)$2,899.99Buy Now
Free FreightNo Sales Tax* (Except IL)$2,899.99Visit Site
No Sales Tax* (Except IL)$2,974.99Visit Site
Sales Tax Extra $2,829.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
35
CFM Rated @ 90 PSI
Tank Size
120
Gallons
Features
Features

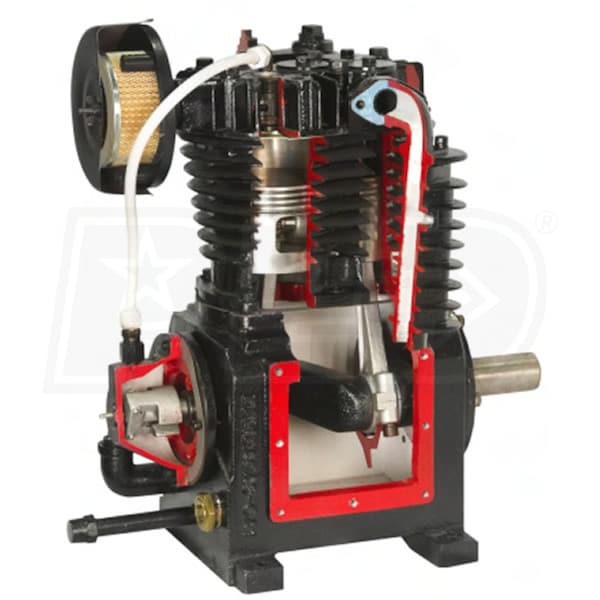

  • Solid Cast Iron 2 Stage Pump
  • Delivers 35 CFM at 100 PSI; 32 CFM at 175 PSI
  • Rugged components provide long-lasting dependability
  • Automotive-Style Rod Bearings & Wrist Pins
  • Smoother running & more durable
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 120 gallon air reserve for big jobs and multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • Dual 208-230 3-Phase Power
  • Easily wires into either your 208V or 230V 3-phase system
  • CPXHT50 dryer recommended (not included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
830 Pounds
Product Length
73 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
35
CFM Rated @ 90 PSI
Tank Size
120
Gallons
Features
Features
  • Solid Cast Iron 2 Stage Pump
  • Delivers 35 CFM at 100 PSI; 32 CFM at 175 PSI
  • Rugged components provide long-lasting dependability
  • Automotive-Style Rod Bearings & Wrist Pins
  • Smoother running & more durable
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 120 gallon air reserve for big jobs and multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • Dual 208-230 3-Phase Power
  • Easily wires into either your 208V or 230V 3-phase system
  • CPXHT50 dryer recommended (not included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
830 Pounds
Product Length
73 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
830 Pounds
Product Length
73 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this BelAire product.
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
How-To Articles
+
Manuals
+


×
