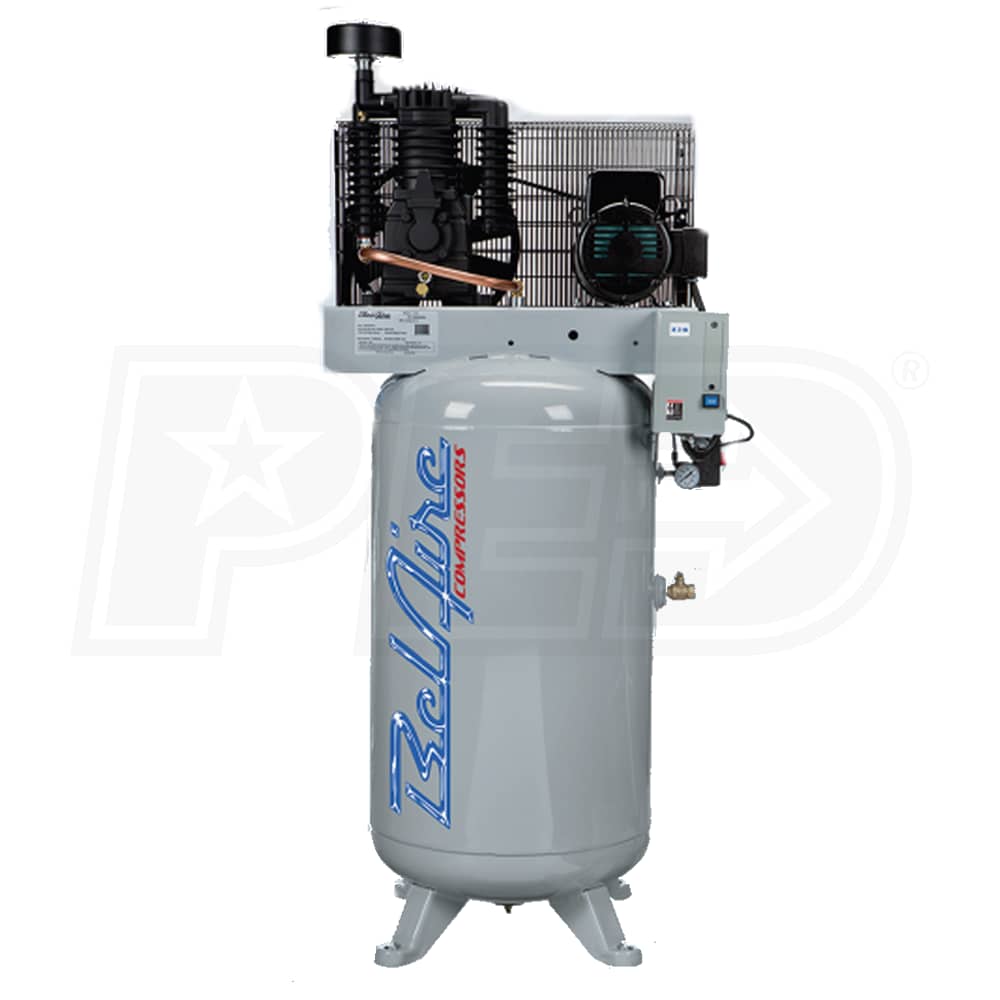

BelAire Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase)

BelAire Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase)
Model: 338VE
(Based on expert analysis, manufacturer ratings and customer reviews)
$2,199.99
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Extended Warranty
Excludes CA

Free ShippingNo Sales Tax* (Except IL)$2,199.99Buy Now
Free FreightNo Sales Tax* (Except IL)$2,199.99Visit Site
No Sales Tax* (Except IL)$2,274.00Visit Site
Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
16.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Features
Features
  • Two-Stage Pump
  • Designed for superior quality & extends the life of the pump
  • Compact Design
  • Ideal for work environments where space is a premium
  • 5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves $$$, No need to purchase additional starter
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • High Flow Belt Guard
  • Fully enclosed design provides added safety
  • Oil Level Sight Glass
  • Easily check the oil level at any time
  • Start-Stop Pressure Switch Control & Stainless Steel Valves
  • Saves time and energy and extends the life of the compressor
  • Elite Series Features Auto Tank Drain & Low Oil Switch
  • Protects your investment for hours of reliable operation
  • Triple-Pass Pump Mounted Aftercooler
  • Keeps your pump running cooler and longer
  • 3/4" Air Outlet
  • 2 year full Factory Warranty
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
16.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
453 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Consumer Warranty
2 Years
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
16.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Features
Features
  • Two-Stage Pump
  • Designed for superior quality & extends the life of the pump
  • Compact Design
  • Ideal for work environments where space is a premium
  • 5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves $$$, No need to purchase additional starter
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • High Flow Belt Guard
  • Fully enclosed design provides added safety
  • Oil Level Sight Glass
  • Easily check the oil level at any time
  • Start-Stop Pressure Switch Control & Stainless Steel Valves
  • Saves time and energy and extends the life of the compressor
  • Elite Series Features Auto Tank Drain & Low Oil Switch
  • Protects your investment for hours of reliable operation
  • Triple-Pass Pump Mounted Aftercooler
  • Keeps your pump running cooler and longer
  • 3/4" Air Outlet
  • 2 year full Factory Warranty
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
16.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
453 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
16.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
453 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Consumer Warranty
2 Years
