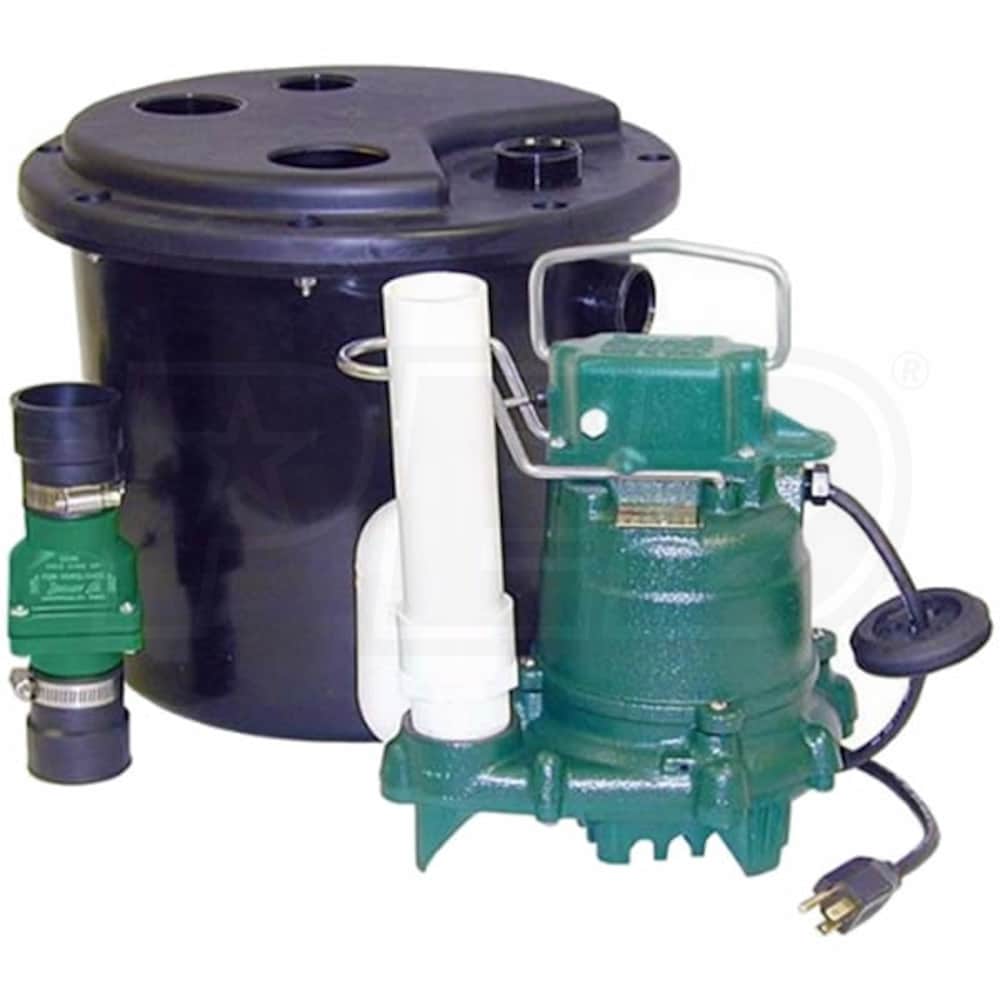

Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch

Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch
Model: 105-0001
$254.40
In-Stock
Ships Thursday, Jan 18th
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$254.40Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$254.40Visit Site
No Sales Tax* (Except IL)$254.40Visit Site
Sales Tax Extra $276.30Visit Site
In-Stock
Ships Thursday, Jan 18th
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
  • Product Description
  • 78
    Reviews
  • 6
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Remote Drain Pump & Laundry Tray System
  • Pre-packaged for easy installation
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base w/ Built-In Strainer
  • Corrosion resistant design, easily passes laundry lint
  • 1/3 HP Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Non-Clogging Vortex Impeller
  • Capable of passing 1/2" diameter solids
  • Vertical Float Switch
  • Solid and buoyant polypropylene design

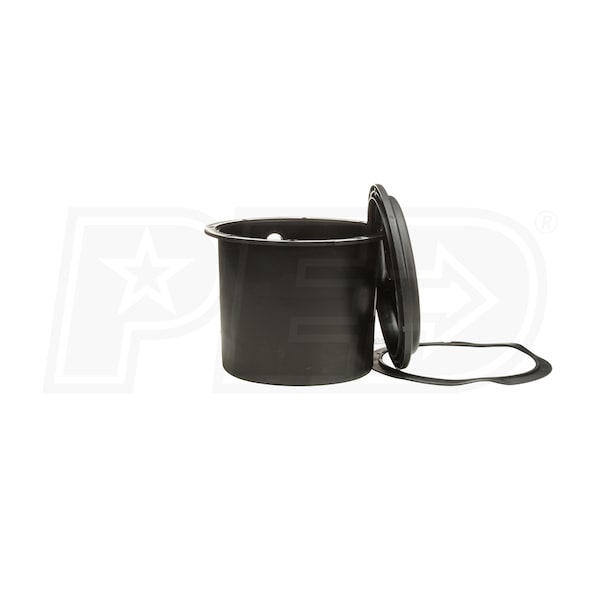

  • 14.5"W x 12.5"H Polyethylene Basin
  • High capacity, corrosion resistant w/ Gas Tight Cover
  • Threaded Connection For Easy Installation
  • 1-1/2" Compression Intake, 2" NPT Vent & 1-1/2" NPT Discharge
  • 1-1/2" Slip-On Check Valve
  • Engineered for longer life & quiet operation
  • 9-Foot Power Cord For Easy Connection
  • UL Listed
Specifications
Base
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
9.3
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Overview
Made in USA
Yes
Weight
30 Pounds
Product Width
14.5 Inches
Product Height
12.5 Inches
Consumer Warranty
3 Years
UPC
053514012953
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Remote Drain Pump & Laundry Tray System
  • Pre-packaged for easy installation
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base w/ Built-In Strainer
  • Corrosion resistant design, easily passes laundry lint
  • 1/3 HP Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Non-Clogging Vortex Impeller
  • Capable of passing 1/2" diameter solids
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • 14.5"W x 12.5"H Polyethylene Basin
  • High capacity, corrosion resistant w/ Gas Tight Cover
  • Threaded Connection For Easy Installation
  • 1-1/2" Compression Intake, 2" NPT Vent & 1-1/2" NPT Discharge
  • 1-1/2" Slip-On Check Valve
  • Engineered for longer life & quiet operation
  • 9-Foot Power Cord For Easy Connection
  • UL Listed
Specifications
Base
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
9.3
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Overview
Made in USA
Yes
Weight
30 Pounds
Product Width
14.5 Inches
Product Height
12.5 Inches
Consumer Warranty
3 Years
UPC
053514012953
Product Specs
+
Specifications
Base
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
9.3
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Overview
Made in USA
Yes
Weight
30 Pounds
Product Width
14.5 Inches
Product Height
12.5 Inches
Consumer Warranty
3 Years
UPC
053514012953
Reviews
(78)
+
Zoeller 105-0001 Reviews & Ratings
96% of Reviewers Recommend This Product
Product Q&A
(6)
+
Jim, I need to replace my Flotec laundry tray pump system which is getting ready to celebrate its 20th birthday. I really want to buy the Zoeller 105-0001. It looks like a great product. Could I get a copy of the installation manual with the dimensions for the tank and the input and output locations? Plus, I don't see a float switch. What triggers the pump to turn on and off? Thank You, Ray
Ray Brennan
from Pennsylvania
July 05, 2016
Read Response +
Hide Response -
Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch I see this is pictured with a (tank) What all comes with this ? for $214.00
John S
from Texas
June 08, 2015
Read Response +
Answer

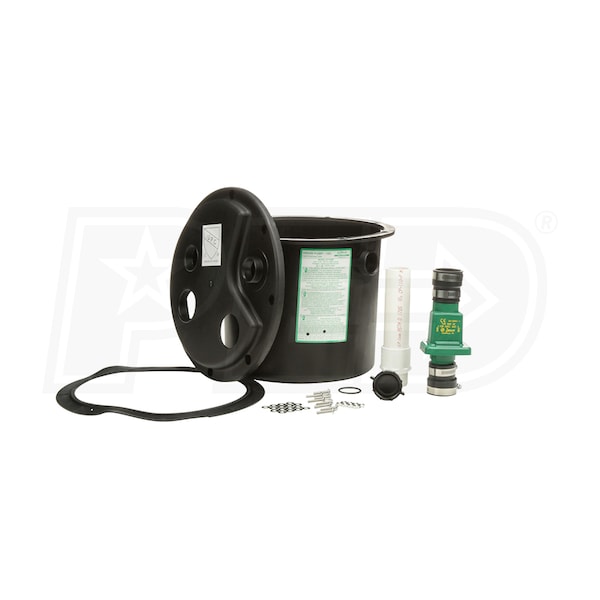

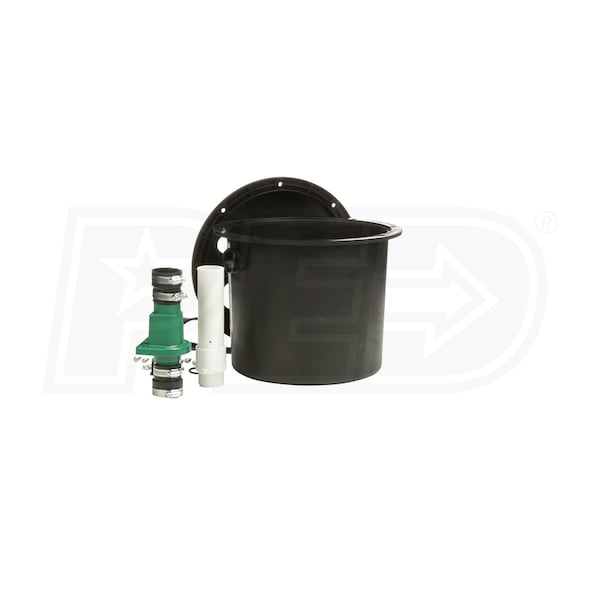

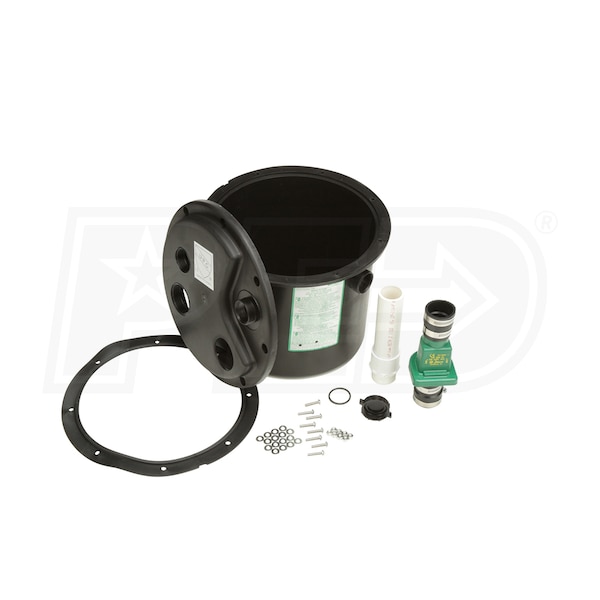

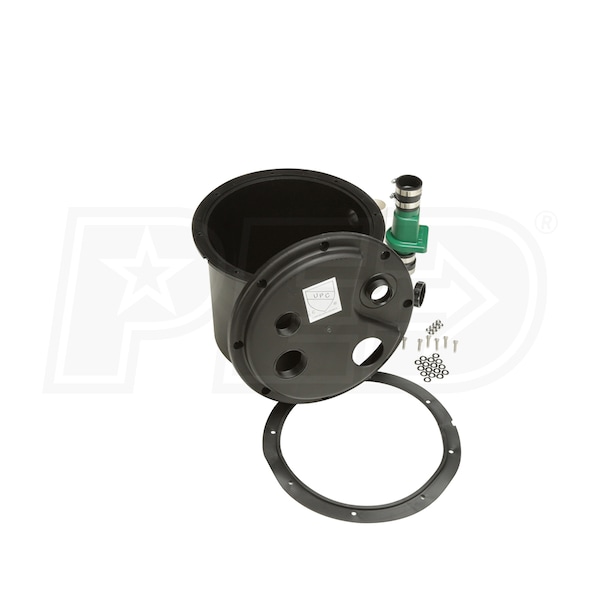

The Zoeller 105-0001 Remote Sink/Drain Pump System includes the M53 Zoeller pump, the check valve, 15.75" x 15.5" polyethylene basin and cover, PVC discharge pipe from the pump to the top of the basin, hardware and cover seal and instruction manual.
Hide Response -
How many vertical feet and horizontal feet can this pump?
Katherine
from Virginia
January 02, 2015
Read Response +
Answer
The Zoeller 105-0001 can handle a maximum total head of 19 feet. That said, you typically don't want to max out the ability of the pump so I would recommend keeping that total head at more in the 12 - 16 foot range. The total head takes into account the total vertical lift and FRICTION LOSS based on long horizontal runs and the number of elbows that you incorporate into your discharge configuration.
Hide Response -
Jim, Can the discharge on these be reduced to fit a tight install. Also Can it use different style vent
Lloyd
from Pennsylvania
July 09, 2014
Read Response +
Answer
The Remote Sink/Drain Systems must be installed using the same diameter discharge and venting as instructed in the manual, 1-1/2" discharge and 2" vent. Venting must be done in accordance to local codes. This Zoeller system does however, allow for a few different installation methods, based on your clearance. DO NOT USE AN AUTOMATIC PLUMBING VENT DEVICE SIMILAR TO A "PRO-VENT". Some states require this product to be installed by a licensed plumber.
Hide Response -
Dear Jim- I want to make sure this is what I'm looking for because the drain basin seems small. I would like to drain a washing machine into a basin and have that pumped into a drain line, are these the correct products, are these basins large enough to handle the discharge from a washing machine? Thank You
Robert P
from Pennsylvania
November 18, 2013
Read Response +
Answer
The basin on the Zoeller is 5.8 gallons. The pump will handle 2040GPH at a 10 foot head and should not have any problems handling the discharge from any washing machine.
Hide Response -
Installing an underground sump pump to drain water coming under the house. Was thinking about ordering the following kit, but I am not sure if the basin is the correct one for a sump pump or if we should switch it to something bigger. Zoeller 1050001 13 HP M53 Remote SinkDrain Pump System w Vertical Float Switch Thank you, Nestor Ho
Nestor H
from Texas
October 21, 2013
Read Response +
Answer
Thank you for your interest in Sump Pumps Direct. It really depends on how you plan on getting the water into the sump basin. If you are doing a typical basement INSTALLATION, I would advise something more like the Zoeller model M53 or M98, depending on your water table. I would then suggest installing a standard SUMP BASIN and COVER. You can then tie this in to a french drain or you can drill holes in the basin to allow the water to seep through and into the basin for discharge by the pump. If you are looking to install this system outdoors or in a crawl space, the Liberty 1/3 HP Cast Iron Crawl Space Sump Pump Kit, model CSP-257 might be a better choice.
And don't forget the CHECK VALVE.
Hide Response -
