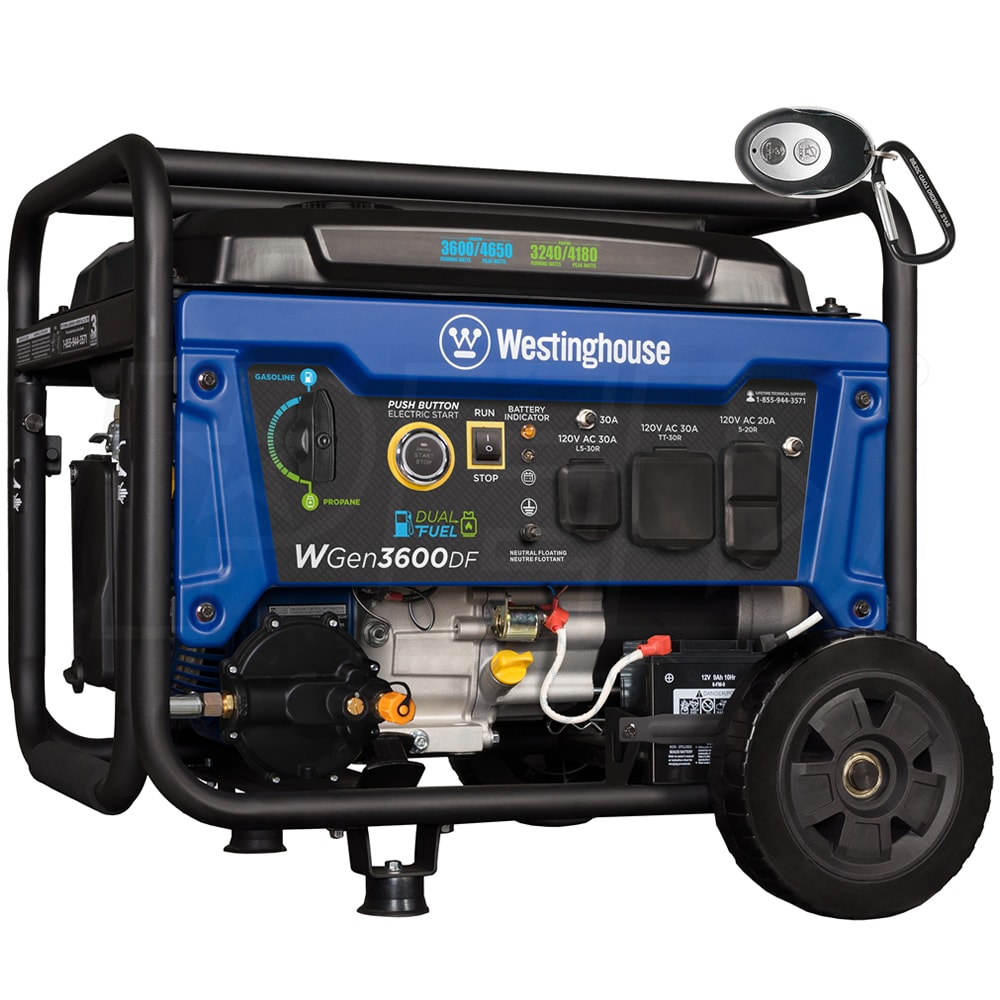

Westinghouse WGen3600DF - 3600 Watt Dual Fuel Electric Start Portable Generator w/ Wireless Remote Start (CARB)
Model: WGEN3600DF
.jpg)
+
Share This Product
-
Product Description
-
28Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
3,600
Rated Watts
Surge Watts
4,650
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
3,600
Surge Watts
4,650 Starting Watts
Fuel
Gasoline/LP
Engine
Westinghouse
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Westinghouse WGen3600DF Electric Start Portable Dual-Fuel Generator
- Provides up to 3,600 running watts & up to 4,650 starting watts on gasoline
- Provides up to 3,240 running watts & up to 4,180 starting watts on propane
- Push Button Electric Start (Battery Included) w/ Wireless Remote
- Allows for quick and easy starting
- 212cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 4-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 13.5-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
- L5-30R 120V Twist-lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- 8" Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
4180 Watts
Rated Amps
30 Amps
Portability Kit
Never Flat Wheels
Tank Size
4 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
No
Hour Meter
No
Voltage Meter
No
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
212 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
112 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.23 Inches
Product Width
22.8 Inches
Product Height
21.3 Inches
UPC
855464003254
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
Grade
Style
Run Watts
3,600
Rated Watts
Surge Watts
4,650
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
3,600
Surge Watts
4,650 Starting Watts
Fuel
Gasoline/LP
Engine
Westinghouse
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Westinghouse WGen3600DF Electric Start Portable Dual-Fuel Generator
- Provides up to 3,600 running watts & up to 4,650 starting watts on gasoline
- Provides up to 3,240 running watts & up to 4,180 starting watts on propane
- Push Button Electric Start (Battery Included) w/ Wireless Remote
- Allows for quick and easy starting
- 212cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 4-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 13.5-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
- L5-30R 120V Twist-lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- 8" Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
4180 Watts
Rated Amps
30 Amps
Portability Kit
Never Flat Wheels
Tank Size
4 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
No
Hour Meter
No
Voltage Meter
No
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
212 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
112 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.23 Inches
Product Width
22.8 Inches
Product Height
21.3 Inches
UPC
855464003254
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
4180 Watts
Rated Amps
30 Amps
Portability Kit
Never Flat Wheels
Tank Size
4 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
No
Hour Meter
No
Voltage Meter
No
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
212 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
112 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.23 Inches
Product Width
22.8 Inches
Product Height
21.3 Inches
UPC
855464003254
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Does this have a 220 volt circuit?
Jon
from Massachusetts
December 15, 2020
Answer
No, this unit is rated only up to an output of 120V.
