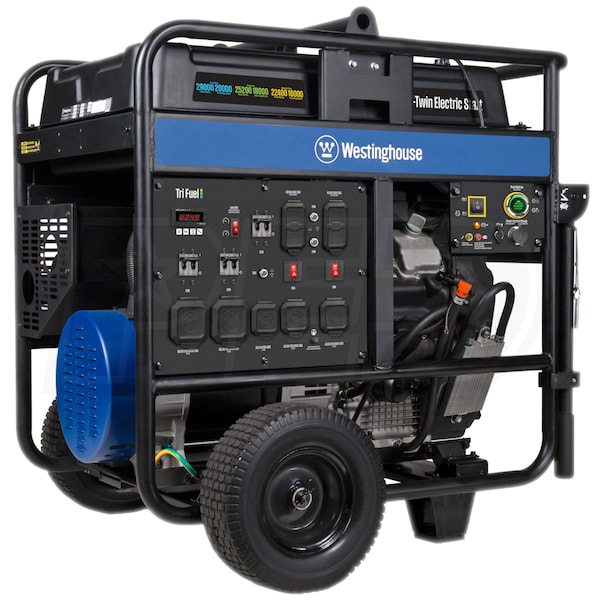

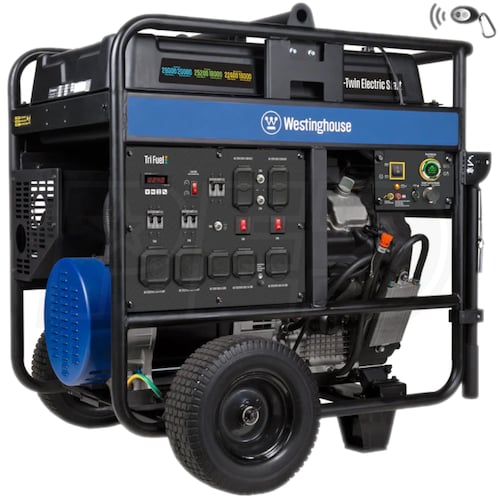

Westinghouse WGen20000TFc - 20,000 Watt Electric Start Tri-Fuel Portable Generator w/ CO Sensor & Wireless Remote Start (49-State)
Model:
WGEN20000TFC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Alberto, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
20,000 Rated Watts
Surge Watts
28,000
Starting Watts
Fuel
LP/Natural Gas/Gasoline
Engine
Westinghouse
- HUGE PORTABLE POWER

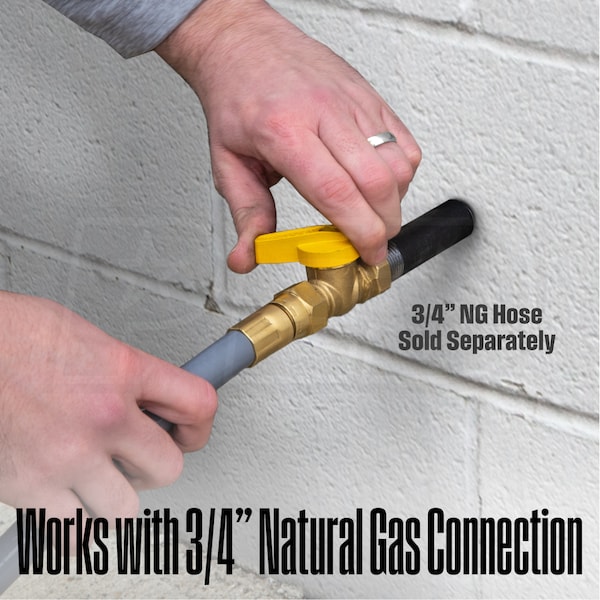

- Gasoline: 28,000 peak watts and 20,000 running watts; Propane: 25,200 peak watts and 18,000 running watts; Natural gas: 22,400 peak watts and 16,000 running watts
- Up to 13 hrs. of run time at 25% load on a 17.2-gal. tank with gauge; perfect backup power source for larger homes
- TRI FUEL WESTINGHOUSE WORKHORSE

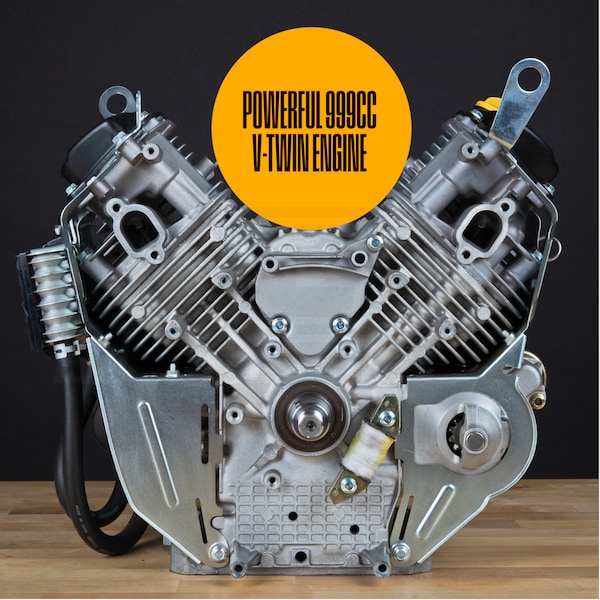

- Powered by a heavy-duty 999cc Westinghouse V-Twin OHV engine featuring a cast-iron sleeve; reinforced steel handles with quick-release pins
- Automatic low-oil shutdown; low idle mode; digital readout displaying lifetime run hours, volts, and frequency
- PLUG IN, POWER UP

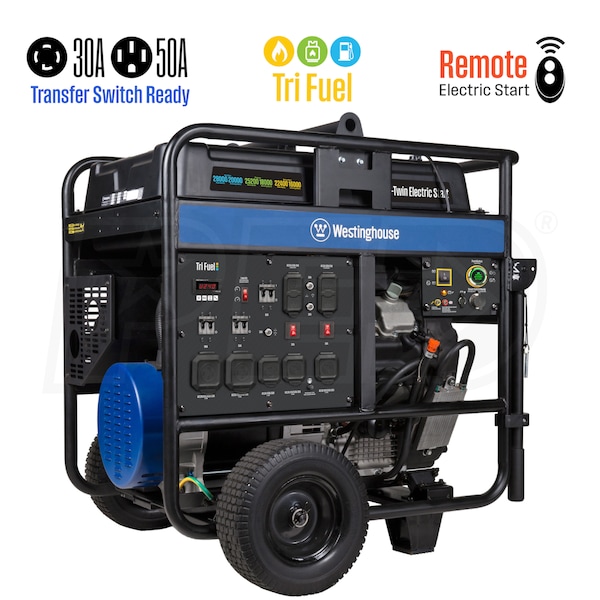

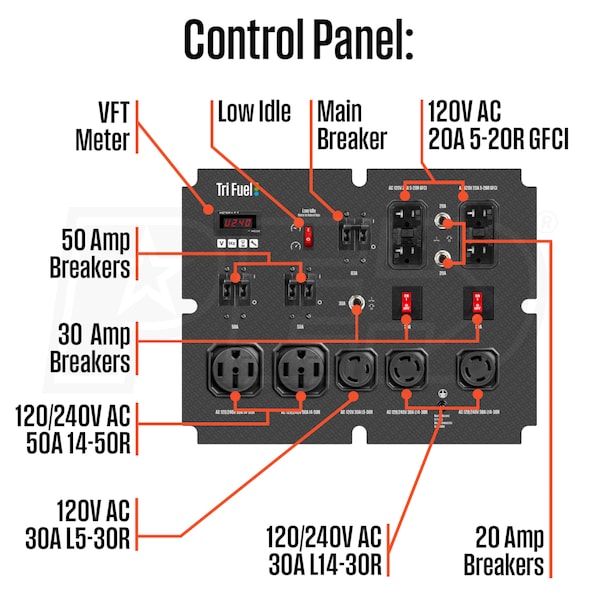

- Two 120/240V 14-50R 50A outlets, two 120/240V L14-30R 30A outlets, all transfer switch and interlock kit ready; one 120V L5-30R 30A outlet, four GFCI 120V 5–20R 20A standard duplex outlets

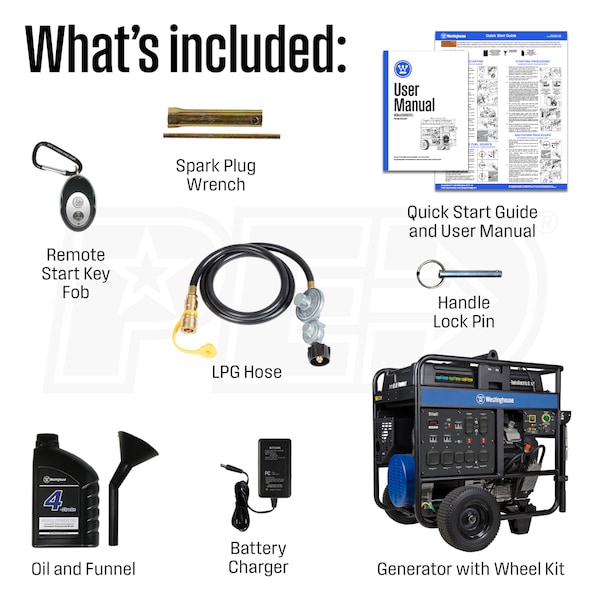

- All have rubber covers; includes oil, funnel, and setup guide to get you going right away
- MAX POWER OPTION
- With high output designed for easy whole-home backup, our exclusive 125A 240V AC lug connector
- Lets a licensed electrician hardwire the generator directly to your home for full power delivery without the limits of cords or outlets
- BIG AND BUILT TO MOVE

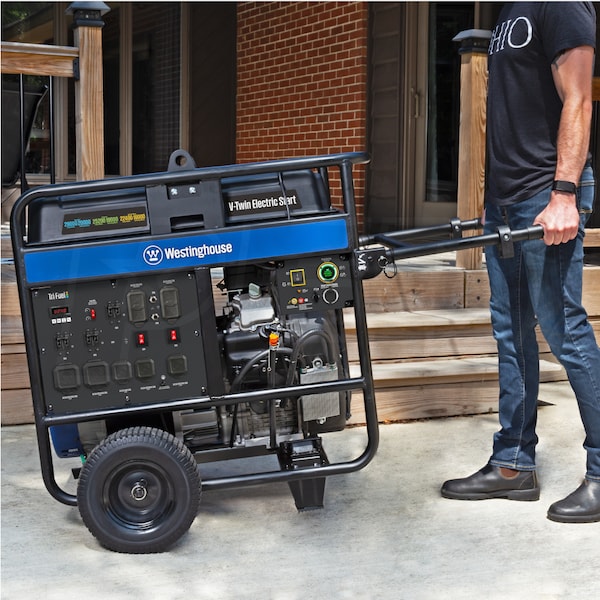

- Large, never-flat wheels, foldable steel handles and lift bracket for easy maneuvering, so you get best-in-category power wherever and whenever you need it for home backup or jobsite
- The power of a stationary unit, but with portability--so it’s the best of both worlds
- POWER YOU CAN TRUST
- All Westinghouse generators are functionally tested in the factory and may contain minimal residual oil and/or fuel odor; EPA-compliant
- Backed by a 3-year limited service, labor, and parts warranty with our nationwide Westinghouse Customer Service and Support Network
- EPA Compliant - Non-CARB Compliant - NOT FOR SALE IN CALIFORNIA
The Westinghouse WGen20000TFc tri fuel portable generator with CO sensor produces up to 28,000 peak watts and 20,000 running watts and runs on gasoline, propane, or natural gas. The heavy-duty 999cc 4-stroke OHV Westinghouse V-Twin engine features a durable cast-iron sleeve and runs for up to 13 hours at 25% load on a 17.2-gallon gas tank, keeping you powered through the day or night with a built-in fuel gauge, automatic low-oil shutdown, and GFCI outlets. Push button electric start makes starting the WGen20000TFc effortless, while the remote start key fob adds convenience from a distance. Its intuitive control panel highlights two 14-50R 50A and two L14-30R 30A outlets. Both are transfer-switch and interlock kit ready and are capable of powering major appliances like air conditioners, refrigerators, sump pumps, as well as lights and entertainment centers simultaneously with a single cord hookup. It also includes a 120V L5-30R 30A outlet. Our exclusive 125A 240V AC lug connector lets a licensed electrician hardwire the generator directly to your home for full power delivery. A VFT data center shows voltage output, frequency, and lifetime hours to keep you updated on real-time information and maintenance alerts. Easily portable with heavy-duty, never-flat wheels, handles, and lift bracket, it’ll have your house, travel trailer, or jobsite powered in seconds. It’s backed by a 3-year limited warranty, lifetime tech support, and our Westinghouse Nationwide Service Network.
Specifications
Plug Types







WGEN20000TFC

General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
557 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
38 Inches
Product Width
35 Inches
Product Height
40.4 Inches
UPC
850032657785
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
20000 Watts
Surge Watts
28000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Power Capacity
16000 Watts
LP Power Capacity
18000 Watts
Rated Amps
83.3 Amps
Portability Kit
Never Flat Wheels
Tank Size
17.2 Gallons
Run Time @ 50% Load
10.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Emergency
CO Sensing
Yes
Low THD
Yes
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start + Remote
CC
999 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
3
NEMA 14-50R
2
