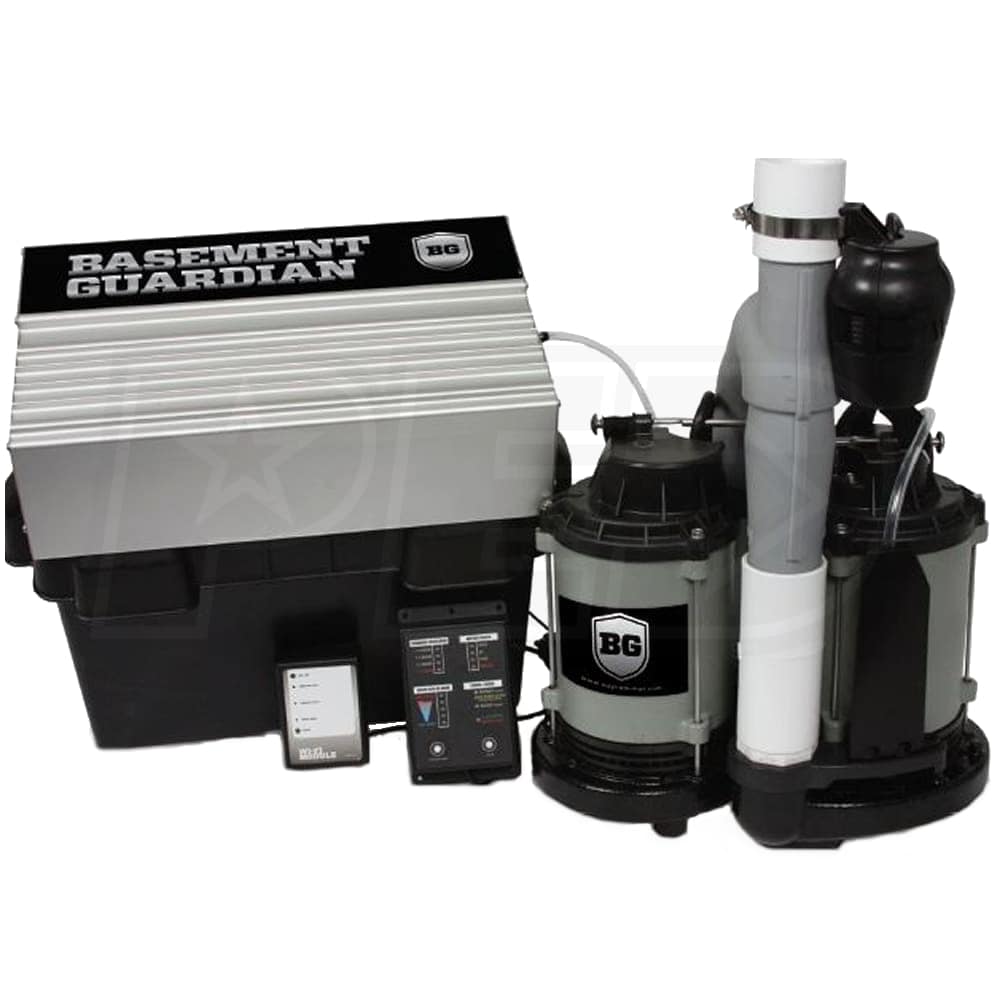

Wayne BGSP50 - Basement Guardian™ Wireless Enabled 1/2 HP Combination Sump Pump System
Model:
BGSP50
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Combo
GPH
5100 Gallons
Switch Type
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Wayne BGSP50 - Basement Guardian Sump Pump System
- Assembled in the USA with foreign and domestic parts
- Fully Redundant, Dual Independent Processor
- Provides total system control
- Continuous Monitoring

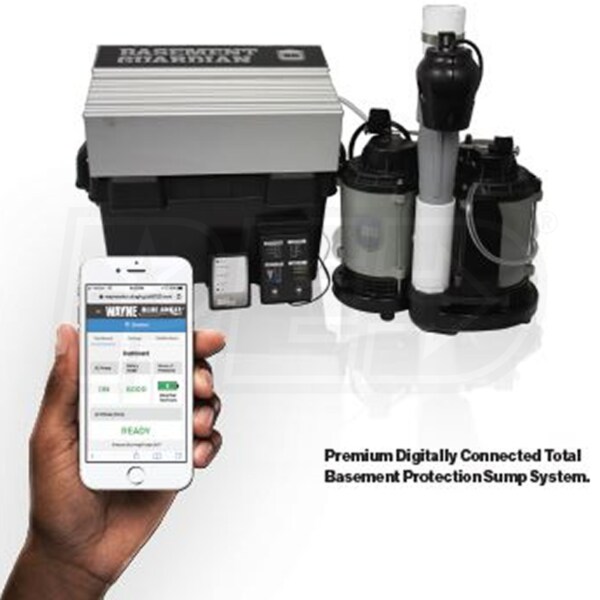

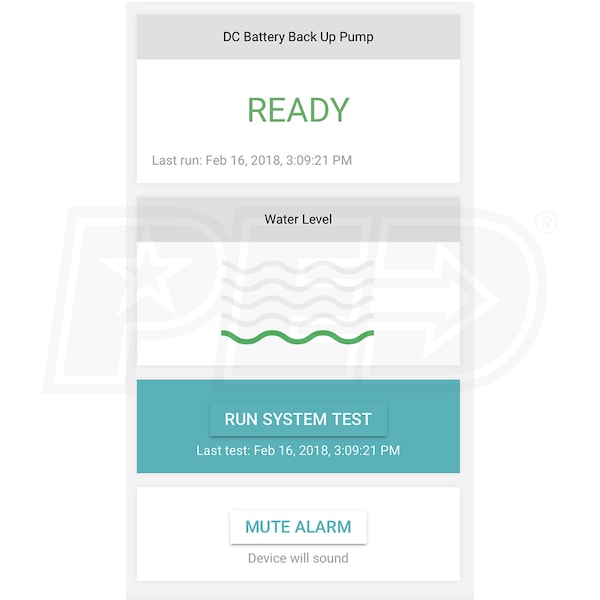

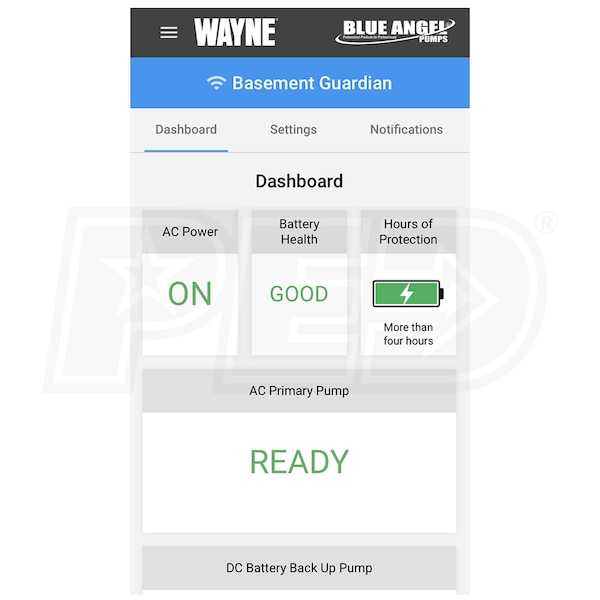

- Free Apple IOS and Android App works even when power is out
- Local Link™ Technology
- Transmits data to app via patent-pending technology when home power & Wifi router is down
- Remote Display Box
- Provides easy-to-read data for pumping power, battery health & water level, via bright LEDS
- Pre-Assembled and Pre-Plumbed Design For Easier Installation
- Nested construction, drop-in ready for easy install in about 15 mins
- Epoxy-Coated Steel & Cast Iron Construction Pumps
- Corrosion-resistant design provides long life in sump applications
- 1/2 HP, Thermally Protected 120V PCS Motor (Primary)
- Energy efficient, oil-filled design for quiet operation & extended motor life
- High Flow 12V Backup Sump Pump
- Keeps the water flowing even when power is out
- Solid State Air Switch
- Delivers more reliable operation compared to mechanical switches
- Plus a reed float switch in a protective cage for added peace of mind
- Unique Top Suction Design w/ Glass Reinforced Polycarbonate Impeller
- Reduces clogging & prevents air lock occurrences
- 12V Battery Charger & Thermoplastic Battery Box
- Smart charging technology for maximum battery efficiency
- Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
- Recommended for use with the WAYNE WSB1275, 75 AMP hr maintenance free battery
- GROUP 27 BATTERIES ONLY
- 5-Year Limited Warranty
- For Indoor Use Only
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
BGSP50
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Solid State Air Switch
GPH @ 0 feet
5100
GPH @ 5 feet
4560
GPH @ 10 feet
3840
GPH @ 15 feet
3000
Backup GPH @ 0 feet
2940
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Backup GPH @ 5 feet
2640
Backup GPH @ 10 feet
2040
Backup GPH @ 15 feet
1440
Submersible
Yes
Remote Monitoring
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
66 Pounds
Consumer Warranty
5 Years
Product Length
13.5 Inches
Product Width
9 Inches
Product Height
15.5 Inches
UPC
040066218346
Accessories
Wi-Fi enabled
Yes
