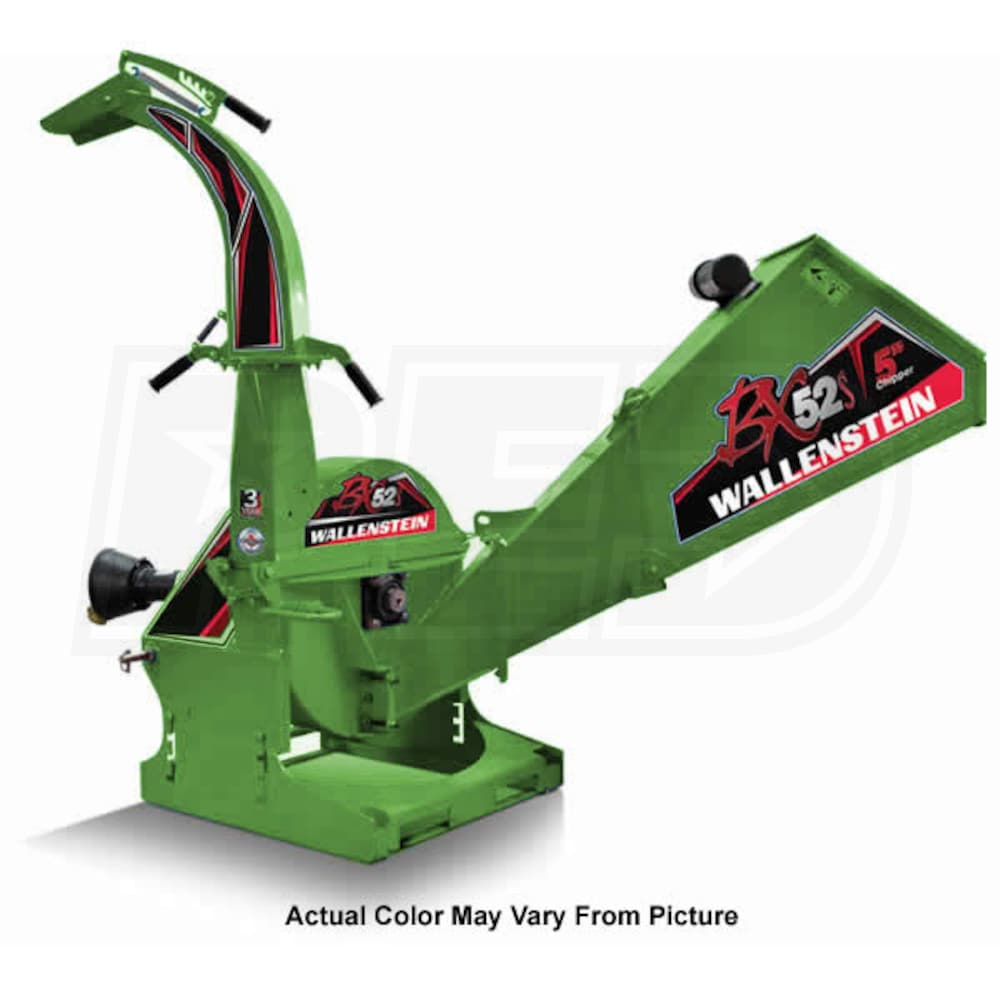

Wallenstein (5") 540-1000 RPM PTO Chipper - Green

Model:

BX52S-GRN

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Wallenstein (5
Wallenstein (5") 540-1000 RPM PTO Chipper - Green
Model: BX52S-GRN
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • BXs Series 52S 5" Wood Chipper - Green
  • Don't settle for just any color, match your tractor for that OEM look
  • Directly Connect To Your Tractor's PTO (540-1000 RPM)
  • Power is transferred directly into a chipping action
  • 18-50 HP required for operation & 40-45 HP to reach max capacity
  • 24.75" Oversized Heavy Duty Rotor w/ 4-Knives @ 125 Lbs.
  • Improves chipping by allowing for increased tip speeds
  • 4-Bolt Hardened Reversible Steel Cutting Blades
  • Provides consistent chipping of limbs up to 5" in diameter
  • 66"(H) Dual Handle 270° Chute w/ Adjustable Hood Defelector
  • Versatile discharge positons for more time chipping & less time moving
  • (Manual) Self-Feed System & Internal Dual-Blade Twig Breaker
  • Pulls in limbs and braches while helping to improve materia discharge
  • No-Tool, 20" x 24" Fold-Up Hopper w/ Latch Lock
  • 5" x 10" Feed housing for braches up to 5" diameter and 10" slabs
  • Cat. I & II 3-Point Hitch w/ Adjustable Lower Ski (6" of Travel)
  • Includes PTO drive line compatible with many tractors/hitches
  • Bearing Plate Protection
  • Extra wear reinforcement increases lifespan of the chipper
  • 5-Year Consumer Warranty - Made In Canada
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

BX52S-GRN
specs product image PID-57916
Engine
Tractor HP
18-50 HP
PTO RPM
1000 RPM
Feed Chute
Wood Diameter
5 Inches
Feed Type
Gravity
Replaceable Blades
Yes
Discharge Chute
Discharge Chute Material
Steel
Overview
Assembly Required
Yes
Weight
505 Pounds
Made in USA
No
Consumer Warranty
5 Years
Commercial Warranty
2 Years
Product Style
Chipper
Product Length
43 Inches
Product Width
55 Inches
Product Height
66 Inches
Power Type
PTO
