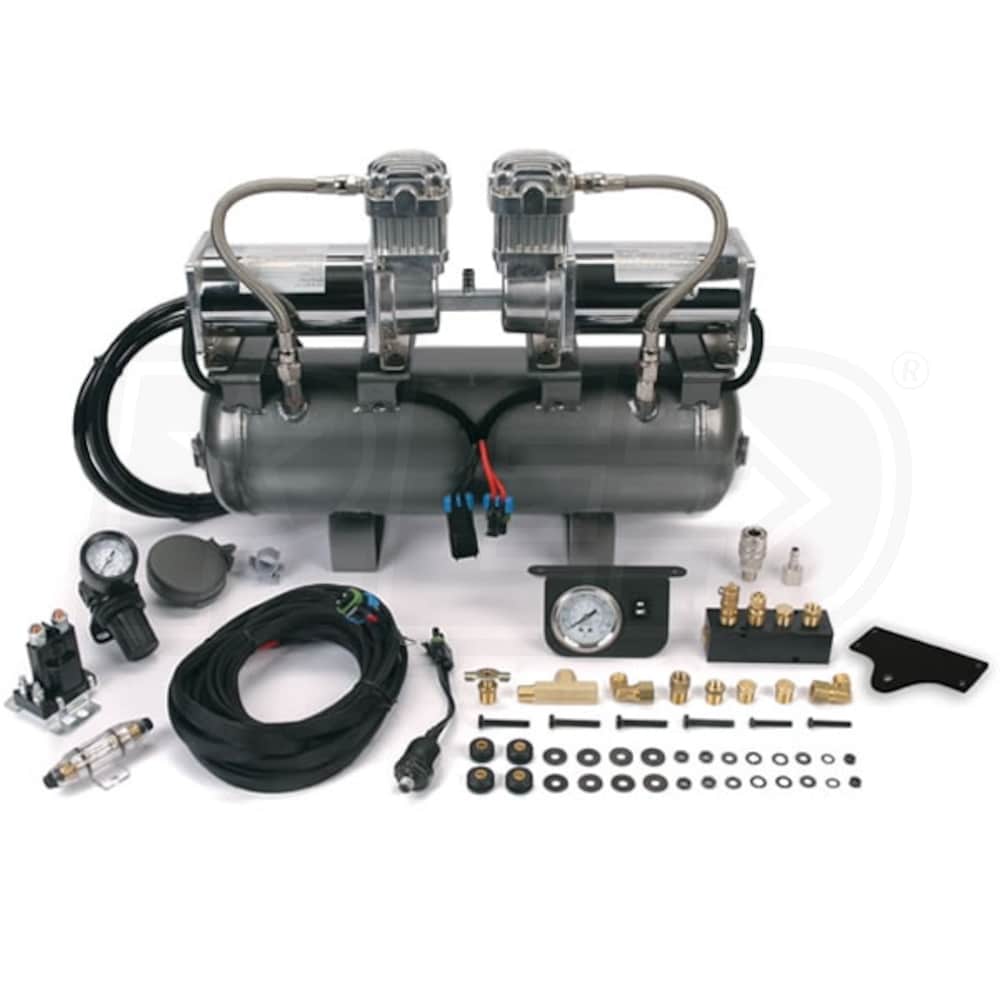

VIAIR 2ON2 12-Volt 2-Gallon 150-PSI Bolt-On High-Speed Universal Platform System (33% Duty Cycle @ 100 PSI)

Model:

30016

Write A Review
$774.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

VIAIR 2ON2 12-Volt 2-Gallon 150-PSI Bolt-On High-Speed Universal Platform System (33% Duty Cycle @ 100 PSI)
VIAIR 2ON2 12-Volt 2-Gallon 150-PSI Bolt-On High-Speed Universal Platform System (33% Duty Cycle @ 100 PSI)
Model: 30016
$774.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

2.46

Tank Size

2

  • High Pressure 12-Volt On-Board System For Up To 40" Tires
  • 2 high-output compressors are mounted to a 2-gallon, 150 PSI, 5 port air tank
  • All required components are included to complete the installation
  • Billet 1/4" NPT x 6-Port Manifold
  • Easy-to-install wiring harness & manifold make wiring & plumbing straightforward
  • Universal models are not equipped with a crossmember mounting bracket.
  • Dependable Permanent Magnetic Motor
  • 33% duty cycle at 100 PSI allows 20 minutes on, 40 minutes off run time; sealed pressure switch 110-PSI on, 145-PSI off
  • Automatic thermal overload protector prevents the compressor from overheating
  • Two 400C Air Compressors
  • Quickly & efficiently puts out 4.55 CFM flow at zero PSI head pressure; 2.46 CFM @ 90 PSI
  • Air Filter Housing with Installed Element
  • Two replacement air filter elements are included
  • Quality Connections
  • Two 1/4" stainless steel braided leader hoses with JIC connectors; 15 feet of DOT air line
  • Delphi connectors throughout; also includes two 1/4" BSP Adapters for Air Lockers
  • Illuminated Dash Panel Air Pressure Gauge
  • Marked for 0-160 PSI; easy to read at a glance
  • 60-Amp Fuse & Fuse Holder
  • 59 amp maximum amp draw; includes an 80-amp relay
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

30016
specs product image PID-75146
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
59
Engine
HP
.25
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.46
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
30 Pounds
Consumer Warranty
1 Year
Product Length
18.5 Inches
Product Width
5.9 Inches
Product Height
13.5 Inches
Power Type
Electric
UPC
818114003165
