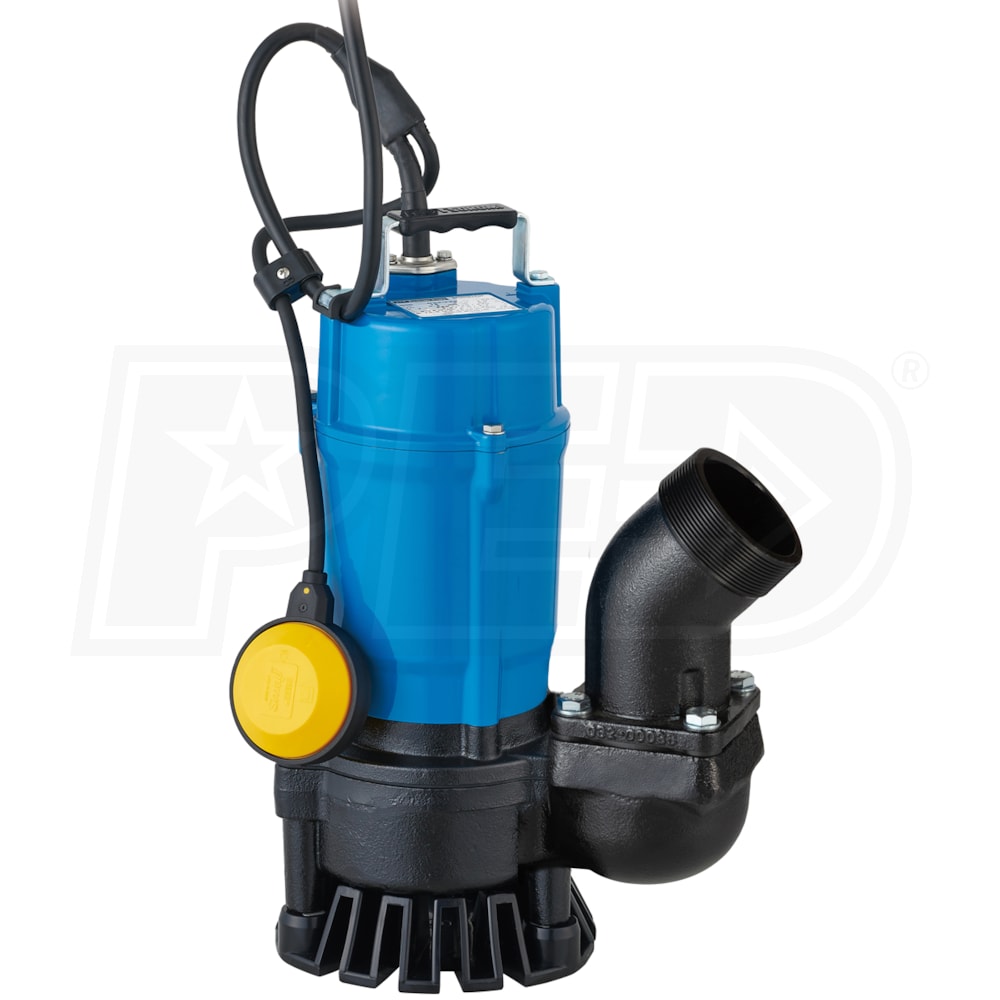

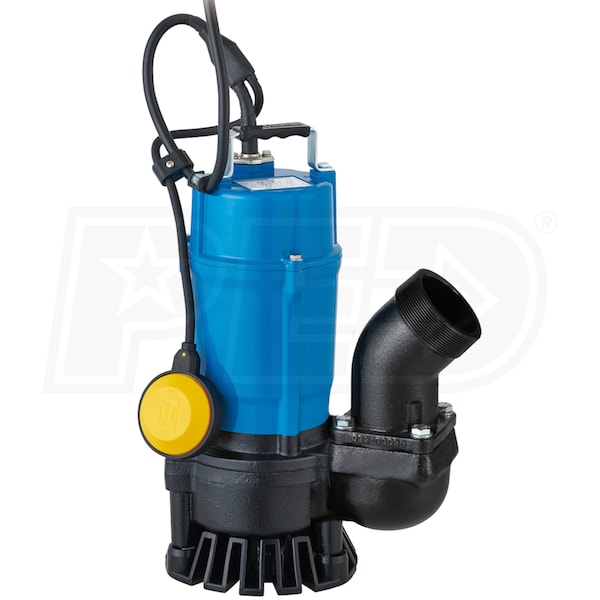

Tsurumi 140 GPM (3") High Flow Submersible Trash Pump w/ Float Switch
Model: HSZ3.75SL
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
140
Gallons
Inlet Size
N/A
Style
Trash
GPM
140 Gallons
Features
Features
- Submersible Trash Pump w/ Float Switch
- Easily handles sand, debris, and solids up to 1/4"
- For Low Head & High Volume Applications
- Ideal for use when static head is under 10'
- 1-HP 9.6-Amp Motor (26-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 8400 GPH
- Grey Iron Casting Case
- Lightweight & durable design resists corrosion
- Built-In Shaft Mounted Agitator
- Suspends solids to provide minimal wear and clogging
- Urethane Semi-Vortex Impeller
- Designed for maximum durability and performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 45° Angled Discharge Connector
- Provides a more stable installation for discharge hoses
- 32' Heavy-Duty Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
9.6
Power Cord Length
32 Feet
Pump
Gallons Per Minute
140 Gallons
Outlet Diameter
3"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
40 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
1 hp
Accessories
Float Switch
Yes
Overview
Weight
49 Pounds
Consumer Warranty
2 Years
Product Width
12.4375 Inches
Product Height
18.6875 Inches
Inlet Size
N/A
Style

GPM
140
Gallons
Inlet Size
N/A
Style
Trash
GPM
140 Gallons
Features
Features
- Submersible Trash Pump w/ Float Switch
- Easily handles sand, debris, and solids up to 1/4"
- For Low Head & High Volume Applications
- Ideal for use when static head is under 10'
- 1-HP 9.6-Amp Motor (26-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 8400 GPH
- Grey Iron Casting Case
- Lightweight & durable design resists corrosion
- Built-In Shaft Mounted Agitator
- Suspends solids to provide minimal wear and clogging
- Urethane Semi-Vortex Impeller
- Designed for maximum durability and performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 45° Angled Discharge Connector
- Provides a more stable installation for discharge hoses
- 32' Heavy-Duty Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
9.6
Power Cord Length
32 Feet
Pump
Gallons Per Minute
140 Gallons
Outlet Diameter
3"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
40 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
1 hp
Accessories
Float Switch
Yes
Overview
Weight
49 Pounds
Consumer Warranty
2 Years
Product Width
12.4375 Inches
Product Height
18.6875 Inches
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
9.6
Power Cord Length
32 Feet
Pump
Gallons Per Minute
140 Gallons
Outlet Diameter
3"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
40 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
1 hp
Accessories
Float Switch
Yes
Overview
Weight
49 Pounds
Consumer Warranty
2 Years
Product Width
12.4375 Inches
Product Height
18.6875 Inches
