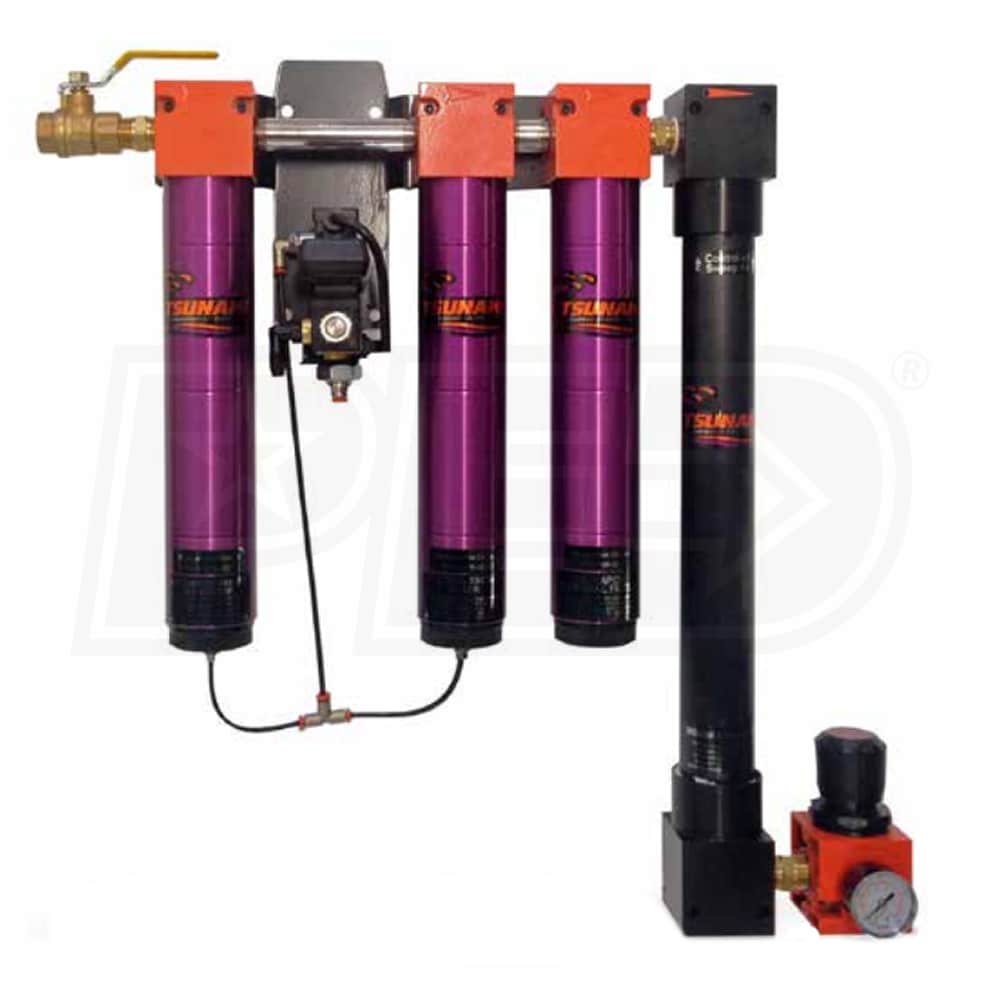

Tsunami 1/4" Precision 3-Stage Membrane Dryer (15 CFM) w/ Electronic Drain

Model:

21999-0957

Write A Review
$1,892.40
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Tsunami 1/4
Tsunami 1/4" Precision 3-Stage Membrane Dryer (15 CFM) w/ Electronic Drain
Model: 21999-0957
$1,892.40
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Membrane

Air Dryer CFM

15
  • Tsunami 3-Stage Membrane Filter Technology
  • Assures that your application is supplied with quality air
  • Meets or exceeds Class 4 ISO 8573-1: 2010 Compressed Air Contaminants and Purity Classes
  • 100% Duty Cycle Requires No Electricity
  • Delivers very dry, clean air down to -80F dew point
  • 175 PSI maximum inlet pressure & outlet pressure
  • 100F maximum inlet temperature
  • Stage 1: Water Separator
  • Filters particulate down to 10 microns
  • Removes water up to one quarter per minute
  • Stage 2: Oil Coalescing
  • Non-wicking layer collects & drains oils preventing entrapment
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • Stage 3: Activated Carbon Filter
  • Removes oil vapors down to .003 ppm
  • Eliminates odor and taste from the air
  • Final Stage: Membrane Dryer
  • Sends pretreated air through dryer
  • Clean, dry air exits through an outlet regulator
  • Easy, Low Cost Maintenance
  • Designed for point of use spray applications; prevents spots
  • 1/2" ball valve, precision regulator & gauge included
  • Automatic Electronic Drain
  • Assures proper draining of water, oil and other contaminates
  • Allows smooth, professional paint finishes
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

21999-0957
specs product image PID-108995
General Information
Product Category
Air Compressor Accessories
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Carbon Filter
Yes
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
15
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
175
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
100
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
No
Inlet Fittings
1/4"
Outlet Fittings
1/4"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
Membrane
Yes
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
16.5 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
18.5 Inches
Product Width
5.5 Inches
Product Height
24.5 Inches
Power Type
Electric
