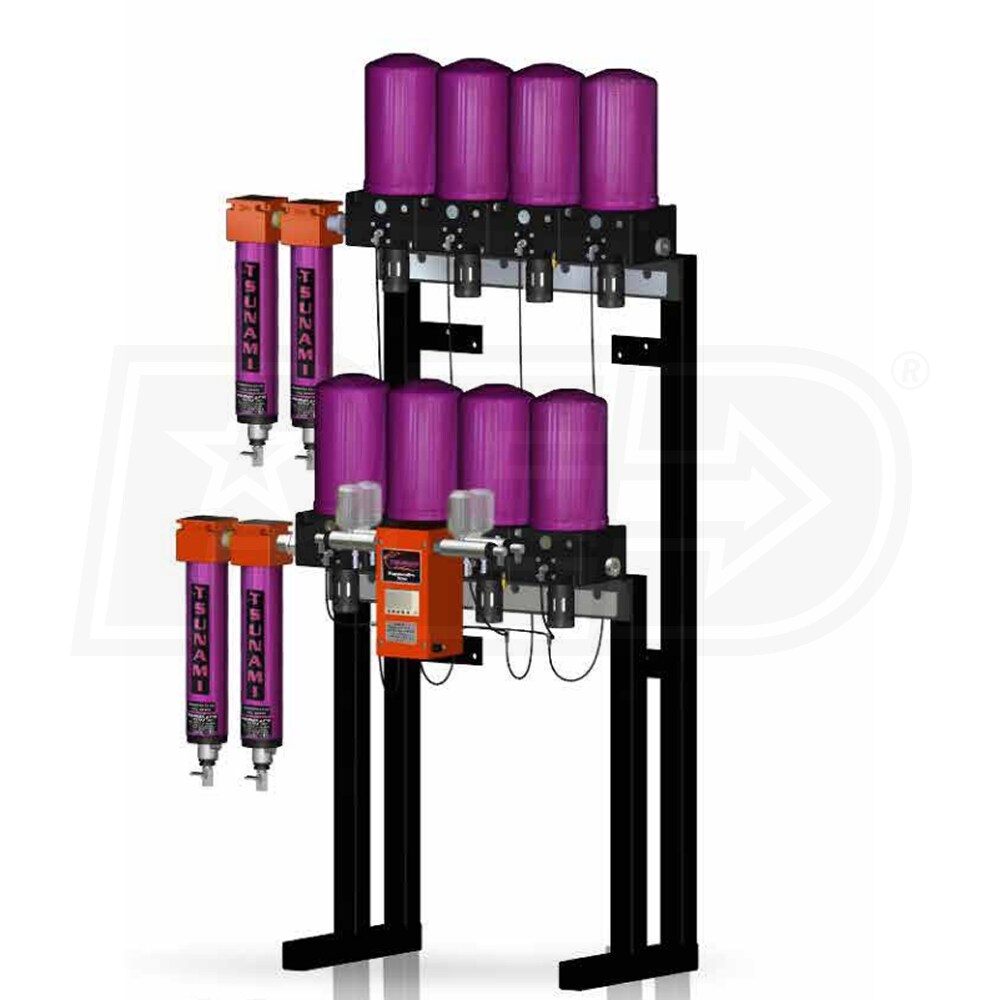

Tsunami 1" Ultra Series 50-HP Rail Mounted Regenerative Air Dryer (200 CFM) w/ Moisture Minder Pneumatic Drain

Model:

21999-0750

Write a Review
$10,488.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Free Shipping$10,488.00Buy Now
Free Freight$10,488.00Visit Site
Tsunami 1
Tsunami 1" Ultra Series 50-HP Rail Mounted Regenerative Air Dryer (200 CFM) w/ Moisture Minder Pneumatic Drain
Model: 21999-0750
$10,488.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Style

N/A

Air Dryer CFM

200
  • Ultra Series Rail-Mounted Regenerative Dryer
  • Built to withstand the largest surges of contamination
  • The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator
  • Regenerative Dryer
  • Handles up to 150F inlet air temperature
  • Delivers very dry, clean air down to -80F dew point
  • Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
  • Stage 1: Water Separator
  • Filters particulate down to 10 microns
  • Removes water up to one quarter per minute
  • Stage 2: Oil Coalescing Filter
  • Non-wicking layer collects & drains oils preventing entrainment
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • Built-In Bypass System
  • Allows the dryer to be shutoff for maintenance or service without stopping production
  • Moisture Minder Pneumatic Drains
  • Automatically eliminates water & oil in the filter sumps
  • Valve operates without pressure drop in air system
  • Programmable Logic Control (PLC)
  • Controls the cycling of the dryers for efficient operation
  • Great for mobile operations; auto paint, powder coating, etc.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

21999-0750
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
200
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
267 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
48.25 Inches
Product Width
24.25 Inches
Product Height
60.25 Inches
Power Type
Electric
