Features
Style
N/A
Dryer Voltage
115V 1-Phase
Air Dryer CFM
60
Rated HP
15
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

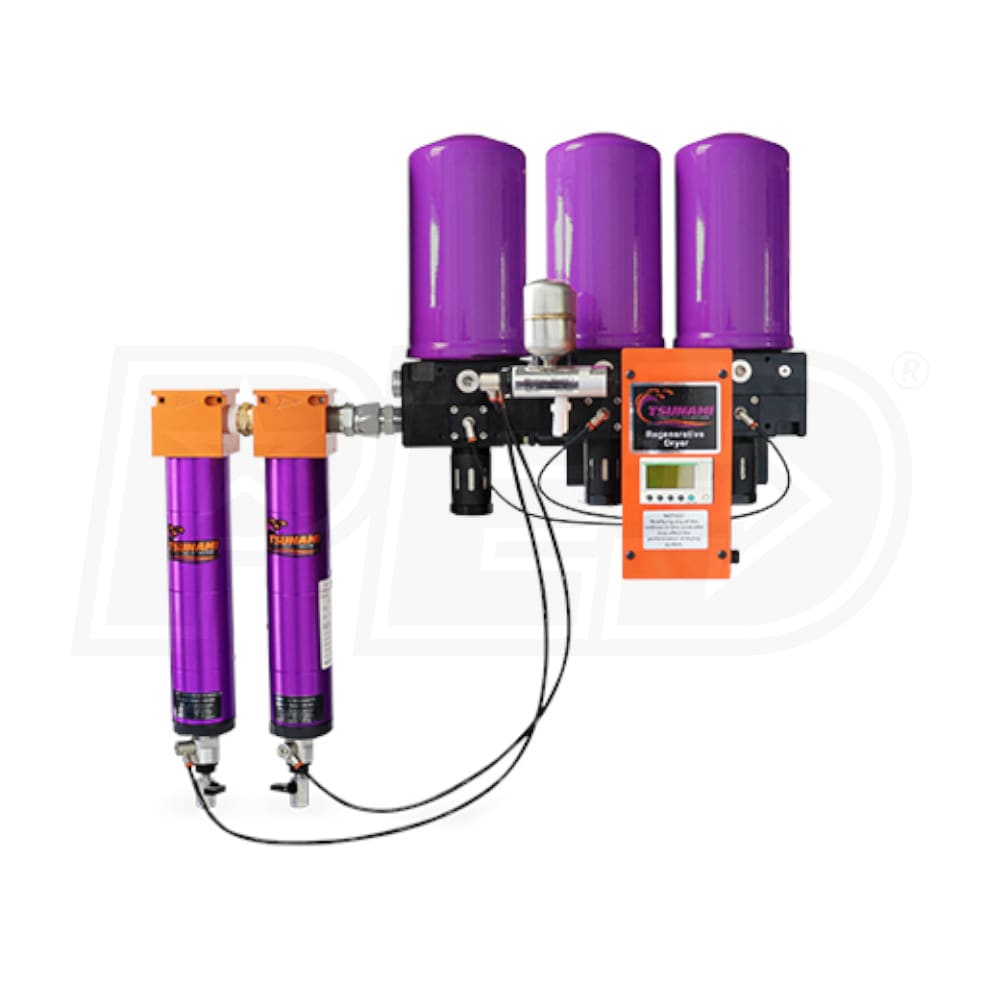

- Tsunami 60 CFM Regenerative Dryer System
- Delivers very dry, clean air down to -40°F dew point
- Handles up to 150°F inlet air temperature
- Molecular Sieve Media
- Doesn't break down like desiccant silica gel dryers
- Typical life span is 3 to 5 years before it needs replacement
- Lowest operating cost & maintenance of any dryer
- Compact, Expandable Design

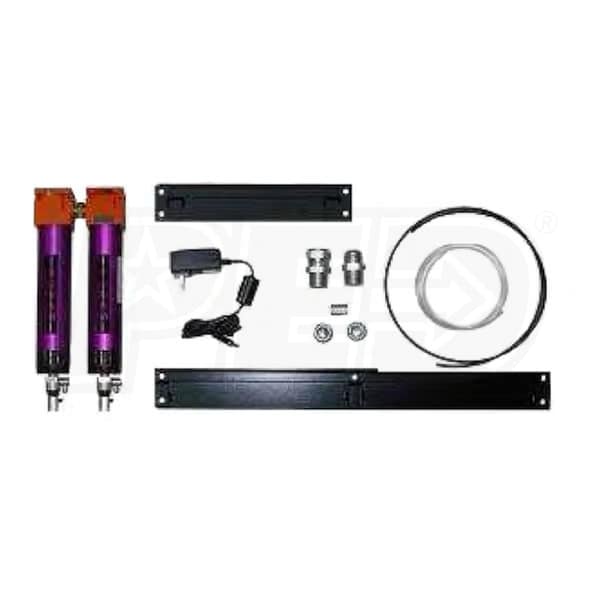

- Comes complete with pre-filter, auto drains, & mount bracket
- Installs in minutes between receiver tank and piping
- Great for mobile operations; auto paint, powder coating, etc.
- LED Display
- Indicates when maintenance is needed on oil filter element
- Programmable Logic Controller (PLC)
- Controls the cycling of the dryers for efficient operation
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- 1" Inlet & Outlet Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 110 volt outlet
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
21999-0715
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
60
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
175
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
150
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
Yes
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Rated HP
Rated HP
Possible corresponding compressor HP
15
Overview
Product Category
Air Compressor Accessories
Weight
1.1 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
23 Inches
Product Width
12 Inches
Product Height
31 Inches
Power Type
Electric
Reviews
Tsunami 21999-0715 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

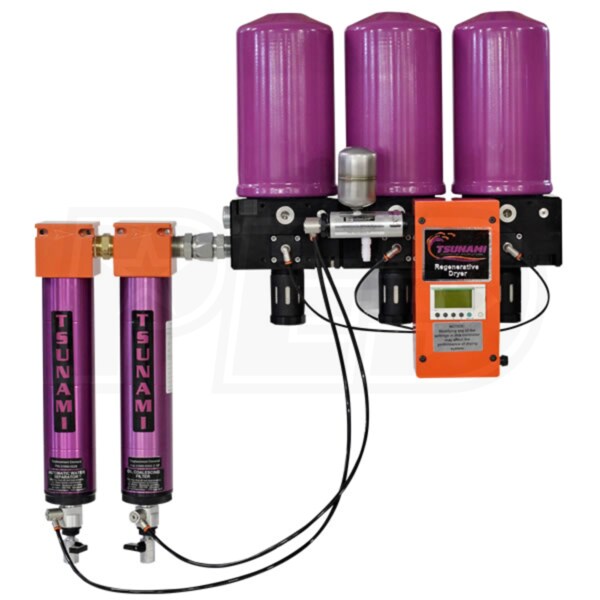

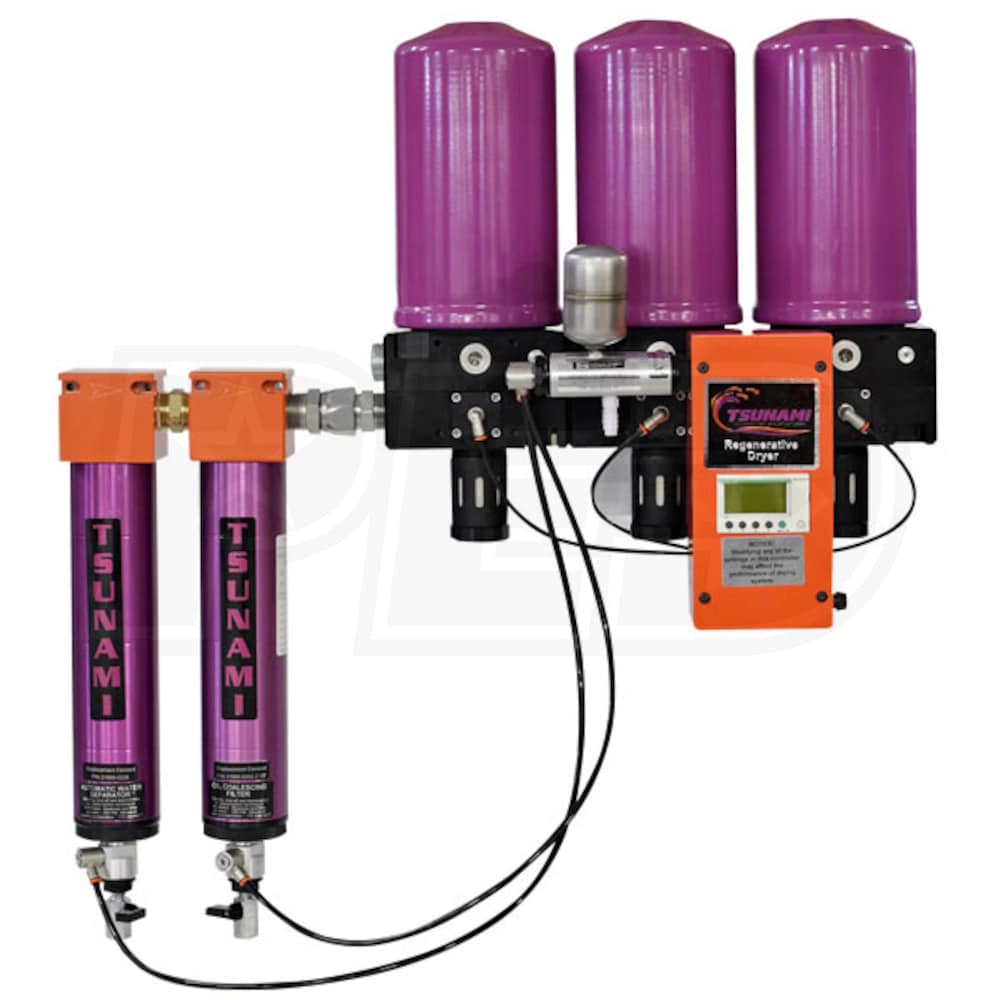

Tsunami 1" Ultra Series 15-HP Regenerative Air Dryer (60 CFM)
