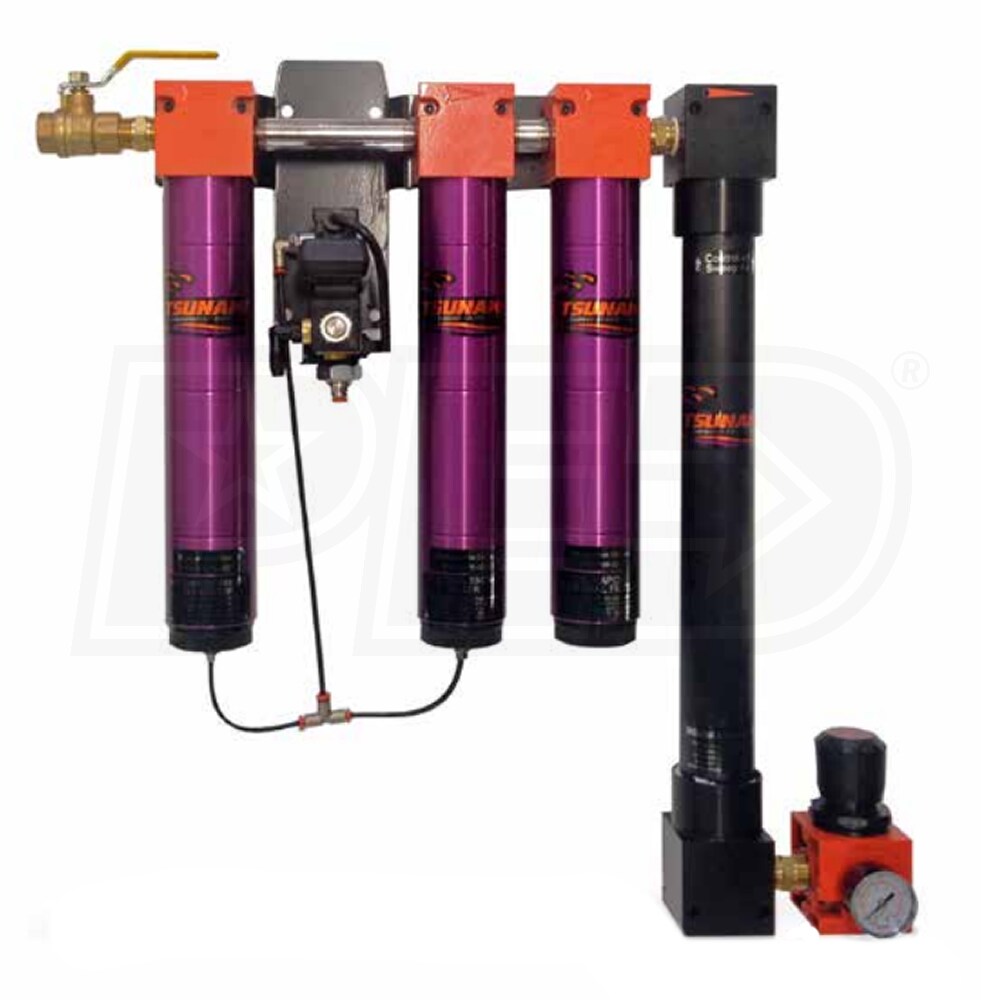

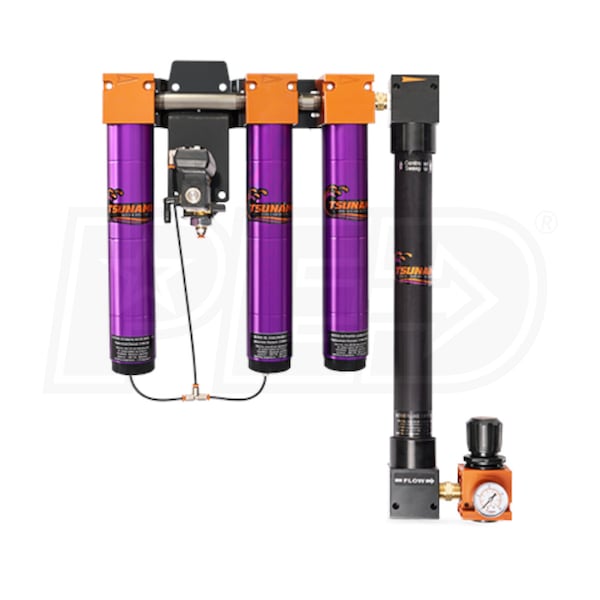

Tsunami 1/2" Precision 3-Stage Membrane Dryer (20 CFM) w/ Electronic Drain
Model: 21999-0524
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,803.20
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Shipping$1,803.20Buy Now
Free Shipping$1,803.20Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Membrane
Air Dryer CFM
20
Style
Membrane
Air Dryer CFM
20
Features
Features
  • Tsunami 3-Stage Membrane Filter Technology
  • Assures that your application is supplied with quality air
  • Meets or exceeds Class 4 ISO 8573-1: 2010 Compressed Air Contaminants and Purity Classes
  • 100% Duty Cycle Requires No Electricity
  • Delivers very dry, clean air down to -80F dew point
  • 175 PSI maximum inlet pressure & outlet pressure
  • 100F maximum inlet temperature
  • Stage 1: Water Separator
  • Filters particulate down to 10 microns
  • Removes water up to one quarter per minute
  • Stage 2: Oil Coalescing
  • Non-wicking layer collects & drains oils preventing entrapment
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • Stage 3: Activated Carbon Filter
  • Removes oil vapors down to .003 ppm
  • Eliminates odor and taste from the air
  • Final Stage: Membrane Dryer
  • Sends pretreated air through dryer
  • Clean, dry air exits through an outlet regulator
  • Easy, Low Cost Maintenance
  • Designed for point of use spray applications; prevents spots
  • 1/2" ball valve, precision regulator & gauge included
  • Automatic Electronic Drain
  • Assures proper draining of water, oil and other contaminates
  • Allows smooth, professional paint finishes
Specifications
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Carbon Filter
Yes
Air Dryer
Air Dryer CFM
20
Max PSI
175
Max Inlet Temp. Rating
100
Non-Cycling
No
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain
Yes
Regenerative
No
Membrane
Yes
High Temp
No
Overview
Weight
22 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
23.5 Inches
Product Width
5.5 Inches
Product Height
23 Inches
Power Type
Electric
