Features
Style
Membrane
Air Dryer CFM
20
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Tsunami Filter Technology
- Provides clean, dry, Grade D instrument, HEPA quality air
- 100% Duty Cycle Requires No Electricity
- 175 PSI maximum inlet pressure & outlet pressure
- Delivers 20 CFM maximum flow
- 100°F maximum inlet temperature
- Micro-Flex Element
- 3 times larger than competitor's elements
- Stage 1: Water Separator
- Removes water & particulates down to 10 micron
- Stage 2: Oil Coalescing Filter
- Removes oil aerosols down to .001 PPM
- Traps particulates down to 0.1 micron
- Final Stage: Membrane Dryer
- 3.3 CFM sweep air @ 100 PSI sends pretreated air through dryer
- Clean, dry air exits through an outlet regulator
- Easy, Low Cost Maintenance
- Designed for point of use spray applications; prevents spots
- Allows smooth, professional paint finishes
- 1/2" ball valve, precision regulator & gauge included
- Bottom Cap Has Elevated Sump
- Allows sediment to accumulate & extends filter life
- Can be easily removed to service float drain
- Threaded for optional electronic drain (sold separately)
- Integral Automatic Float Drain
- Ejects water from large drain sump
- Easy-to-service with minimal maintenance required
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
21999-0357
General Information
Product Category
Air Compressor Accessories
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
20
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
175
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
100
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
No
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
Membrane
Yes
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
16.5 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
20 Inches
Product Width
4.5 Inches
Product Height
23 Inches
Power Type
Electric
Reviews
(1)
Tsunami 21999-0357 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
Is there a minimum CFM requirement?
Steven
from Wisconsin
July 16, 2019
How-To Articles
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

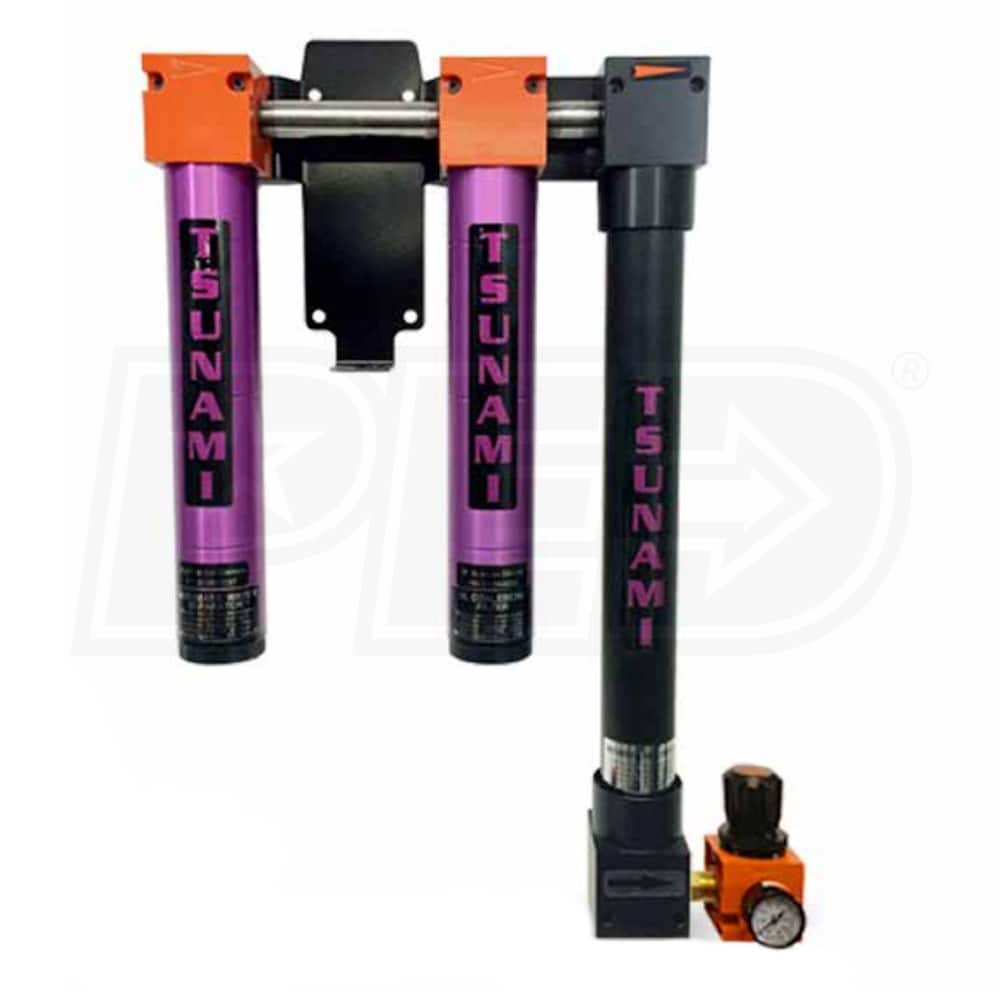

Tsunami 1/2" Painting 2-Stage Membrane Dryer (20 CFM)
