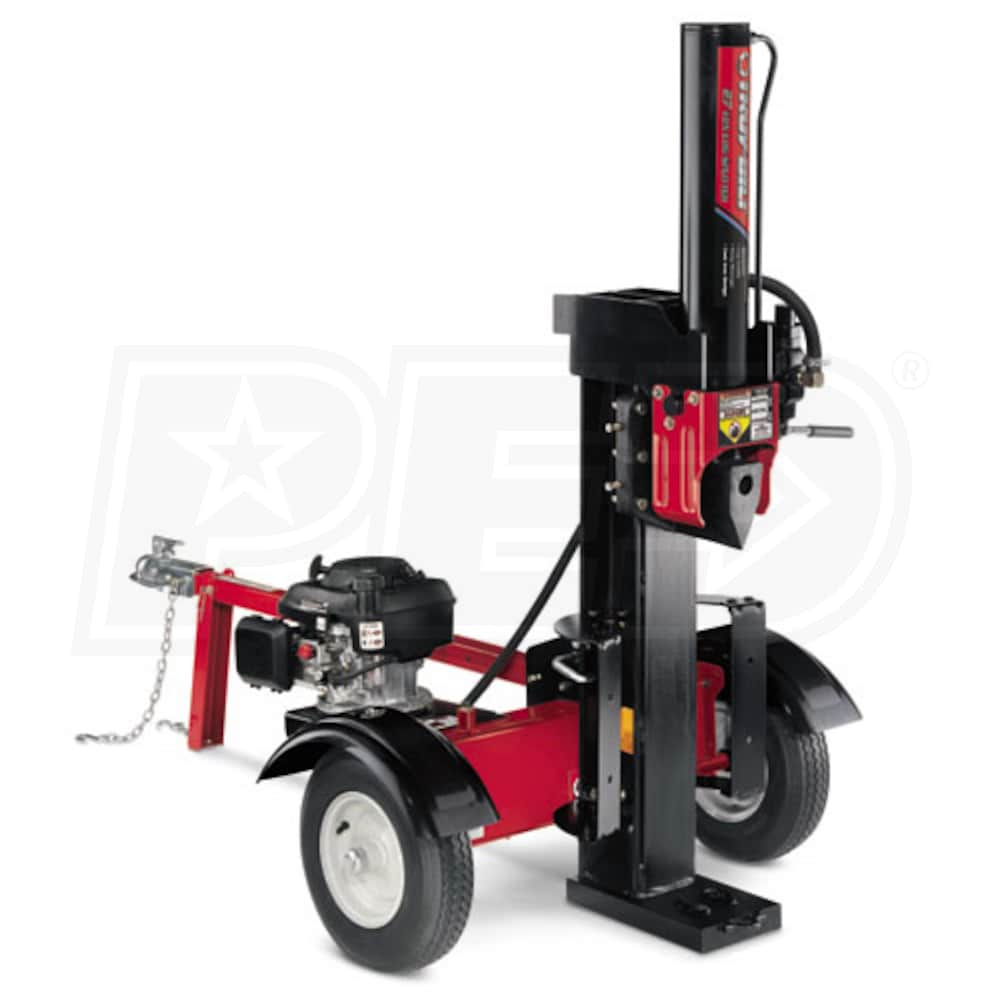

Troy-Bilt LS27™ 27-Ton Honda-Powered Gas Log Splitter

Model:

24BF572B766

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Troy-Bilt LS27™ 27-Ton Honda-Powered Gas Log Splitter
Troy-Bilt LS27™ 27-Ton Honda-Powered Gas Log Splitter
Model: 24BF572B766
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

Troy-Bilt LS27™ 27-Ton Honda-Powered Gas Log Splitter


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 27 Ton RAM Force
  • Plenty of power to split hardwood with ease
  • 160cc Honda OHV/OHC Engine
  • Easy starting, dependable and quiet
  • Cast Iron, Replaceable & Sharpenable Splitting Wedge
  • Peace of mind knowing your splitter will last a long time
  • 25 Maximum Log Capacity
  • Split those longer logs- perfect for bonfires
  • Easily Change From Vertical to Horizontal Operation
  • Never again have to lift heavy logs onto the cradle
  • Tow Hitch and Jack Stand Included
  • Makes moving your splitter that much easier
  • Coil-Wrapped Hoses
  • Built for protection and durability
  • 3 Gallon Hydraulic Reservoir (Includes Hydraulic Fluid)
  • Less time filling means more time splitting
  • Dent Resistant Polymer Fenders
  • Durable and tough; keeps crud off your splitter
  • Pre-Assembled
  • Add oil, gas and you're ready to split

Specifications

24BF572B766
specs product image PID-2845
Engine
Engine Brand
Honda GC
Starting System
Recoil Start
CC
160 CCs
Fuel Tank Size
0.81 Gallons
Low Oil Shutdown
No
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
3 Gallons
Max Pump PSI
3200 PSI
Cycle Time
19 Seconds
Tonnage
27 Tons
Overview
Assembly Required
No
Weight
607 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
47.5 Inches
Product Width
41.25 Inches
Product Height
49.5 Inches
UPC
43033520077
Wedge
Wedge Material
Cast Iron
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons

Reviews

(6)
Troy-Bilt 24BF572B766 Reviews & Ratings
oil running out of engine
By Mike
Church Hill, Maryland
Review Posted 12/16/2012
Just purchased split approximatly 1 cord of wood oil is running out of main seal on shaft to pump.
Was this review helpful?
Rating Breakdown
Features
2/5
icon-review-marker
Quality
2/5
icon-review-marker
Performance
2/5
icon-review-marker
Value
2/5
icon-review-marker
Good machine for the money
By John B.
Santa Fe, New Mexico
Review Posted 11/14/2012
This will split most of the wood I have- even big cottonwood green pieces. The power is good for size but if you are going to do a lot of splitting get a larger machine with a larger gas tank.

What would be nice would be a protector for the motor, because I have had times where wood fell on motor when working alone. And, maybe a cage for the oil filter because most filters are made like a beer can. This will keep from getting oil all over the place if it is hit buy a stray log.

LSD RESPONDS: If you'd like to pass your design ideas along to the folks at Troy-bilt you can contact them at http://troybilt.custhelp.com/app/utils/login_form/redirect/ask
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Verified Buyer
Verified Buyer
Very Pleased
By mark sessions
overgaard, Arizona
Purchased 09/16/2010 |
Review Posted 10/17/2010
I am very pleased with my splitter. It is handling all sizes of wood that I have cut.

I am trying to find a cover for it. If you have one or think the one for the other brand you carry will fit, please contact me.

LSD RESPONDS: You have two choices when covering your log splitter. The first is to protect just the engine with an Ariens Engine Cover: http://www.logsplittersdirect.com/Ariens-717015/p3511.html

It is meant to stay on while you transport your splitter, keeping road dirt out of the splitter engine.

If you want to cover the entire unit while you store it, the Speeco 22-35 Ton cover should do the trick as long as you put your splitter into the horizontal position, but it may not be an exact fit: http://www.logsplittersdirect.com/SpeeCo-47021300/p4610.html

This cover is not meant to stay on your unit while it is towed; it is only for stationary storage. Please make sure the engine is cool before putting the cover on; a hot muffler could melt it.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Good machine
By Harry
Berkeley Heights, New Jersey
Review Posted 07/16/2010
On the negative side, the first day out, one of the hydraulic hose fittings failed, making an oily mess out of 2 guys.

We reattached it with double hose clamps, refilled it, and all's well. The bolts holding the "wings" for horizontal use sheared. Removed the wings, because I only use it vertically, anyway. PITA removing the sheared bolts though. Stored the wings in the garage for the day I might sell it.

On the positive side, the Honda starts on the first or second pull all the time. The thing will split ANYTHING, including oak rounds 3 feet in diameter. Green maple 2' across is child's play.

Considering the price of wood in New Jersey, this splitter paid for itself in a year. I'm 71 and fat and out of shape and handle this machine and the logs alone. Slowly, maybe, but alone.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
First time splitter
By Bill Duncan
Belvidere, Illinois
Review Posted 05/25/2010
Never had one of these toys before , so I spent time on line checking out a lot of the less expensive - lower tonnage models out there.

This is a great machine - split an entire tree (yes, cut into logs) of very green honeysuckle. I did have a little trouble with a 20 inch diameter piece of elbow section, which in all fairness is a very dense piece of wood.

I think lower tonnage machines would have had a lot more trouble than just one piece.

The vertical operation was very much my favorite - these logs were still very heavy!

I would like to see the manufacturer put some reflective tape on back end for added safety in towing.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Broken bolt doesn't qualify for warranty
By Barry
Indianapolis, Indiana
Review Posted 11/18/2009
My friend owns the 27 ton model. We have noticed the hydraulic hose attaches immediately underneath the right sided arm which supports logs that are placed on the splitter.

MTD uses poor quality steel bolts. It only took one bolt to fail and the bracket got into the hydraulic hose severing it.

MTD alleges the splitter was "abused" and won't warranty the 200.00 repair.

Buyer beware. There is no weight prohibition in the manual but MTD certainly was quick to run for cover in order to weasel out of what clearly is a bad design. The hose should not come in under a bracket! This is simply a design flaw.
Was this review helpful?
Rating Breakdown
Features
1/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
