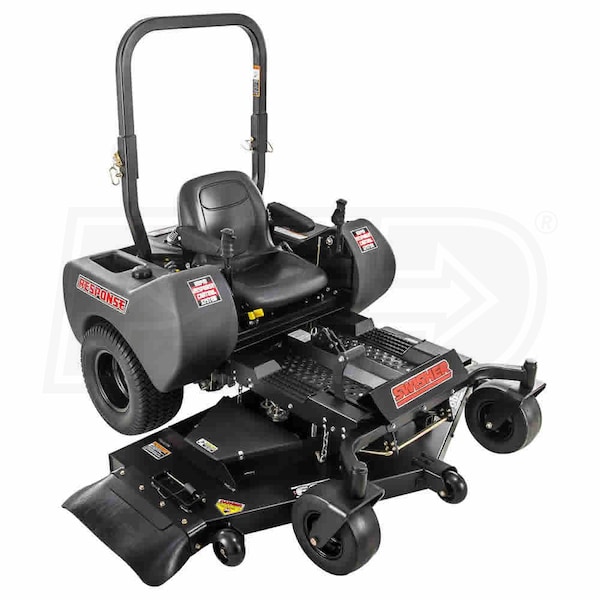

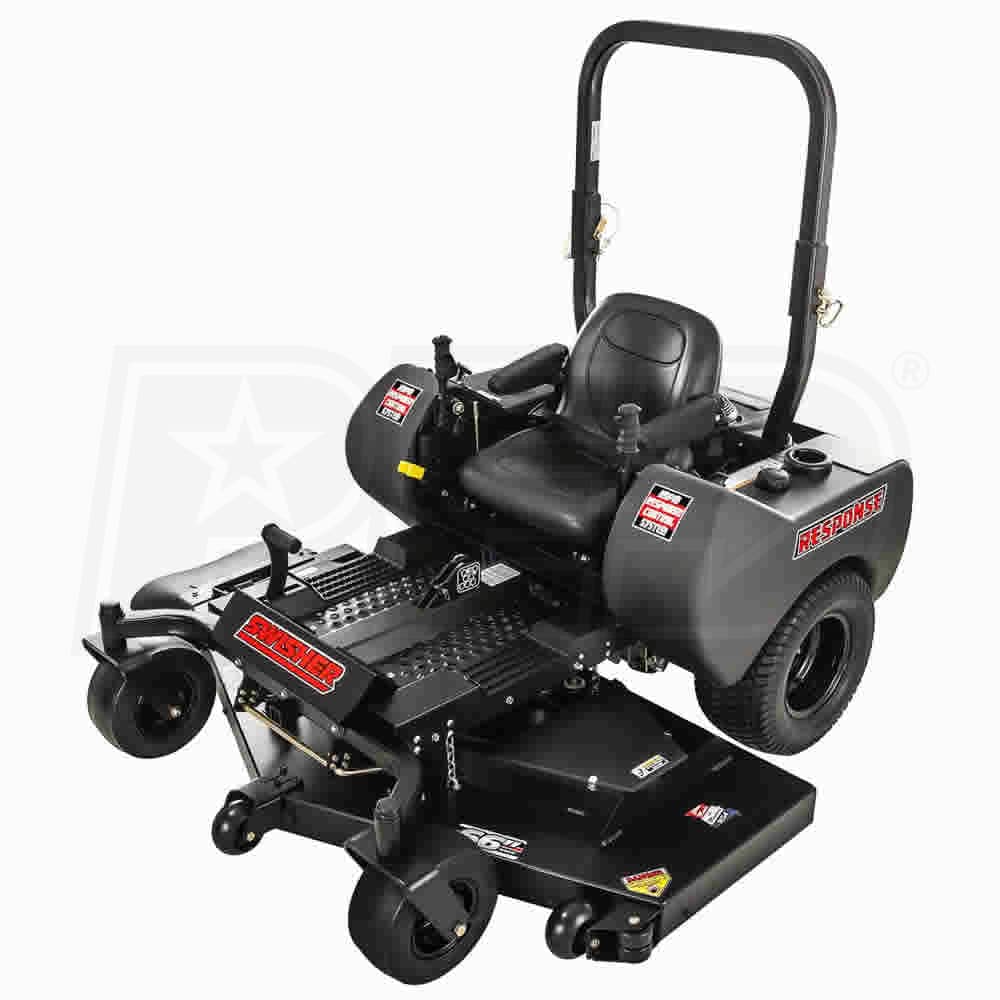

Swisher Response Gen 2 (66") 23HP Kawasaki Zero Turn Mower

Model:

ZTR2366KA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Swisher Response Gen 2 (66
Swisher Response Gen 2 (66") 23HP Kawasaki Zero Turn Mower
Model: ZTR2366KA
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

66 Cutting Inches

Engine

Kawasaki

  • Mower Is Too Large To Fit On Lift Gate For Delivery
  • Must have a loading dock or fork lift @ delivery locale to unload

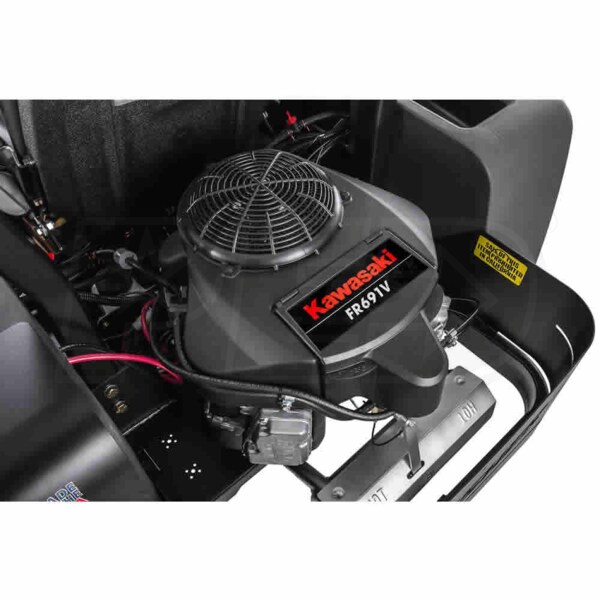

  • 23HP / 726cc Kawasaki FR691V Series V-Twin OHV Engine
  • Full pressure lubrication system with spin-on oil filter
  • Full engine wrap for added protection
  • 66-Inch, 3-Blade Fabricated Cutting Deck
  • 11-gauge steel with three G6 commercial grade blades
  • Foot assisted deck lift allows for easy adjustment of the cutting height
  • Rapid Response Control System
  • Makes steering easier; keeps your arms in a comfortable position
  • Hydro Gear 2800 Hydrostatic Transmissions
  • Ogura electric PTO clutch provides smoother transition over rough terrain
  • Delivers smooth, infinitely variable speed and direction control
  • Heavy-Duty Composite Fenders With Integrated Storage
  • Commercial grade, heavy duty, welded steel frame
  • ROPS standard; steel floor pan
  • Front and rear tow hitches
  • 12V adapter, hour meter, cup holder and battery compartment
  • High-Back Suspension Seat
  • Arm rest and seat belt for operator comfort and safety

Specifications

ZTR2366KA
specs product image PID-72614
Engine
Engine Brand
Kawasaki
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
23 HP
CC
726 CCs
Fuel Tank Size
8 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
877 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
81.0 Inches
Product Width
75.0 Inches
Product Height
68.0 Inches
UPC
728172403350
Deck
Cutting Options
Side-Discharge
Deck Material
11-Gauge
Deck Construction
Welded
Blades
3 Blades
Spindle Material
Ductile Cast Iron
Deck Positions
7 Positions
Cutting Width
66 Inches
Cutting Height
1.5-4.5 Inches
Deck Lift System
Manual Foot Operated
Engagement
Ogura Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
8 MPH
Maximum Reverse Speed
8 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT2800 Hydro Drive
Accessories
Rear Bagger
No
Engine Guard
Yes
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Trailer Hitch
Included
Mulcher Kit
No
Headlights
No
Wheels
Front Tire Size
12 x 6 Inch
Rear Tire Size
20 x 10 Inch
Tire Type
Pneumatic Wheels
