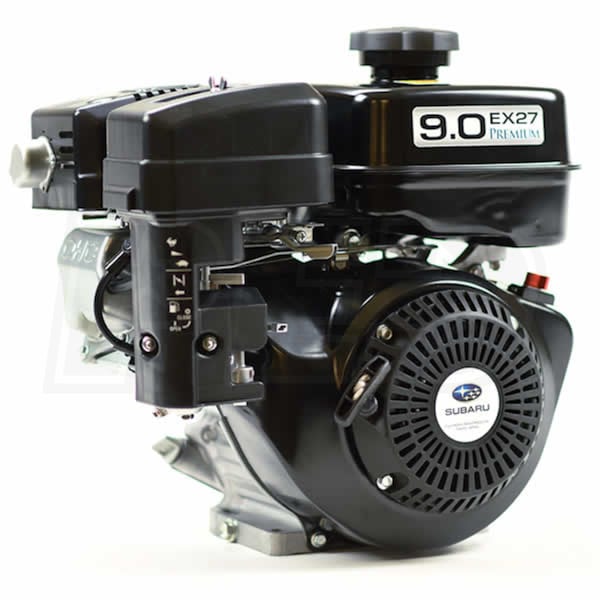

Subaru EX27 265cc 9HP OHC Horizontal Engine, 1" x 2.84" Crankshaft, 1/4" Keyway Tapped 7/16-20

Subaru EX27 265cc 9HP OHC Horizontal Engine, 1" x 2.84" Crankshaft, 1/4" Keyway Tapped 7/16-20
Model: EX270DE5013
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# EX270DE5013 - 1" x 2.84" Crankshaft, 1/4" Keyway Tapped 7/16-20
  • Subaru EX27 9HP OHC Horizontal Engine
  • Maximum efficiency, high performance and impressive power
  • Standard 5-year limited warranty for residential and commercial use
  • Chain Driven Overhead Cam Design
  • 33 percent fewer moving valve train parts than OHV engines
  • Automatic decompression system to reduce the required pulling force by 30-40 percent
  • Offers superior power and performance
  • Advanced Cooling
  • Overhead cam design maximizes cooling area and improves cooling performance
  • Allows for 360-degree airflow around both the exhaust and intake valve stem
  • Cast cooling fins are cast inside and outside crankcase to utilize every possible cooling area
  • Rugged Durability
  • Heavy duty piston rings and cast iron cylinder sleeve provide extreme durabilty
  • Case-hardened-steel timing chain resists wear and ensures precise timing for long engine life
  • Low oil level sensor for added protection
  • Pent-Roof Combustion Chamber
  • Enables optimal intake and exhaust valve placement for max performance
  • Quieter Operation
  • Optimized-capacity rigid muffler creates less overall noise
Specifications
Engine
Engine Series
Subaru EX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHC
Cooling System
Air
Dry Weight
46.31 Lbs
CC
265 CCs
HP
9 HP
Max Torque
13.74 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.95 Inches
Stroke
2.36 Inches
Compression Ratio
8.3:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
33.81 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.61 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2.84 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2.84"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
46.31 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years

Features
Features
  • Model# EX270DE5013 - 1" x 2.84" Crankshaft, 1/4" Keyway Tapped 7/16-20
  • Subaru EX27 9HP OHC Horizontal Engine
  • Maximum efficiency, high performance and impressive power
  • Standard 5-year limited warranty for residential and commercial use
  • Chain Driven Overhead Cam Design
  • 33 percent fewer moving valve train parts than OHV engines
  • Automatic decompression system to reduce the required pulling force by 30-40 percent
  • Offers superior power and performance
  • Advanced Cooling
  • Overhead cam design maximizes cooling area and improves cooling performance
  • Allows for 360-degree airflow around both the exhaust and intake valve stem
  • Cast cooling fins are cast inside and outside crankcase to utilize every possible cooling area
  • Rugged Durability
  • Heavy duty piston rings and cast iron cylinder sleeve provide extreme durabilty
  • Case-hardened-steel timing chain resists wear and ensures precise timing for long engine life
  • Low oil level sensor for added protection
  • Pent-Roof Combustion Chamber
  • Enables optimal intake and exhaust valve placement for max performance
  • Quieter Operation
  • Optimized-capacity rigid muffler creates less overall noise
Specifications
Engine
Engine Series
Subaru EX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHC
Cooling System
Air
Dry Weight
46.31 Lbs
CC
265 CCs
HP
9 HP
Max Torque
13.74 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.95 Inches
Stroke
2.36 Inches
Compression Ratio
8.3:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
33.81 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.61 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2.84 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2.84"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
46.31 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
+
Specifications
Engine
Engine Series
Subaru EX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHC
Cooling System
Air
Dry Weight
46.31 Lbs
CC
265 CCs
HP
9 HP
Max Torque
13.74 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.95 Inches
Stroke
2.36 Inches
Compression Ratio
8.3:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
33.81 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.61 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2.84 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2.84"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
46.31 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Reviews
(1)
+
Subaru EX270DE5013 Reviews & Ratings
Be the first to ask a question.
