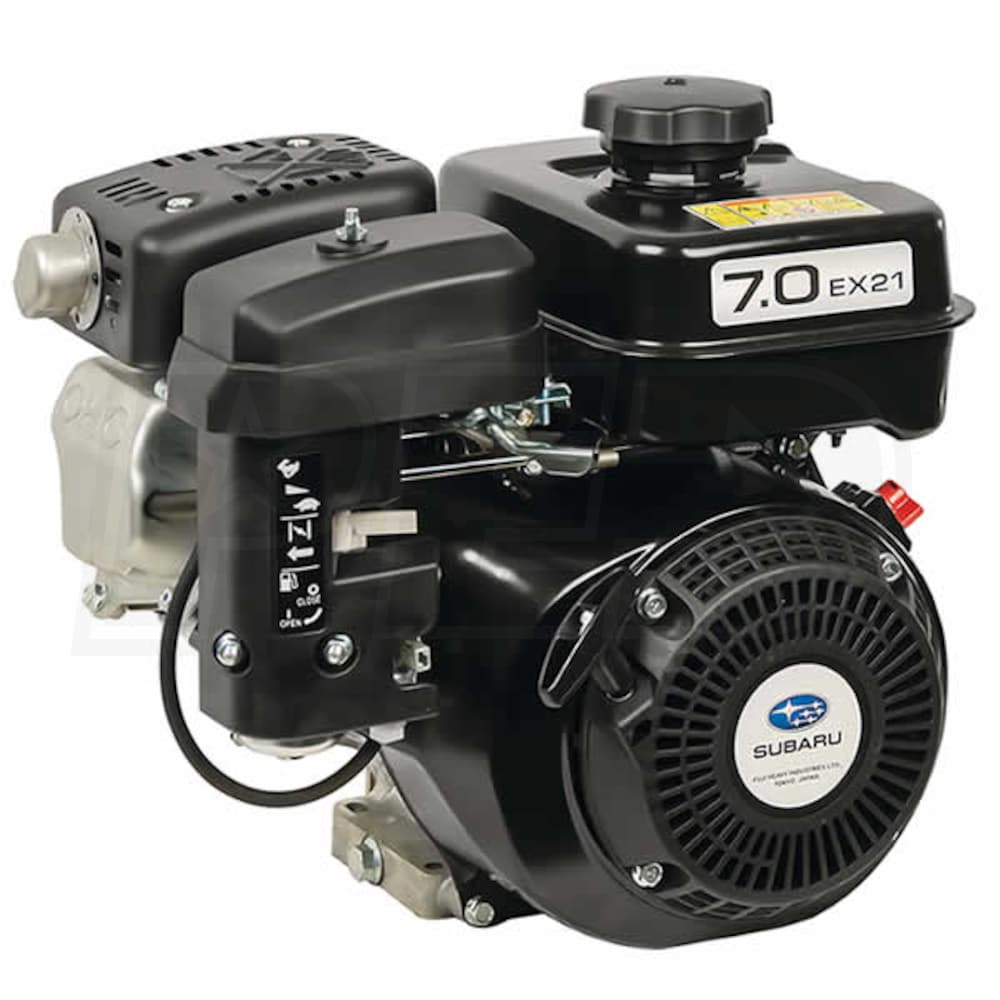

Subaru EX21 211cc 7HP OHC Horizontal Engine, 3/4" x 2.3" Crankshaft, 3/16" Keyed Tapped 5/16-24

Subaru EX21 211cc 7HP OHC Horizontal Engine, 3/4" x 2.3" Crankshaft, 3/16" Keyed Tapped 5/16-24
Model: EX210DM2121
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# EX210DM2121 - 3/4" x 2.3" Crankshaft, 3/16" Keyed Tapped 5/16-24
  • Subaru 7HP OHC Horizontal Engine
  • Offers maximum efficiency, high performance and impressive power
  • Standard 5-year limited warranty for residential and commercial use
  • Chain Driven Overhead Cam Design
  • Automatic decompression system to reduce the required pulling force by 30-40 percent
  • 33 percent fewer moving valve train parts than OHV engines
  • Offers superior power and performance
  • Durability Throughout
  • Heavy duty piston rings and cast iron cylinder sleeve provide extreme durabilty
  • Case-hardened-steel timing chain resists wear and ensures precise timing for long engine life
  • Low oil level sensor for added protection
  • Pent-Roof Combustion Chamber
  • Enables optimal intake and exhaust valve placement for max performance
  • Advanced Cooling
  • Overhead cam design maximizes cooling area and improves cooling performance
  • Allows for 360-degree airflow around both the exhaust and intake valve stem
  • Cast cooling fins are cast inside and outside crankcase to utilize every possible cooling area
  • Quieter Operation
  • Optimized-capacity rigid muffler creates less overall noise
Specifications
Engine
Engine Series
Subaru EX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHC
Cooling System
Air
Dry Weight
35.25 Lbs
CC
211 CCs
HP
7 HP
Max Torque
10.26 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.64 Inches
Stroke
2.36 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20.28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.95 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.3 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.3"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
35.25 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years

Features
Features
  • Model# EX210DM2121 - 3/4" x 2.3" Crankshaft, 3/16" Keyed Tapped 5/16-24
  • Subaru 7HP OHC Horizontal Engine
  • Offers maximum efficiency, high performance and impressive power
  • Standard 5-year limited warranty for residential and commercial use
  • Chain Driven Overhead Cam Design
  • Automatic decompression system to reduce the required pulling force by 30-40 percent
  • 33 percent fewer moving valve train parts than OHV engines
  • Offers superior power and performance
  • Durability Throughout
  • Heavy duty piston rings and cast iron cylinder sleeve provide extreme durabilty
  • Case-hardened-steel timing chain resists wear and ensures precise timing for long engine life
  • Low oil level sensor for added protection
  • Pent-Roof Combustion Chamber
  • Enables optimal intake and exhaust valve placement for max performance
  • Advanced Cooling
  • Overhead cam design maximizes cooling area and improves cooling performance
  • Allows for 360-degree airflow around both the exhaust and intake valve stem
  • Cast cooling fins are cast inside and outside crankcase to utilize every possible cooling area
  • Quieter Operation
  • Optimized-capacity rigid muffler creates less overall noise
Specifications
Engine
Engine Series
Subaru EX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHC
Cooling System
Air
Dry Weight
35.25 Lbs
CC
211 CCs
HP
7 HP
Max Torque
10.26 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.64 Inches
Stroke
2.36 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20.28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.95 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.3 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.3"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
35.25 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
+
Specifications
Engine
Engine Series
Subaru EX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHC
Cooling System
Air
Dry Weight
35.25 Lbs
CC
211 CCs
HP
7 HP
Max Torque
10.26 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.64 Inches
Stroke
2.36 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20.28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.95 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.3 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.3"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
35.25 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
