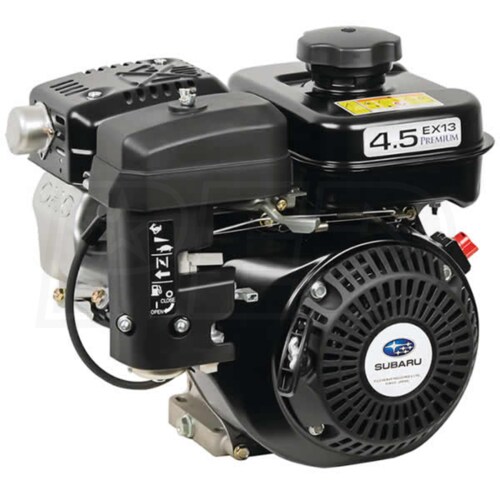

Subaru EX13 126cc 4.5HP OHC Horizontal Engine, 3/4" x 2.3" Crankshaft, 3/16" Keyway Tapped 5/16-24
Subaru EX13 126cc 4.5HP OHC Horizontal Engine, 3/4" x 2.3" Crankshaft, 3/16" Keyway Tapped 5/16-24
+
Share This Product
-
Product Description
-
Reviews
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- **Supercedes EX130DE5012** Model # EX130DE5013- 4.5HP OHC Horizontal Engine, 3/4" x 2.3" Crankshaft, 3/16" Keyway Tapped 5/16-24
- Subaru EX13 OHC Commercial Grade Engine
- Offers maximum efficiency, high performance and impressive power
- Standard 5-year limited warranty for residential and commercial use
- Chain Driven Overhead Cam Design
- Offers superior power and performance
- Automatic decompression system to reduce the required pulling force by 30-40 percent
- 33 percent fewer moving valve train parts than OHV engines
- Advanced Cooling
- Overhead cam design maximizes cooling area and improves cooling performance
- allows for 360-degree airflow around both the exhaust and intake valve stem
- Cast cooling fins are cast in the inside and outside crankcase to utilize every possible cooling area
- Pent-Roof Combustion Chamber
- Enables optimal intake and exhaust valve placement for max performance
- Durability Throughout
- Heavy duty piston rings and cast iron cylinder sleeve provide extreme durabilty
- Case-hardened-steel timing chain resists wear and ensures precise timing for long engine life
- Quieter Operation
- Optimized-capacity rigid muffler creates less overall noise
- Noise levels become a full 2 decibals lower than comparable OHV models
Specifications
Engine
Engine Series
Subaru EX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHC
Cooling System
Air
Dry Weight
30.87 Lbs
CC
126 CCs
HP
4.5 HP
Max Torque
6 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.28 Inches
Stroke
1.89 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20.28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.71 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.3 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.3"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
30.87 Pounds
Consumer Warranty
5 Years
Features
Features
- **Supercedes EX130DE5012** Model # EX130DE5013- 4.5HP OHC Horizontal Engine, 3/4" x 2.3" Crankshaft, 3/16" Keyway Tapped 5/16-24
- Subaru EX13 OHC Commercial Grade Engine
- Offers maximum efficiency, high performance and impressive power
- Standard 5-year limited warranty for residential and commercial use
- Chain Driven Overhead Cam Design
- Offers superior power and performance
- Automatic decompression system to reduce the required pulling force by 30-40 percent
- 33 percent fewer moving valve train parts than OHV engines
- Advanced Cooling
- Overhead cam design maximizes cooling area and improves cooling performance
- allows for 360-degree airflow around both the exhaust and intake valve stem
- Cast cooling fins are cast in the inside and outside crankcase to utilize every possible cooling area
- Pent-Roof Combustion Chamber
- Enables optimal intake and exhaust valve placement for max performance
- Durability Throughout
- Heavy duty piston rings and cast iron cylinder sleeve provide extreme durabilty
- Case-hardened-steel timing chain resists wear and ensures precise timing for long engine life
- Quieter Operation
- Optimized-capacity rigid muffler creates less overall noise
- Noise levels become a full 2 decibals lower than comparable OHV models
