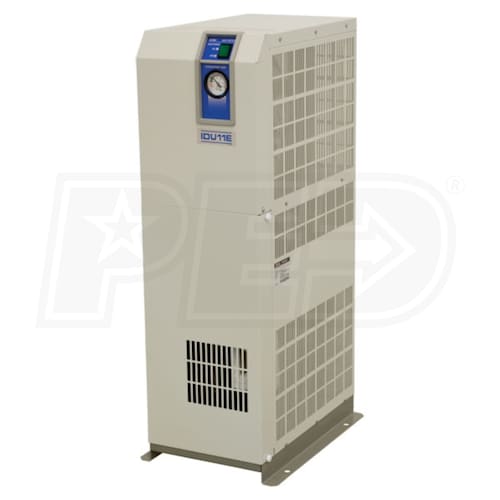

SMC 3/4" High Temperature Refrigerated Air Dryer 14.75 HP (60 CFM) 110V-1 Phase

Model:

IDU11E-10-K

Write A Review
$1,999.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

SMC 3/4
SMC 3/4" High Temperature Refrigerated Air Dryer 14.75 HP (60 CFM) 110V-1 Phase
Model: IDU11E-10-K
$1,999.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

60

Rated HP

10
  • Keep Water, Oil, And Dirt Out Of Your Compressed Air
  • Less corrosion of pipes and tools means less downtime
  • Avoid splotches & stains on your projects with proper filtration
  • Compact And Efficient
  • Great for 14 horsepower, 101 PSI compressors without aftercoolers
  • 60 CFM at 131°F PDP; high performance heat exchanger
  • Environmentally Safe
  • Uses R134a refrigerant to prevent damage to the ozone layer
  • Easy To Install
  • Uses 110V single phase power; no special wiring needed
  • Simple control system with convenient evaporator gauge
  • 3/4" connections; inlet air temp of 122°F to 175°F (50°C-80°C)
  • Outlet air pressure dew point of 50°F (10°C)
  • Stainless Steel Plate-Type Heat Exchanger
  • Improved corrosion resistance
  • Auto Drain Bowl
  • Metal bowl with a level gauge simplifies maintenance
  • Suited to medium air pressure

Specifications

IDU11E-10-K
specs product image PID-14733
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
60
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
232
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
180
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
110
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Rated HP Learn More
Rated HP
Possible corresponding compressor HP
10
Overview
Product Category
Air Compressor Accessories
Weight
104 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.1 Inches
Product Width
10.6 Inches
Product Height
35.8 Inches
Power Type
Electric
