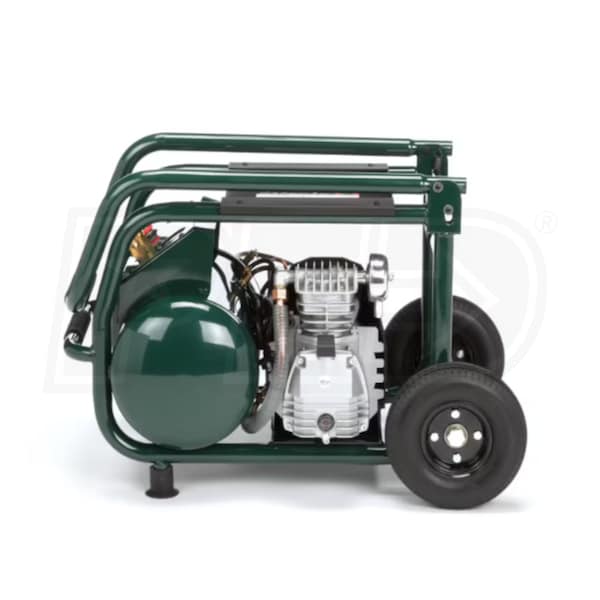

Rolair 2.5-HP 5.3-Gallon (Direct Drive) Cast-Iron Air Compressor

Rolair 2.5-HP 5.3-Gallon (Direct Drive) Cast-Iron Air Compressor
Model: VT25BIG
$419.99
Only 1 In-Stock
Ships Tuesday, Jan 23rd
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$419.99Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$419.99Visit Site
No Sales Tax* (Except IL)$419.99Visit Site
Only 1 In-Stock
Ships Tuesday, Jan 23rd
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, California, Hawaii, Massachusetts or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • 5
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Application
Consumer Grade Air Compressors
Style
Portable - Horizontal
CFM
6.5
CFM Rated @ 90 PSI
Tank Size
5.3
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 2.5 HP 3400 RPM Motor
  • Heavy duty, industrial grade 115V motor stands up to frequent use
  • 100% Duty Cycle
  • S1-rated for continuous duty; low-amp draw for demanding work
  • Contractor-Grade Single Stage Pump
  • Durable stainless reed valves & cast iron cylinder last longer
  • Ball bearings, filter/silencer, & splash lube run smooth & quiet
  • Overload Protected With Manual Reset
  • Protects the air compressor, lets you get back to work quickly
  • Portable & Powerful 110-135 PSI Operating Pressure
  • Puts out 6.5 CFM @ 90 PSI
  • Folding Cart With Heavy Duty Wheels
  • Low profile for easy job site mobility
  • Transports & stores in less space
  • Built-In Regulator With Gauges
  • 2 quick-connects run 2 tools at once
  • Factory Tested 4.3 Gallon Air Tank
  • 10 oz. crankcase is pre-filled with oil; arrives ready to work
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Amp Draw
13.8
Engine
HP
2.5
Engine Low Oil Shut-off
No
Pump
CFM
6.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Single-Stage
Max PSI
135 PSI
Oil Sight Glass
No
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
5.3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
108 Pounds
Product Length
19 Inches
Product Width
19 Inches
Product Height
37 Inches
Consumer Warranty
1 Year
UPC
662865003161
Application
Consumer Grade Air Compressors
Style
Portable - Horizontal
CFM
6.5
CFM Rated @ 90 PSI
Tank Size
5.3
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 2.5 HP 3400 RPM Motor
  • Heavy duty, industrial grade 115V motor stands up to frequent use
  • 100% Duty Cycle
  • S1-rated for continuous duty; low-amp draw for demanding work
  • Contractor-Grade Single Stage Pump
  • Durable stainless reed valves & cast iron cylinder last longer
  • Ball bearings, filter/silencer, & splash lube run smooth & quiet
  • Overload Protected With Manual Reset
  • Protects the air compressor, lets you get back to work quickly
  • Portable & Powerful 110-135 PSI Operating Pressure
  • Puts out 6.5 CFM @ 90 PSI
  • Folding Cart With Heavy Duty Wheels
  • Low profile for easy job site mobility
  • Transports & stores in less space
  • Built-In Regulator With Gauges
  • 2 quick-connects run 2 tools at once
  • Factory Tested 4.3 Gallon Air Tank
  • 10 oz. crankcase is pre-filled with oil; arrives ready to work
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Amp Draw
13.8
Engine
HP
2.5
Engine Low Oil Shut-off
No
Pump
CFM
6.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Single-Stage
Max PSI
135 PSI
Oil Sight Glass
No
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
5.3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
108 Pounds
Product Length
19 Inches
Product Width
19 Inches
Product Height
37 Inches
Consumer Warranty
1 Year
UPC
662865003161
Product Specs
+
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Amp Draw
13.8
Engine
HP
2.5
Engine Low Oil Shut-off
No
Pump
CFM
6.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Single-Stage
Max PSI
135 PSI
Oil Sight Glass
No
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
5.3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
108 Pounds
Product Length
19 Inches
Product Width
19 Inches
Product Height
37 Inches
Consumer Warranty
1 Year
UPC
662865003161
Reviews
(5)
+
Rolair VT25BIG Reviews & Ratings
Product Q&A
(1)
+
Re the Rolair VT25BIG. I blow out home plumbing systems when winterizing and want to know if I can plug this compressor into an outlet served by a 15 amp breaker and not have it trip the breaker. Thanks Darrel
Darrel Suthergreen
from Washington
October 28, 2011
Read Response +
Answer
This unit is rated as 13.8 amps, so it should be fine on a 15 amp circuit as long as it's the only thing pulling power through that circuit.

If the homeowner is running other appliances on the same circuit it could pop the breaker.

Hide Response -
