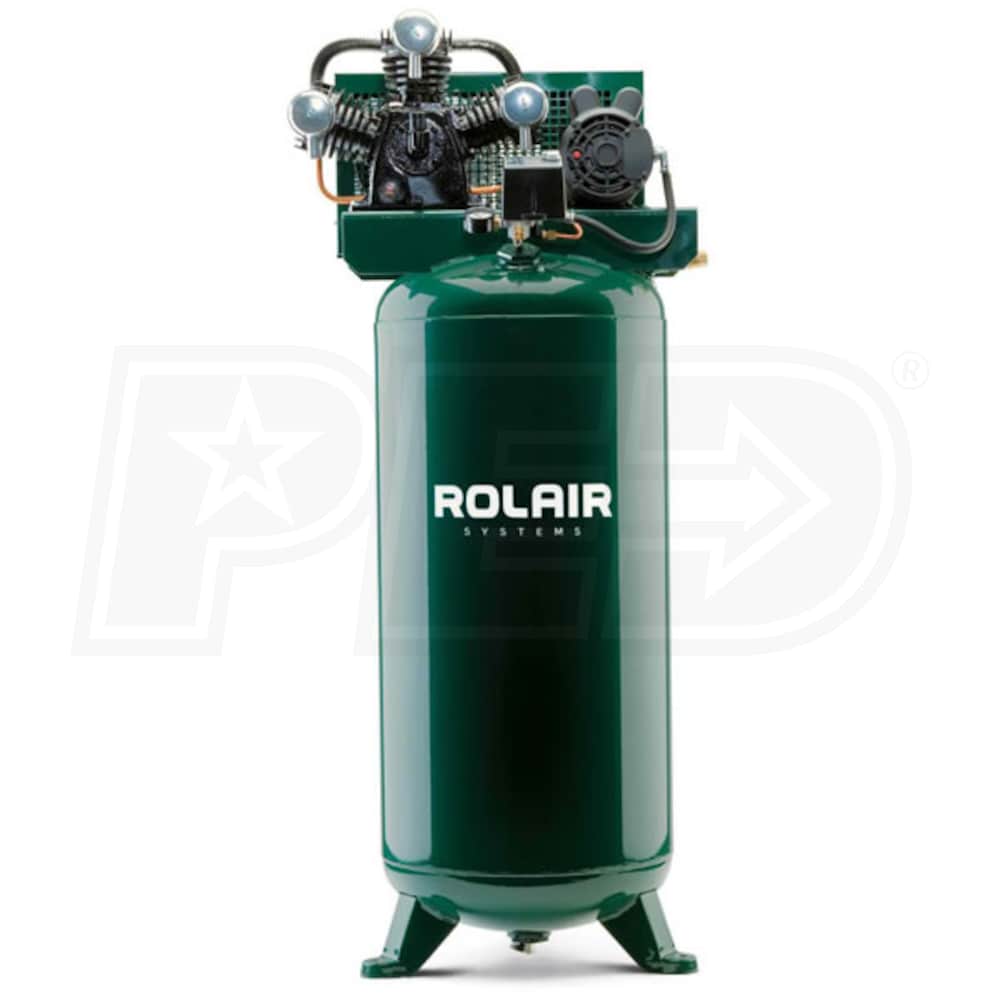

Rolair 5-HP 60-Gallon Single-Stage Air Compressor

Rolair 5-HP 60-Gallon Single-Stage Air Compressor
Our Price
Compare Prices
Shipping Info
Model: V5160PT03X
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$1,249.99

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons
+$50.00
Learn More
Extended Warranty
Excludes CA

Free Shipping$1,249.99Buy Now
Free Freight$1,249.99Visit Site
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, Massachusetts or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Consumer
Style
Single Stage 1-Phase
CFM
16.4
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
16.4 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
  • 5 HP Air Compressor Runs On 230V Single Phase Power
  • Easy to wire into your shop or garage
  • Single Stage, 1200 RPM Splash Lubricated Pump
  • 3 cast iron cylinders for durability
  • Aluminum head & crankcase for faster heat dissipation
  • Low RPMs ensure long life & trouble free performance
  • S-1 Rated For Continuous Duty Cycle
  • Plenty of power for high-demand air tools
  • Swedish Lammelar Reed Valves
  • High quality for best performance & reliability
  • Start/Stop Operation
  • Pressure switch can be set for 110-135 PSI settings
  • Automatic Unloading Device
  • Load-less starts save wear & tear on your unit
  • Easy-To-Read Pressure Gauge
  • Marked 0-200 PSI in 5lb. graduations
  • Totally Enclosed Steel Belt Guard
  • Protects the belt drive, and you
  • Intake Filter/Silencer
  • Replaceable element reduces noise
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Pump
CFM
16.4
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
298 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
20 Inches
Product Height
70 Inches
Power Type
Electric
UPC
662865002577
Grade
Consumer
Style
Single Stage 1-Phase
CFM
16.4
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
16.4 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
  • 5 HP Air Compressor Runs On 230V Single Phase Power
  • Easy to wire into your shop or garage
  • Single Stage, 1200 RPM Splash Lubricated Pump
  • 3 cast iron cylinders for durability
  • Aluminum head & crankcase for faster heat dissipation
  • Low RPMs ensure long life & trouble free performance
  • S-1 Rated For Continuous Duty Cycle
  • Plenty of power for high-demand air tools
  • Swedish Lammelar Reed Valves
  • High quality for best performance & reliability
  • Start/Stop Operation
  • Pressure switch can be set for 110-135 PSI settings
  • Automatic Unloading Device
  • Load-less starts save wear & tear on your unit
  • Easy-To-Read Pressure Gauge
  • Marked 0-200 PSI in 5lb. graduations
  • Totally Enclosed Steel Belt Guard
  • Protects the belt drive, and you
  • Intake Filter/Silencer
  • Replaceable element reduces noise
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Pump
CFM
16.4
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
298 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
20 Inches
Product Height
70 Inches
Power Type
Electric
UPC
662865002577
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Pump
CFM
16.4
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
298 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
20 Inches
Product Height
70 Inches
Power Type
Electric
UPC
662865002577
Reviews
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(2)
+−
Rolair V5160PT03X Reviews & Ratings
Product Q&A
(1)
+−
Search Product Q&A's Answered by Gabrielle, the Air Compressor Expert
icon-social-fb1
+−
How high can the kick-on and kick-off be set to on this air compressor, and what is the duty cycle?
Josh Y.
from Wisconsin
January 30, 2019
Answer
This unit comes with pressure settings preset at 105 PSI on and 135 PSI off. I would not recommend going higher than that, because you will put more stress on the pump and motor. The motor is 100% duty cycle. This is a light industrial compressor, not designed for more than an at-home shop.
