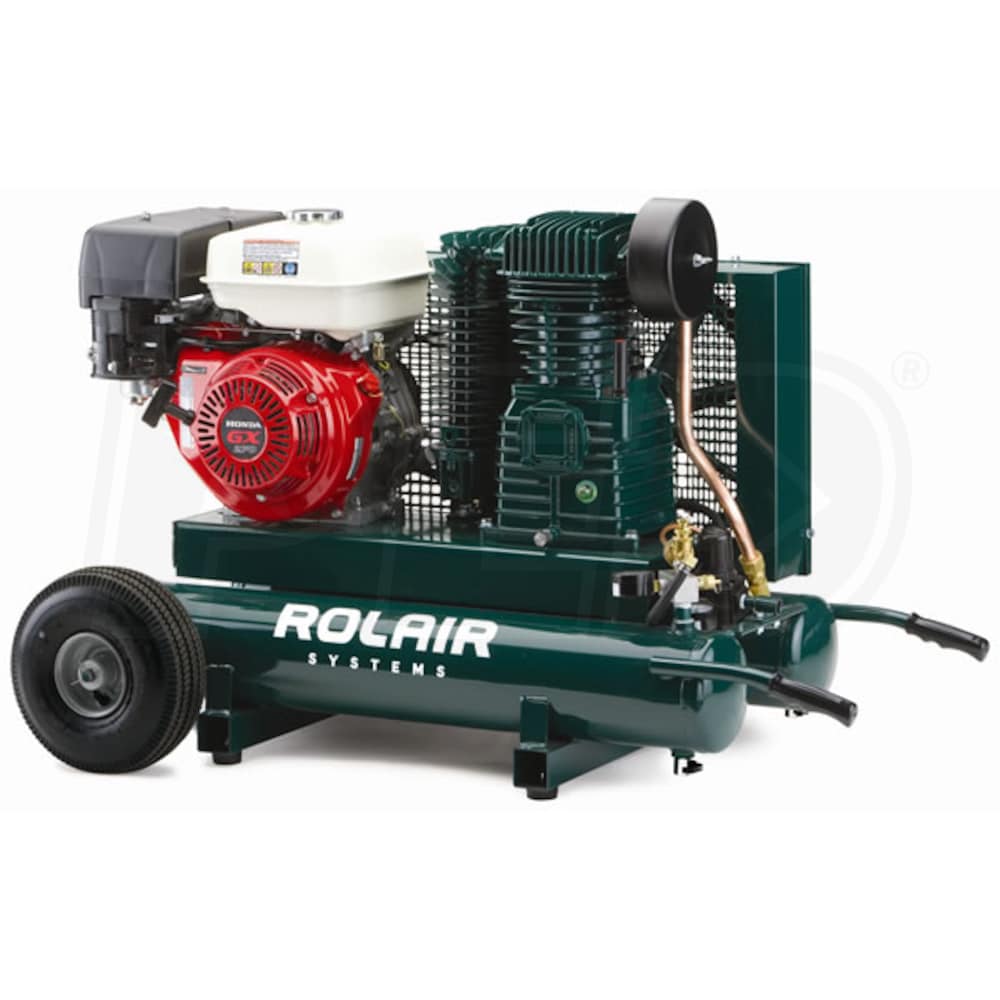

Rolair 9-HP 9-Gallon Gas Two-Stage Wheelbarrow Air Compressor w/ Honda Engine
Model: 7722HK28
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

Engine Brand

CFM
16.2
CFM Rated @ 90 PSI
Tank Size
9
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
16.2 CFM Rated @ 90 PSI
Tank Size
9 Gallons
Features
Features
- 9 HP Honda Commercial Grade GX270 Engine
- Quiet , reliable, & easy to start
- Low oil shutdown protects the engine
- Automatic Idle Control
- Provides fuel economy & long service life
- Heavy Duty 2-Stage Pump
- Cast-iron twin cylinders get the job done
- Hardened steel reed valve plates are rugged & dependable
- Multi-Finned 15 Inch Flywheel & Air-Cooled Aftercooler
- Pump runs cooler & lasts longer
- Oil Sight Gauge
- Easily maintain the proper oil level
- Totally Enclosed Steel Belt Guard
- Protects during transport and use
- Schmidt belt tightening device for easy maintenance
- Pressure Gauge
- Marked 0-300 in 5 pound graduations for accurate use
- Dual Wheels
- Balance the load for easier manuverability
Specifications
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Pump
CFM
16.2
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
150 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
9 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
276 Pounds
Consumer Warranty
1 Year
Product Length
46 Inches
Product Width
28 Inches
Product Height
30 Inches
Power Type
Gas
UPC
662865286007
Grade

Style
