Features
- 30-Amp Outdoor Power Center (200-Amp Utility)
- Feed generator power to your whole electrical panel
- Pick & choose what you want to run (up to gen capacity)
- Service Disconnect
- Quick and easy installation through your utility meter
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- Full-Size Load Center
- Can accomodate up to 16 1-Inch Breaker or 32-tandem breakers
- Flexible Connection
- Hardwire to you generator or power inlet box (Not Included)
- Heavy-Duty Copper Bus Bar For Added Reliability
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
TTH2003DR
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
29 Inches
Product Width
14.625 Inches
Product Height
4.5 Inches
UPC
815181015350
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
Reviews
Reliance Controls TTH2003DR Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
Product Questions
Answered by Jared, the Generator Expert
Hi Josh. What is the difference between this item and the Generac 6335? Are they basically the same item except for brand?
John Buchman
from Texas
September 09, 2013
I would like to put a small box outside with arm switch to go from incoming power (turn off incoming) and plug my propane generator to my house power line. Can this be done? Thank you
Bill Schoppmeyer
from New York
May 11, 2013
How-To Articles
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Power Transfer System
Power transfer systems are the easiest, most convenient way to restore power to...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

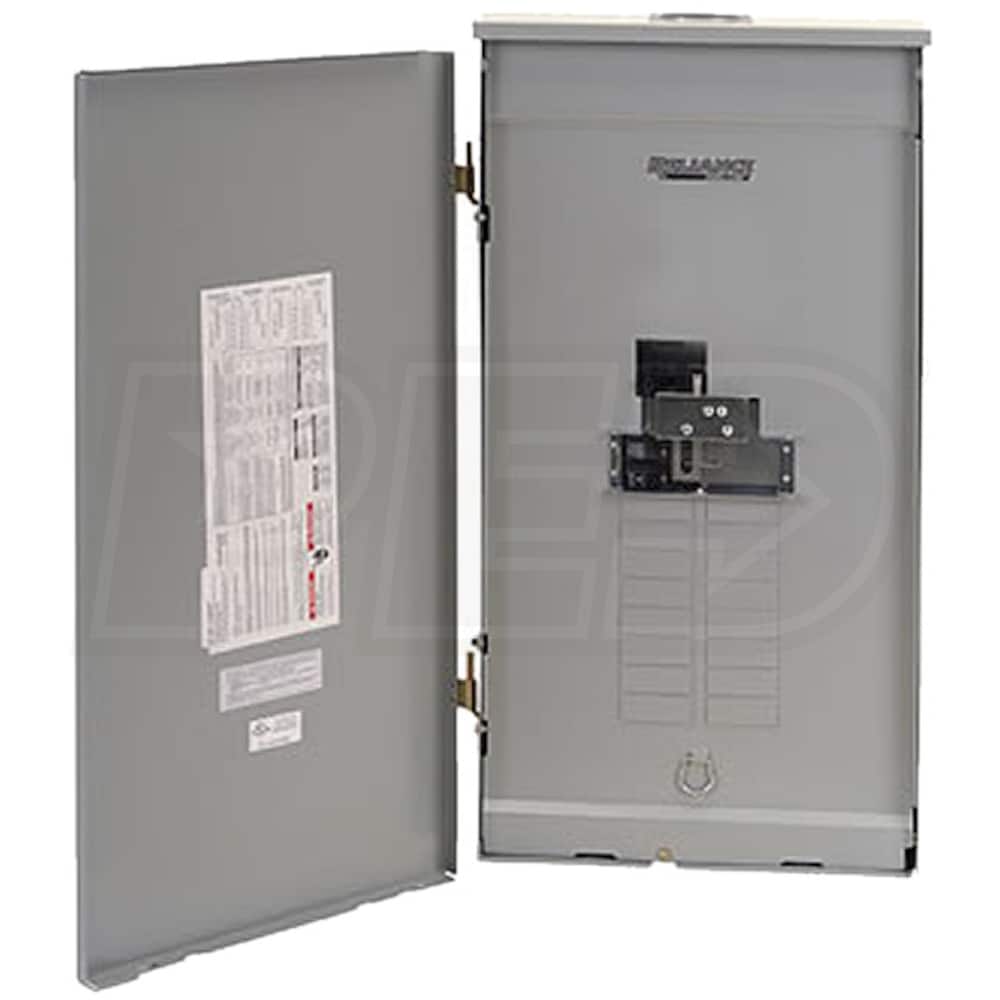

Reliance Controls 200-Amp Outdoor Power Center (30-Amp Generator)
