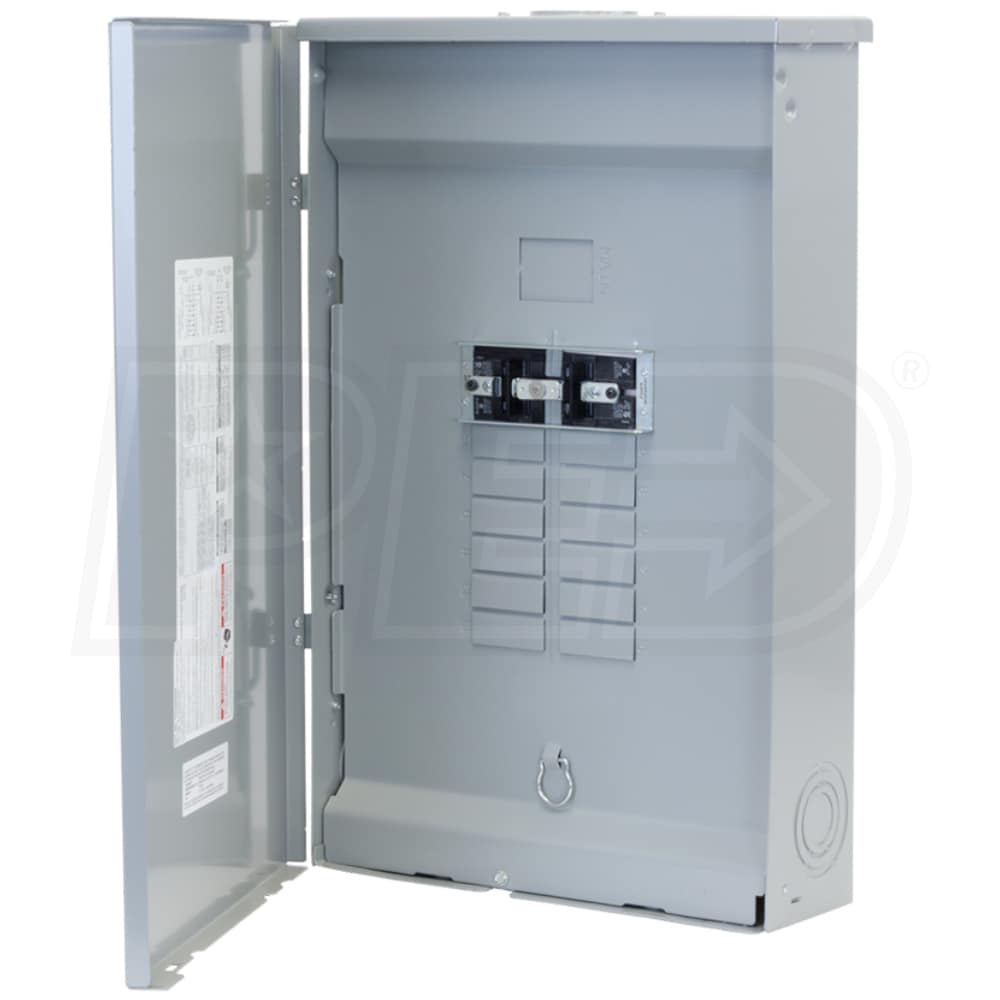

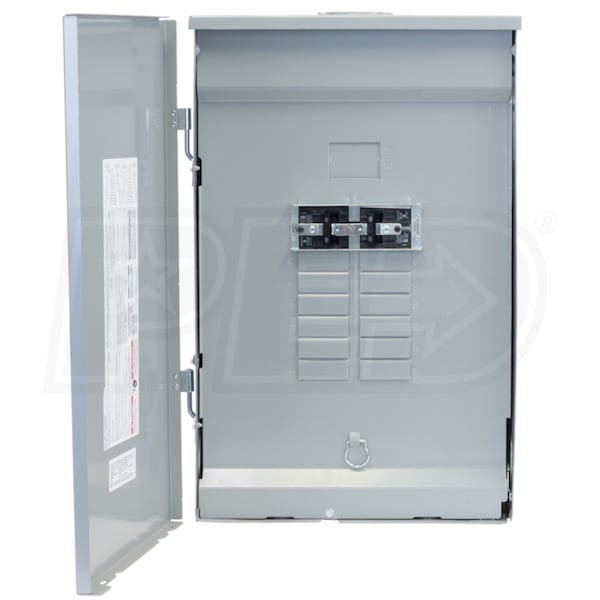

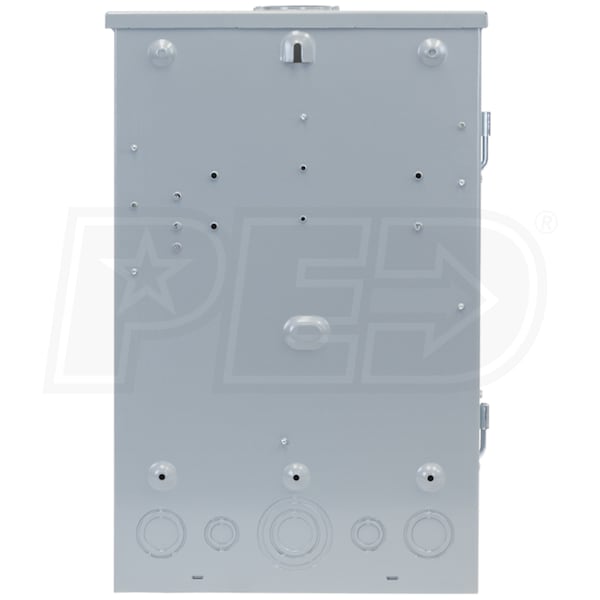

Reliance Controls® TRC-Series 100A/100A 12/20 Circuits Outdoor Manual Transfer Panel

Model:

TRC1010DR

Write A Review
$549.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Reliance Controls® TRC-Series 100A/100A 12/20 Circuits Outdoor Manual Transfer Panel
Reliance Controls® TRC-Series 100A/100A 12/20 Circuits Outdoor Manual Transfer Panel
Model: TRC1010DR
$549.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • 100-Amp (Generator) Outdoor Power Center (100-Amp Utility)
  • Feed generator power to your whole electrical panel
  • Pick & choose what you want to run (up to gen capacity)
  • Service Disconnect
  • Quick and easy installation through your utility meter
  • NEMA 3R Outdoor Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • Built-In Load Center (Breakers Not Included)
  • Can accomodate up to 12 1-Inch Breaker or 20-tandem breakers
  • Flexible Connection
  • Hardwire to you generator or power inlet box (Not Included)
  • Heavy-Duty Copper Bus Bar For Added Reliability
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

TRC1010DR
specs product image PID-176075
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
26 Pounds
Consumer Warranty
5 Years
Product Length
23 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
UPC
TRC1010DR
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
