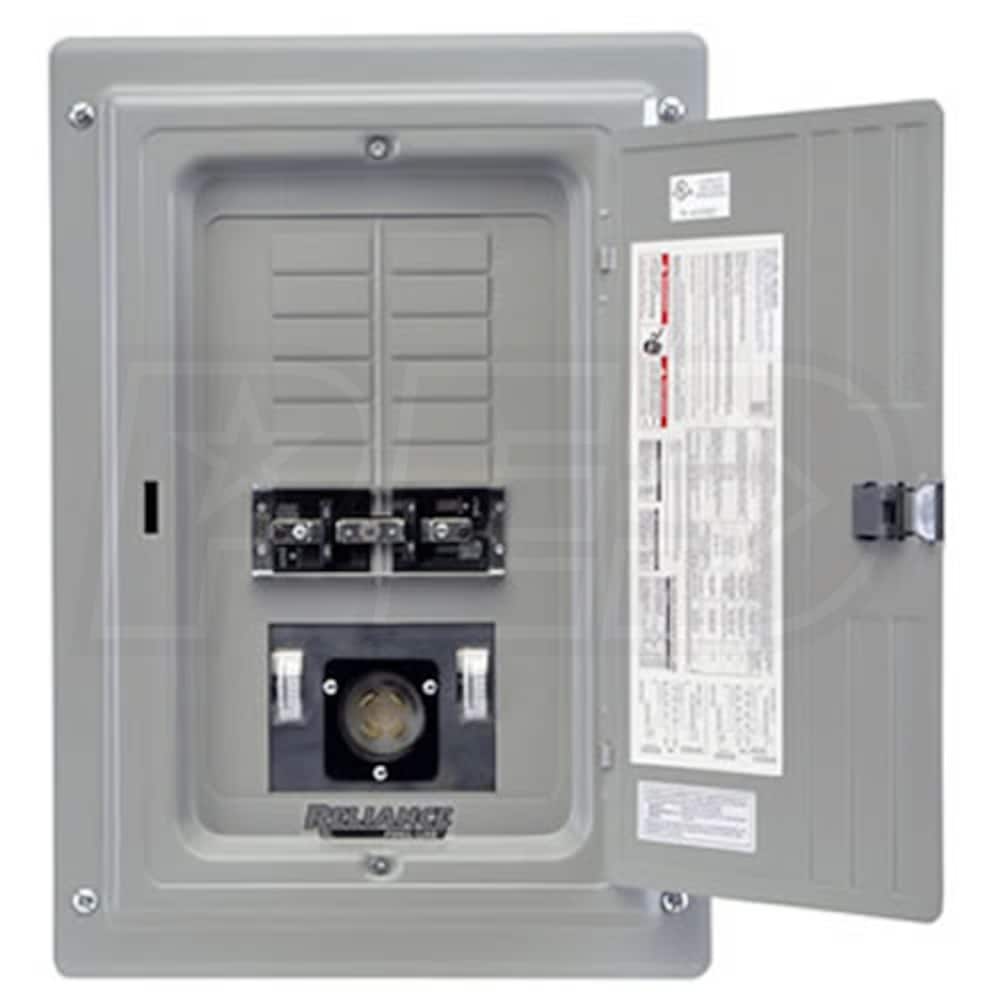

Reliance Controls 100-Amp Indoor Transfer Panel w/ 50-Amp Power Inlet

Reliance Controls 100-Amp Indoor Transfer Panel w/ 50-Amp Power Inlet
Our Price
Compare Prices
Shipping Info
Model: TRC1005A
$299.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.

$299.99Buy Now
$299.99Visit Site
$299.99Visit Site

(as of 06:02 CST - Details)Sales Tax Extra $335.53Visit Site
Factory-Direct
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Reliance Panel/Link«
  • Combines a circuit panel and a transfer switch together
  • Perfect for new construction and/or renovation
  • Plug generator cord into panel to power circuits
  • Built-in wattage meter helps you manage load
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Plugs
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
27 Pounds
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
Consumer Warranty
1 Year
UPC
851890000362
Features
Features
  • Reliance Panel/Link«
  • Combines a circuit panel and a transfer switch together
  • Perfect for new construction and/or renovation
  • Plug generator cord into panel to power circuits
  • Built-in wattage meter helps you manage load
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Plugs
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
27 Pounds
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
Consumer Warranty
1 Year
UPC
851890000362
Product Specs
+
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Plugs
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
27 Pounds
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
Consumer Warranty
1 Year
UPC
851890000362
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
What circuit breakers do I use for the branch circuits?
Mike
from Iowa
February 08, 2011
Answer
Reliance Controls transfer panels are UL listed for a number of interchangeable breakers (see label on the inside cover of the transfer panel). If the main panel has this type of breaker, relocate the selected branch circuit breakers to the transfer panel. If the breakers cannot be moved, other breakers of the same ampacity must be installed in the transfer panel.

THE FOLLOWING CIRCUIT BREAKERS ARE UL LISTED FOR USE WITH ALL TR, TT, T1 AND T2 SERIES RELIANCE CONTROLS TRANSFER PANELS:
SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP
