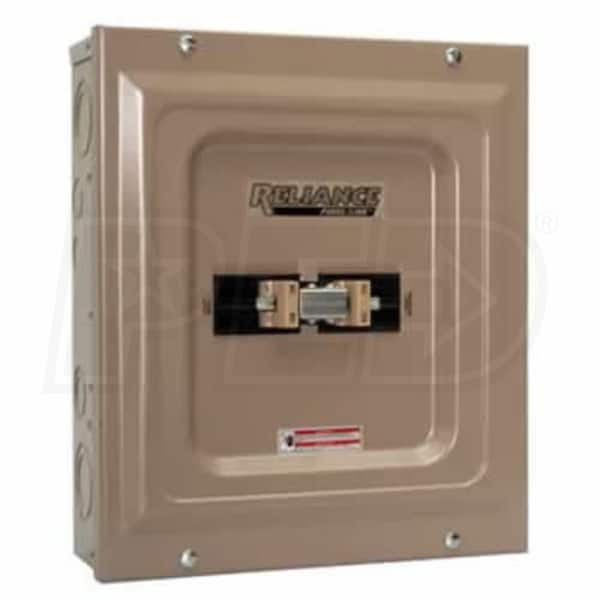

Reliance Controls TCA1006D - 100-Amp Indoor Transfer Panel for sale.

Power Equipment Direct Offers Direct Discounts and a Tax-Free Guarantee on Reliance Controls TCA1006D.


Reliance Controls 100-Amp Indoor Transfer Panel

Reliance Controls Power Equipment and Accessories
Model: TCA1006D
(Based on expert analysis, manufacturer ratings and customer reviews)
4.3 out of 54.3 out of 54.3 out of 54.3 out of 54.3 out of 5
4 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock Only 2 In-Stock
Ships Monday, Nov 27th

Estimate Arrival

No Sales Tax*
(Except IL)
No Sales Tax*
(Except IL)
Visit Site
No Sales Tax*
(Except IL)
Visit Site
Sales Tax Extra
Visit Site
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 2
  • 4
  • Articles
  • Shipping
  • Accessories
Reliance Panel/Link«
Perfect for new construction and/or renovation
Hardwire to your generator or power inlet box
Use as a main panel for a single load or to feed a sub-panel
Product Specs
120/240 Single-Phase
60 Hertz
Rated Watts
15000 Watts
Rated Amps
100 @ 240 Volts (Single Phase) Amps
Max Utility Input
100 Amps
Max Generator Input
60 Amps
Maximum Wattage
15000 Watts
UL Listed
Made in USA
12 Pounds
Product Length
13.25 Inches
Product Width
11.5 Inches
Product Height
4 Inches
Consumer Warranty
2 Years
Download Documents
Need Help? Ask Our Experts.
View Accessories For This Product.
Read Reviews
How-To Library
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Mike about the Reliance Controls TCA1006D. Sorry, no repair questions:




 Receive Weekly How-To Tips & Specials

*Required Field Submit
  2 Questions
Q: Hi Josh,
I'm not sure what is meant by single load. Does this mean a single load which could be "the house" or does mean a single leg of a 220 feed. Or to put it another way is this a SPDT or DPDT transfer switch?

by Bob from New Jersey on October 04, 2013

A: Thank you for your interest in Electric Generators Direct!

The Reliance Controls, TCA1006D is designed as a single load switch. This means that the transfer switch does not contain circuits, but rather will feed power downstream to either a branch circuit, or sub-panel. As this is rated as a service entrance, it is suitable to use for "the house" so long as that load does not exceed 100 amps. This device is a double pole, double throw system that will break one circuit prior to making the other.

by Mike, Product Expert
Q: I have a Honda EB5000X generator and I would like to know what transfer switch you would recommend I use. I know I can not run my whole home but I would like to be able to turn some things on and off as needed.
by Mark Cox from Pennsylvania on February 01, 2011

A: This transfer switch is perfect for trying to manage your panel without the limitations. The main issues would be to not overload the generator and a close eye needs to be watching the loads until you get a real feel for what you are in need of. It is recommended to include a watt meter in your design which will help monitor your usage.

This transfer switch is mounted between the meter and your existing main breaker which allows you the control of your panel.

Note: A certified electrician should be used in this type of application.
by Mike, Product Expert
Reliance Controls TCA1006D Reviews & Ratings
4 Reviews  Sort by
Nick S.
Port Richey, FL
Purchased from Power Equipment Direct
Purchased 6/22/10
5 out of 55 out of 55 out of 55 out of 55 out of 5
Love Love Love It
This is a very economical way to turn a sub-panel into your generator panel.

Per National Electrical Code, the USER gets to define what is being energized via the generator. So, you can pick and choose what circuits you want on, so long as it does not overload the capacity of your generator (including start up).

I LOVE THIS TRANSFER PANEL. Trust me, I know what I'm talking about. If you are in doubt, I have over 20 years electrical experience, just check out my credentials at... more
Was this review helpful?
Larry B.
Riverside, CA
Purchased from Power Equipment Direct
Purchased 2/22/16
4 out of 54 out of 54 out of 54 out of 54 out of 5
Transfer Switch
It does the job at a good price. No whistles or bells but works.
Larry Recommends This Reliance Controls Product
Was this review helpful?
East Bridgewater, MA
Purchased from Power Equipment Direct
Purchased 9/2/11
Total Reviews
3 Reviews
5 out of 55 out of 55 out of 55 out of 55 out of 5
Very Satisfied
Received Generac Model XG10000E on Monday Sep 19, 2011, had received 10' 50 amp power cord, inlet box and Reliance 100 amp indoor transfer switch approximately 1 weeks earlier. Didn't receive generator earlier as it was on backorder.

Electrician came over, looked at electrical configuration of the house (I have 200 amp input from street, with one breaker box in garage which handles in-law apartment and then sends 100 amp service to breaker box in cellar which powers main house). Electrician... more
Was this review helpful?
Peabody, MA
Purchased from Power Equipment Direct
Purchased 3/14/12
Total Reviews
2 Reviews
3 out of 53 out of 53 out of 53 out of 53 out of 5
Not Happy
When I ordered this unit I expected it to run properly. When I started it it kept surging. When I called for information, the help line had no answers and refereed me to a dealer in Billerica which is to far from my home for them to send anyone to check it out. The person that I talk to said that it probably is the gas, I have changed the gas to no avale. The person also said I would have to bring the unit to them for them to check it out, since I have no way to get it to them, what good is... more
Was this review helpful?
