Features
- Raintight and Bug Proof
- Easy access flanged cover
- POP-FAST™ 3/4 Inch Knockout Design
- Fast installation with 3 openings

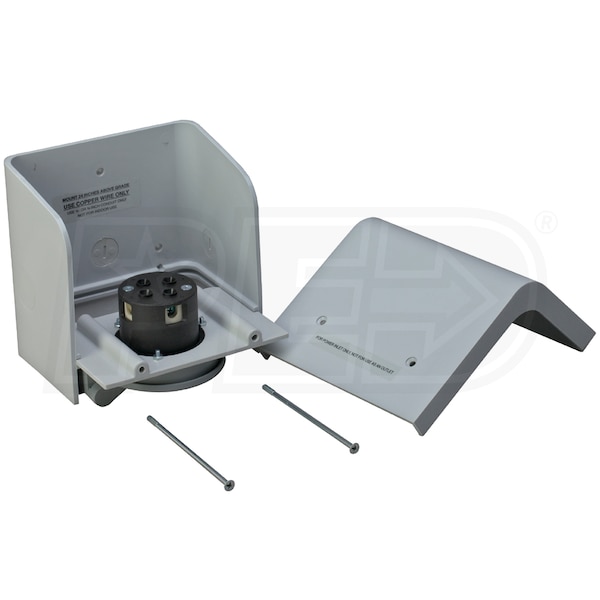

- Slide-Out Base
- 360 degree rotation for quick terminal connections
- Large 103 cu/in interior area for heavy duty wiring
- Nema 3R Enclosure
- Indoor and outdoor rated
- High impact construction
- UL Listed
- UV stabilized ABS construction
California residents see
Warning: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
PBN21
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2.5 Pounds
Consumer Warranty
2 Years
Product Length
6.25 Inches
Product Width
6.25 Inches
Product Height
4.375 Inches
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Rated Watts
2500 Watts
Rated Amps
20 Amps
Enclosure
NEMA 3R
Max Utility Input
20 Amps
Max Generator Input
20 Amps
Maximum Wattage
2500 Watts
UL Listed
Yes
Plugs
NEMA L5-20R
1
Reviews
(2)
Reliance Controls PBN21 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jared, the Generator Expert
My 3,200 watt/4000 watt surge generator has a receptacle for a L5-30 120Volt 30amp twist lock. It has 3 prongs. Do you have a transfer box with those requirements. I saw a L5-20 transfer box but I don't think that is large enough, it says max. watt 2,500. Well it work? Or do you have one that works for this generator?
Daniel R. Swenson
from Missouri
March 02, 2011
How-To Articles
How to Winterize Your Standby Generator
A winter power outage is no picnic, especially during a sub-zero arctic blackou...
How to Pick the Perfect Gen-Cord
The most common way to use a portable electric generator is to place it outdoors...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

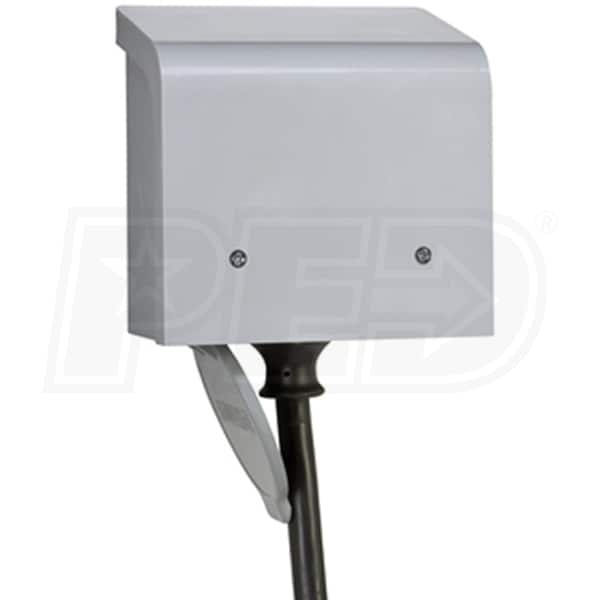

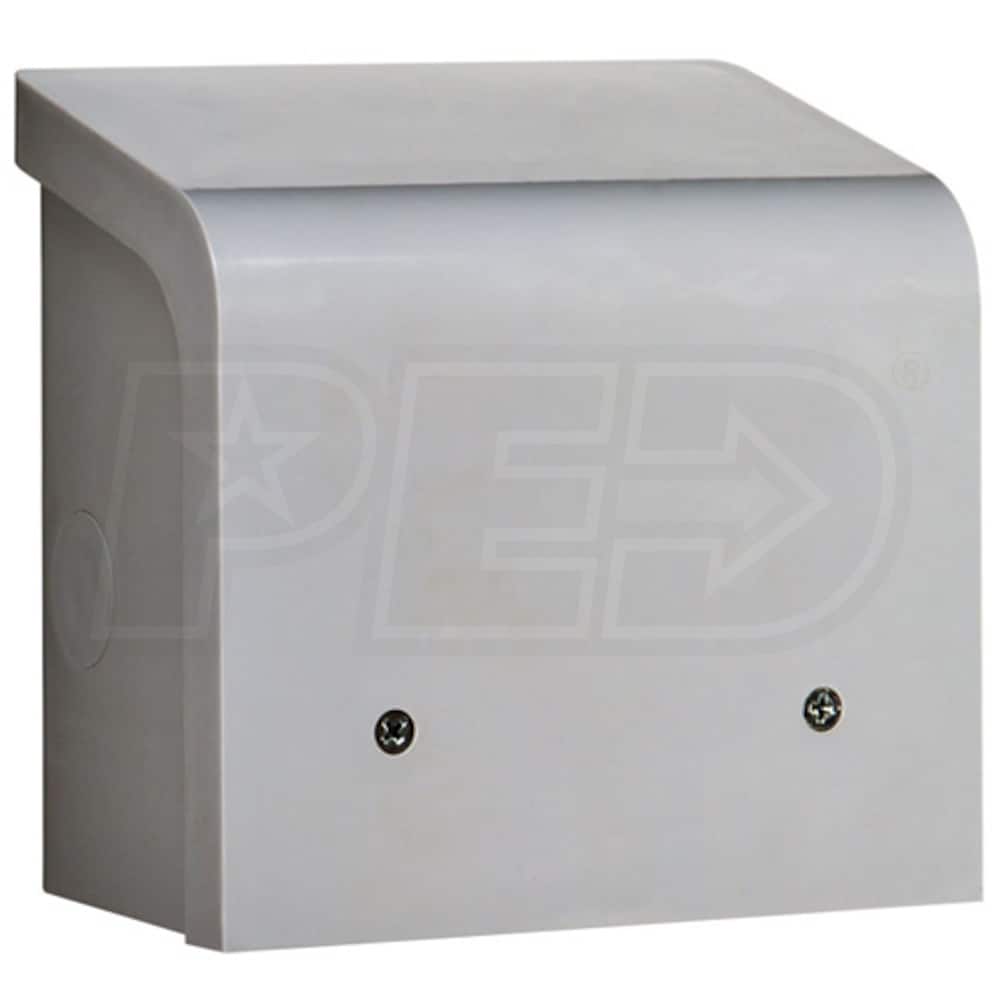

Reliance Controls 20-Amp (3-Prong) Power Inlet Box (Non-Metallic) 125V
