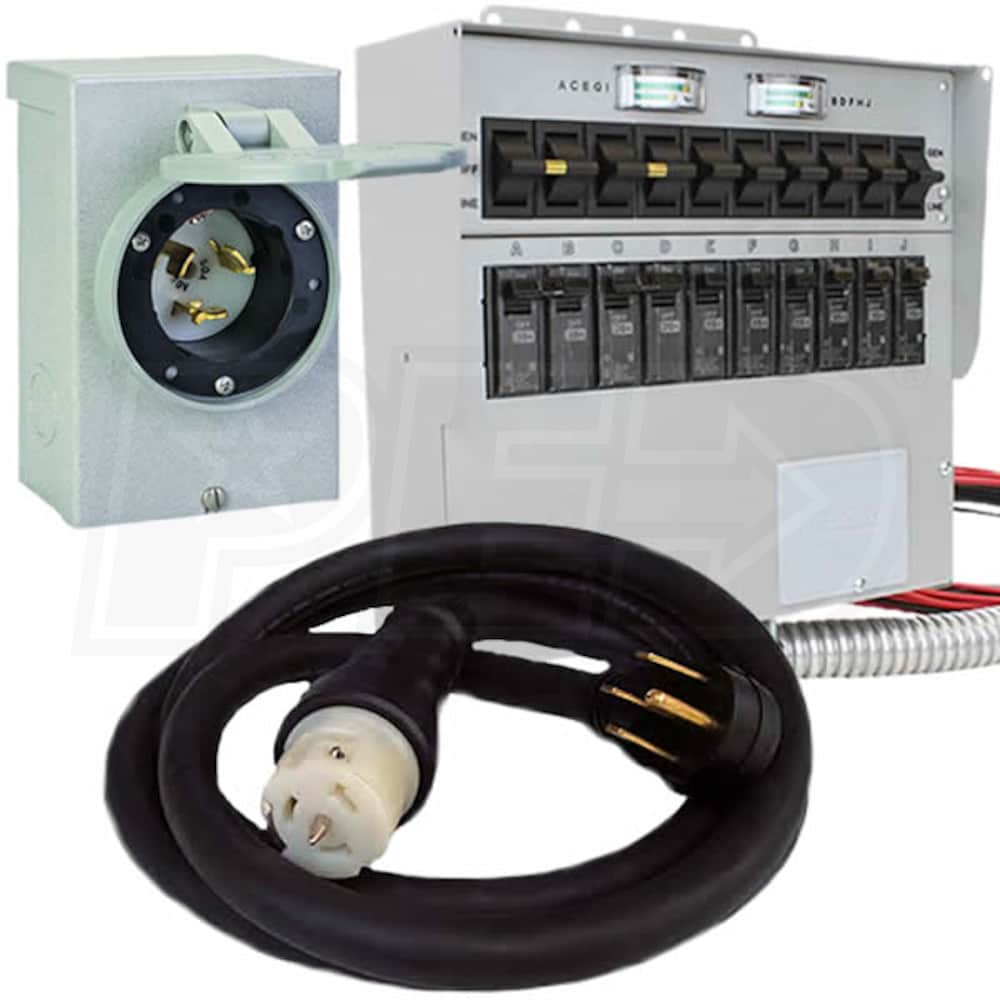

Reliance Controls 50-Amp (120/240V 10-Circuit) Power Transfer System w/ Interchangeable Breakers

Reliance Controls 50-Amp (120/240V 10-Circuit) Power Transfer System w/ Interchangeable Breakers
Our Price
Compare Prices
Shipping Info
Model: EGD-Q510KIT
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews (5)
Write A Review
$714.28

Only 2 In-Stock
Ships Monday, Oct 21st

In-Stock $714.28Buy Now
In-Stock $714.28Visit Site
$714.28Visit Site
Only 2 In-Stock
Ships Monday, Oct 21st
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • 50-Amp (120/240V 10-Circuit) Power Transfer System
  • Everything but the electrician and generator
  • Safest Way to Distribute Power
  • Eliminates dangerous back-feeds and electrical overloads
  • Standard Circuits
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Versatile Design w/ Interchangeable Breakers
  • You determine the right combination for your application
  • Built-In Wattage Meter
  • Track power input to ensure proper load balancing

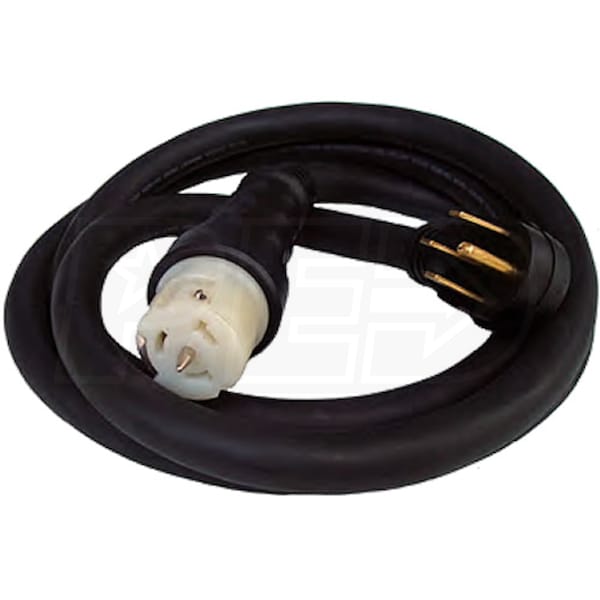

  • 25-Foot 50-Amp Straight Blade Power Cord By Generac
  • Flexible design male (L14-50) & female (CS6364/5) ends
  • 50-Amp Twistlock Power Inlet Box
  • Rain-tight design w/ flip-lid keeps dirt and debris out
  • Generous wiring space that facilitates rough-in
  • Kit Includes:
  • 50-Amp (120/240V 10-Circuit) Manual Transfer Switch
  • 50-Amp (25-Foot) Generator Power Cord
  • 50-Amp (Twistlock) Power Inlet Box
  • UL Listed & Certified for use by Underwriter Laboratories
  • Product Includes

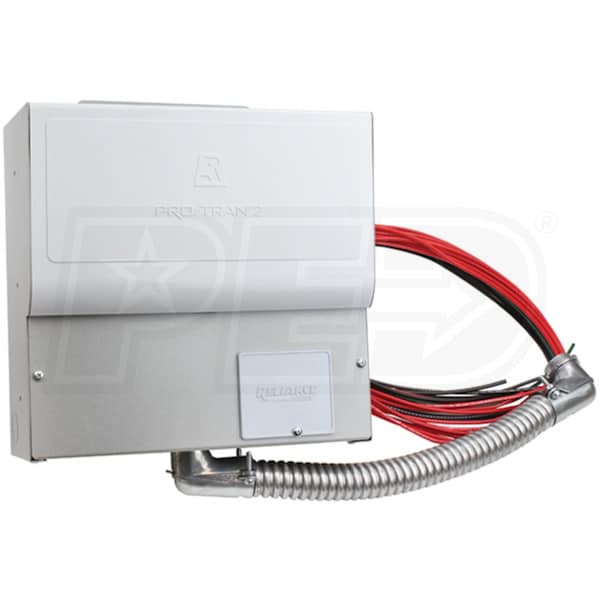

    • (1) Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A510C)
    • (1) Generac 6389 - 50-Amp (25-Foot) Generator Power Cord w/ Straight Blade (6389)
    • (1) Reliance Controls 50-Amp Power Inlet Box w/ Flip-Lid (PB50)
Specifications
Plugs
NEMA 14-50R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
47 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
A510C Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
6389 Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Maximum Wattage
12500 Watts
Overview
Weight
17 Pounds
Consumer Warranty
2 Years
Product Length
300 Inches
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
PB50 Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
2.5 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
6 Inches
Product Width
4 Inches
Product Height
3 Inches
Plugs
CS6369 - 50-Amp Twistlock
1
Features
Features
  • 50-Amp (120/240V 10-Circuit) Power Transfer System
  • Everything but the electrician and generator
  • Safest Way to Distribute Power
  • Eliminates dangerous back-feeds and electrical overloads
  • Standard Circuits
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Versatile Design w/ Interchangeable Breakers
  • You determine the right combination for your application
  • Built-In Wattage Meter
  • Track power input to ensure proper load balancing
  • 25-Foot 50-Amp Straight Blade Power Cord By Generac
  • Flexible design male (L14-50) & female (CS6364/5) ends
  • 50-Amp Twistlock Power Inlet Box
  • Rain-tight design w/ flip-lid keeps dirt and debris out
  • Generous wiring space that facilitates rough-in
  • Kit Includes:
  • 50-Amp (120/240V 10-Circuit) Manual Transfer Switch
  • 50-Amp (25-Foot) Generator Power Cord
  • 50-Amp (Twistlock) Power Inlet Box
  • UL Listed & Certified for use by Underwriter Laboratories
  • Product Includes
    • (1) Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A510C)
    • (1) Generac 6389 - 50-Amp (25-Foot) Generator Power Cord w/ Straight Blade (6389)
    • (1) Reliance Controls 50-Amp Power Inlet Box w/ Flip-Lid (PB50)
Specifications
Plugs
NEMA 14-50R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
47 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
A510C Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
6389 Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Maximum Wattage
12500 Watts
Overview
Weight
17 Pounds
Consumer Warranty
2 Years
Product Length
300 Inches
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
PB50 Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
2.5 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
6 Inches
Product Width
4 Inches
Product Height
3 Inches
Plugs
CS6369 - 50-Amp Twistlock
1
Product Specs
+
Specifications
Plugs
NEMA 14-50R
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
47 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
A510C Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
6389 Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Maximum Wattage
12500 Watts
Overview
Weight
17 Pounds
Consumer Warranty
2 Years
Product Length
300 Inches
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
PB50 Specifications+
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
2.5 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
6 Inches
Product Width
4 Inches
Product Height
3 Inches
Plugs
CS6369 - 50-Amp Twistlock
1
